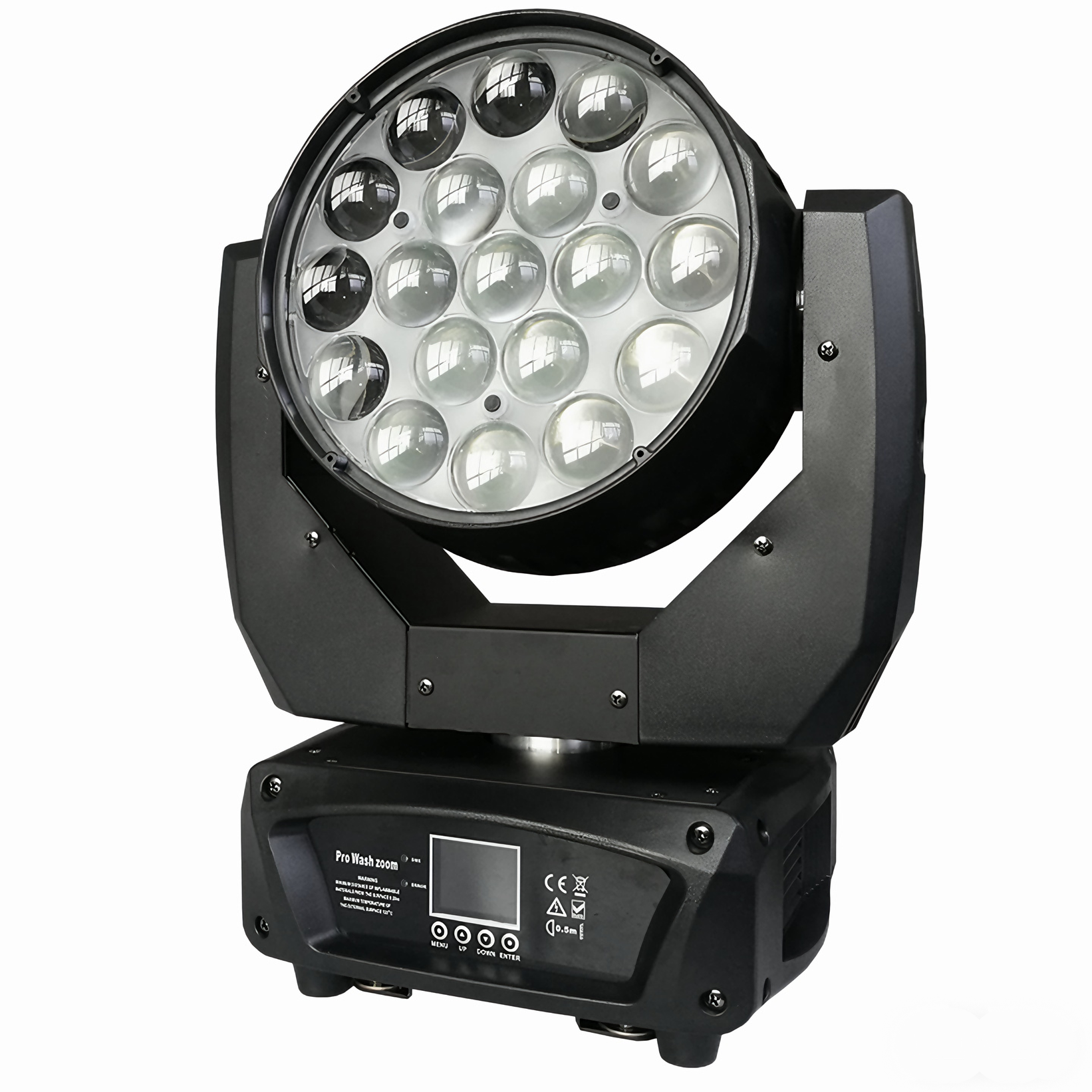

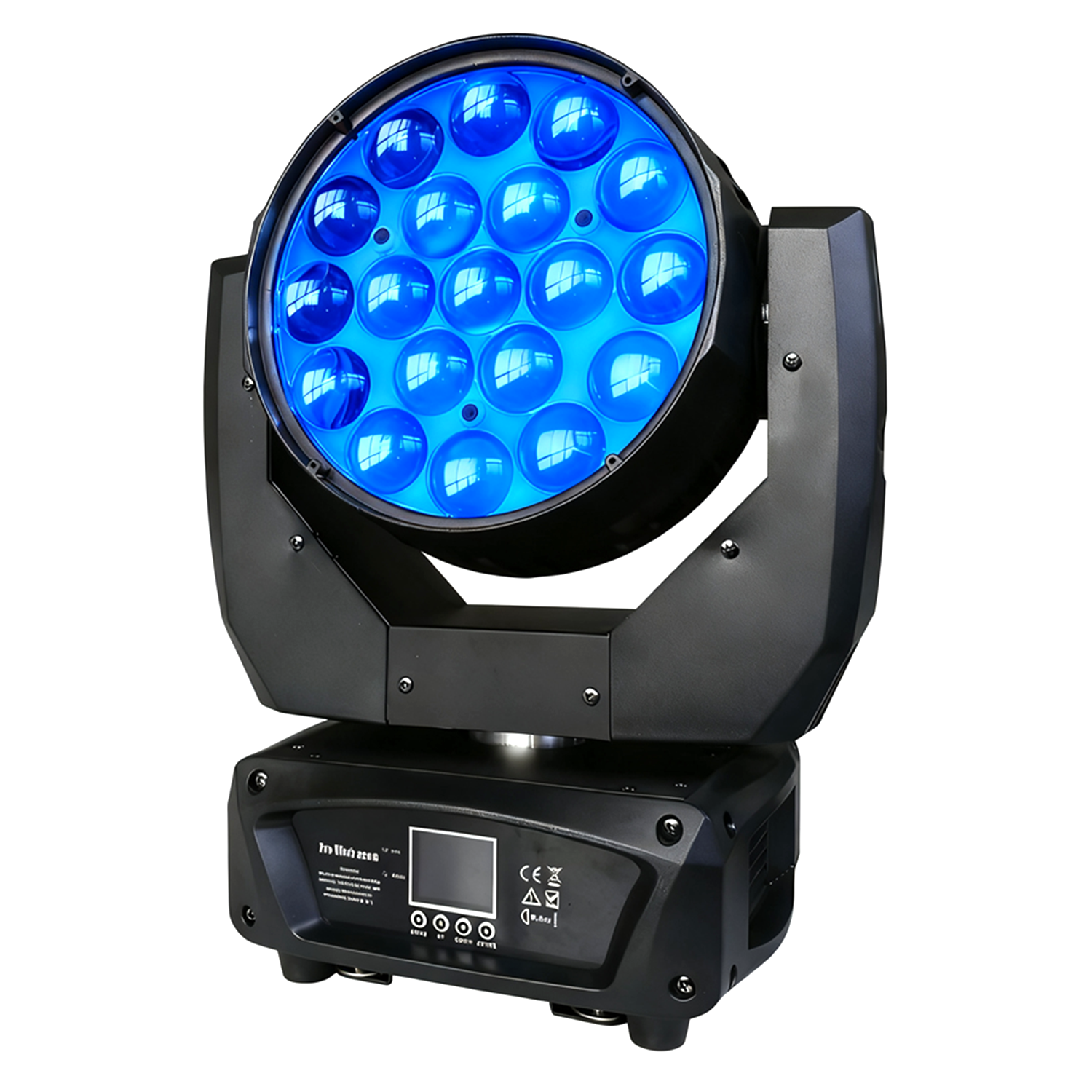

The Aura 19x15W is an ultra high power LED based moving head wash light with compact stylish housing and smart operating systerm .Equiped 19pcs 15W Osram RGBW quad-color LEDs +30*0.5W RGB Leds, the special double lamp plates desigh which not only allows you to create an endless range of color variations, but also to combine LEDs with dynamically backlights LED array .With wash single-lens systerm & quad-color OSRAM LEDs,19x15W Aura works with superior color-mixing & a broad range of shades,offers you saturated colors &authentic warm & cool white. This is a perfect wash moving head when zoom up to 58° and works as a beam light when zoom down to 8°,thanks for the unique 3-motors zoom systerm,offeres you wide angle Wash or a tight beam for high intensity output and extremely quiet in different working state.
Key points:
- 19*15W Osram RGBW Leds
- Single-lens wash with fully premixed color
- A wide zoom angle 8-58° by 3-motors zoom systerm
- Two lamp plates design, has backlight function
- Eyecandy effect
- Fast and smooth movement
- RGBW color mixing system
- LED shutter and led dimming,32bit of dimming, flicker-free
- Extremely quiet different working state
- High efficiency, low power consumption, long lifetime
- Low noise and efficient FAN cooling system
- Scan position memory, auto reposition after unexpected movement
- Pre-programmed random strobe and pulse effects
- Built-in programs with macro effects
- DMX512, master-slave and sound activated controllable or auto operation
- Auto-switching power supply that can accommodate a wide range of input voltages
Specification :
LIGHT SOURCE
LED 1: 19x15W RGBW 4in1 LED Beam plate
LED2:30*0.5 RGB 3in1 LED Aura plate
LED brand :OSRAM
Life Span: 50000Hrs
OPTICAL SYSTEM
Lens :Single-lens systerm
Zoom Angle:8-58° (8° for LED beam , 58°for LED wash )
Zoom systerm :3 motorized zoom motor
Optimized light pipe for getting higher LED efficiency
POWER
Power Supply: AC 90-260V, 50/60Hz
Power Consumption: 350W
PHOTOMETRIC DATA
Zoom 8° Lumen: 26470 lux@2m
Zoom 58°Lumen:5294 lux@2m
CONTROL
Control Mode: DMX512, master-slave, sound activated or auto operation
DMX Channels:14/25 CHS Two DMX models
Multi preset internal programs
RDM available (Remote Device Management)
PHYSICAL
Display: LCD Menu Display+4 buttons
Protect Rate: IP20
Housing : Flame-retardant thermoplastic
Color :Black(White is available)
Pan :540 degree
Pan resolution :16bit
Tilt :240 degree
Tilt :resolution :16bit
Dimmer: 0-100%
Strobe: 0~20HZ
DATA

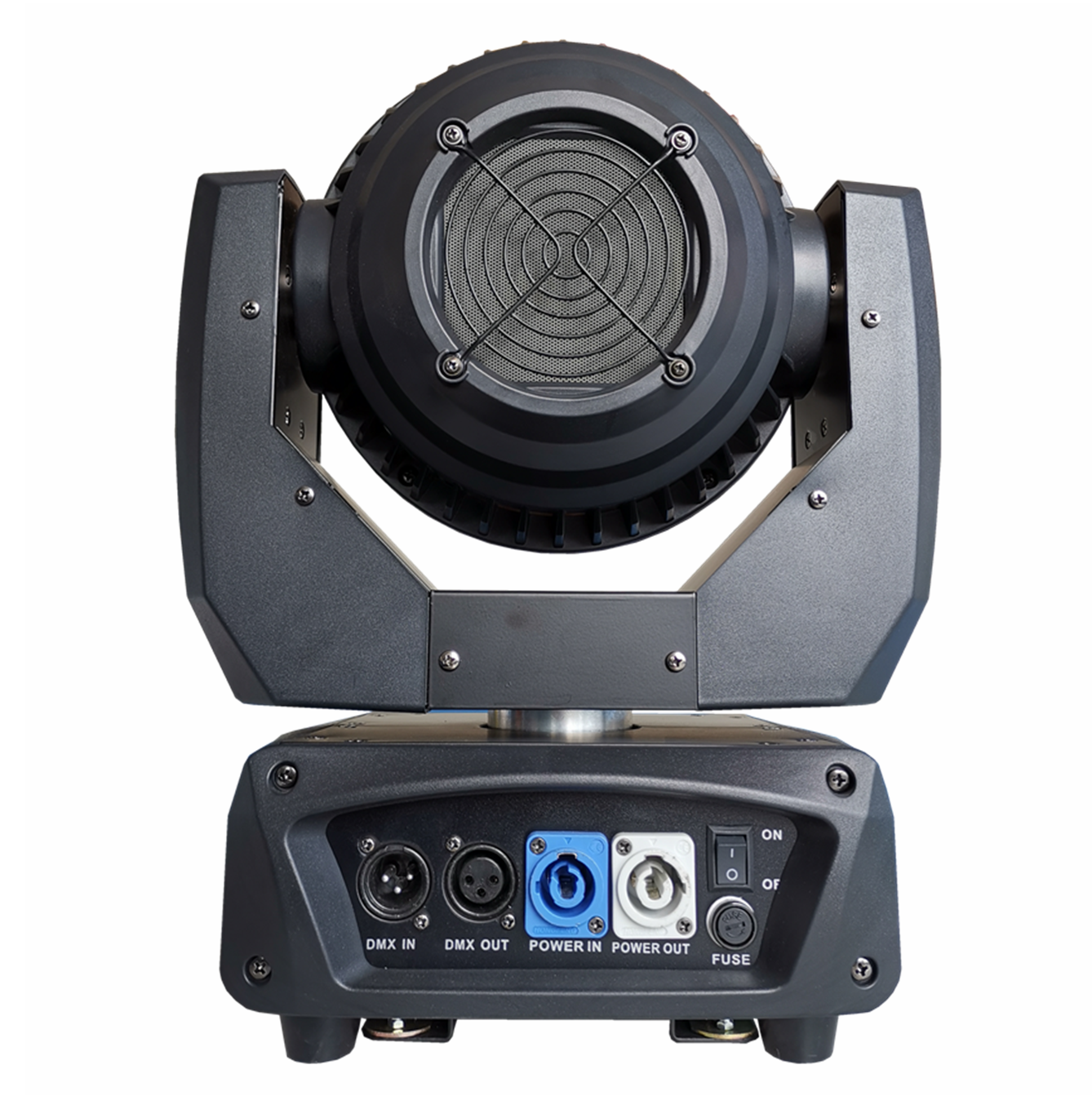

Power :PowerCon connection in & out
DMX : 3pin or 5pin in & out
WEIGHT & DIMENSION
Weight: 8 kg
Dimension: 310*220*380mm
