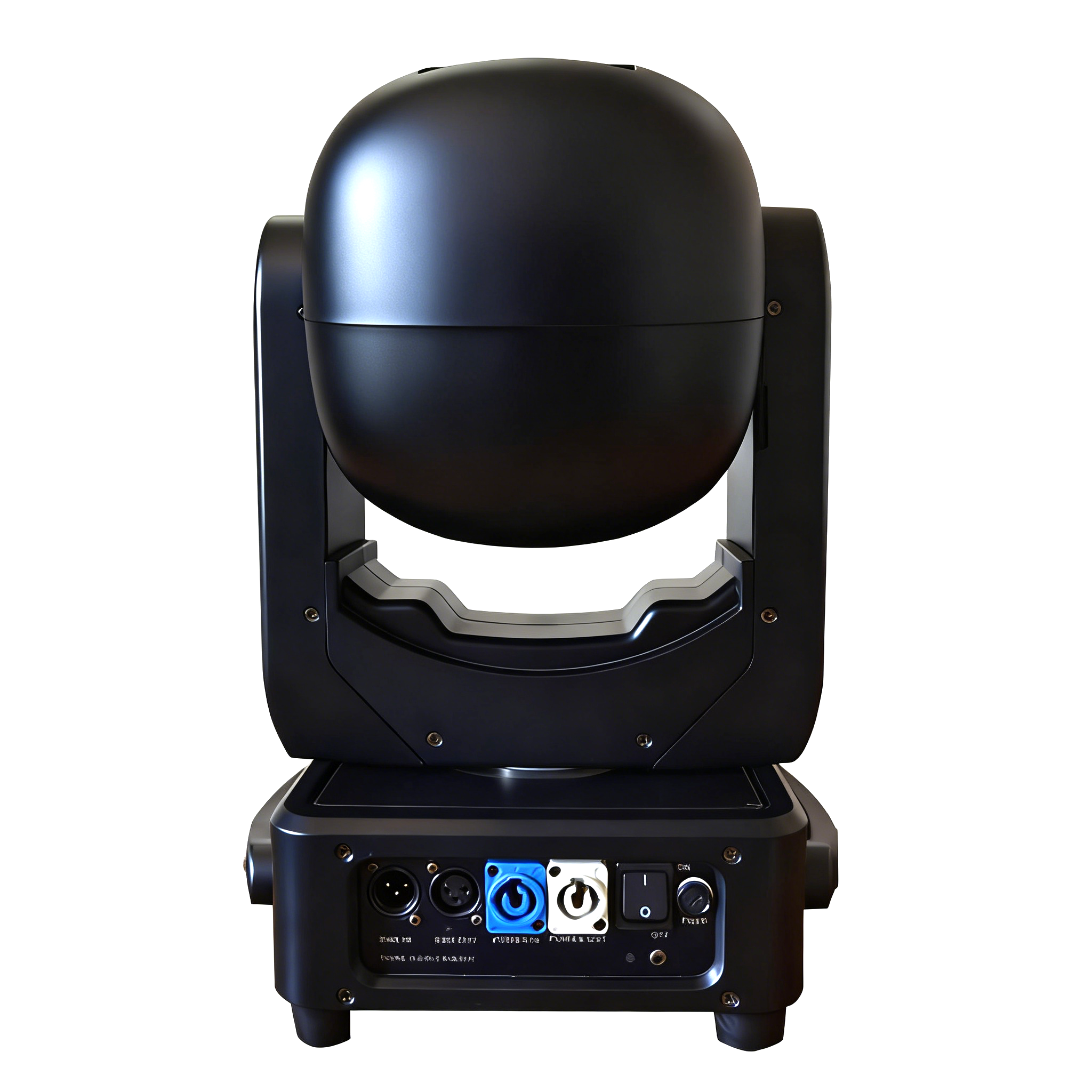

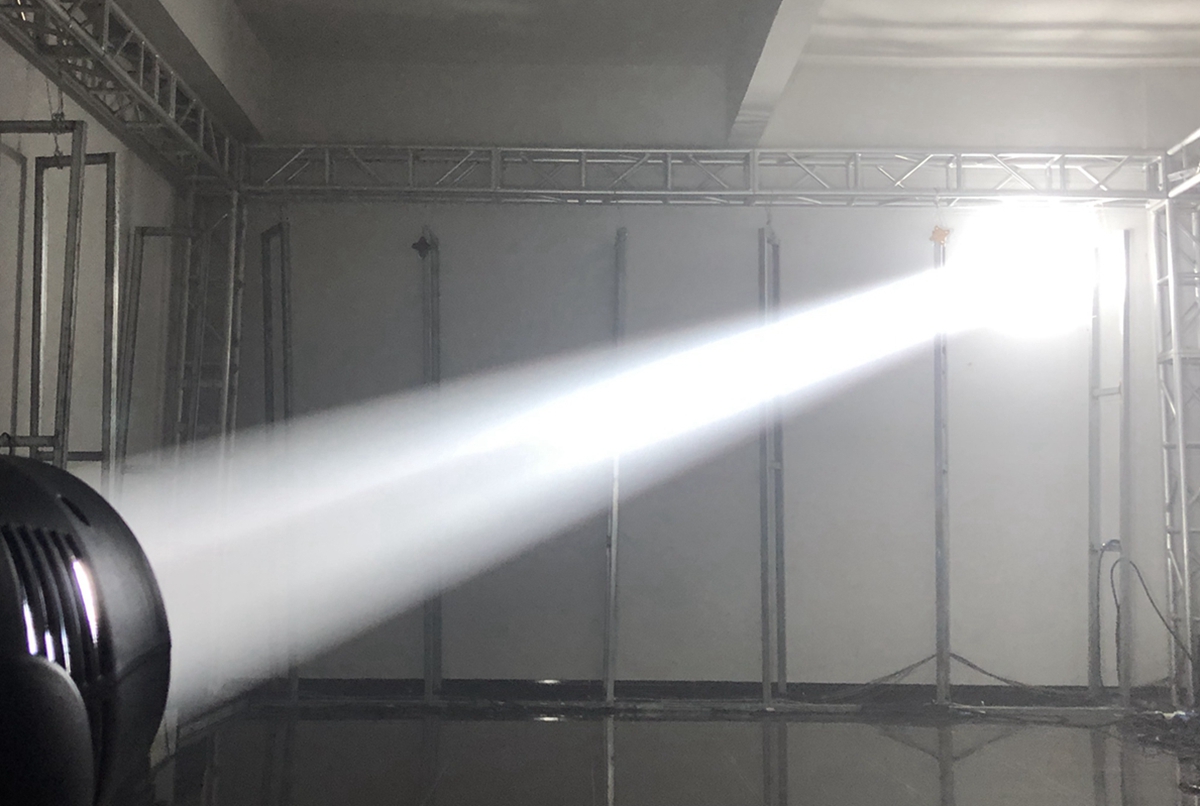

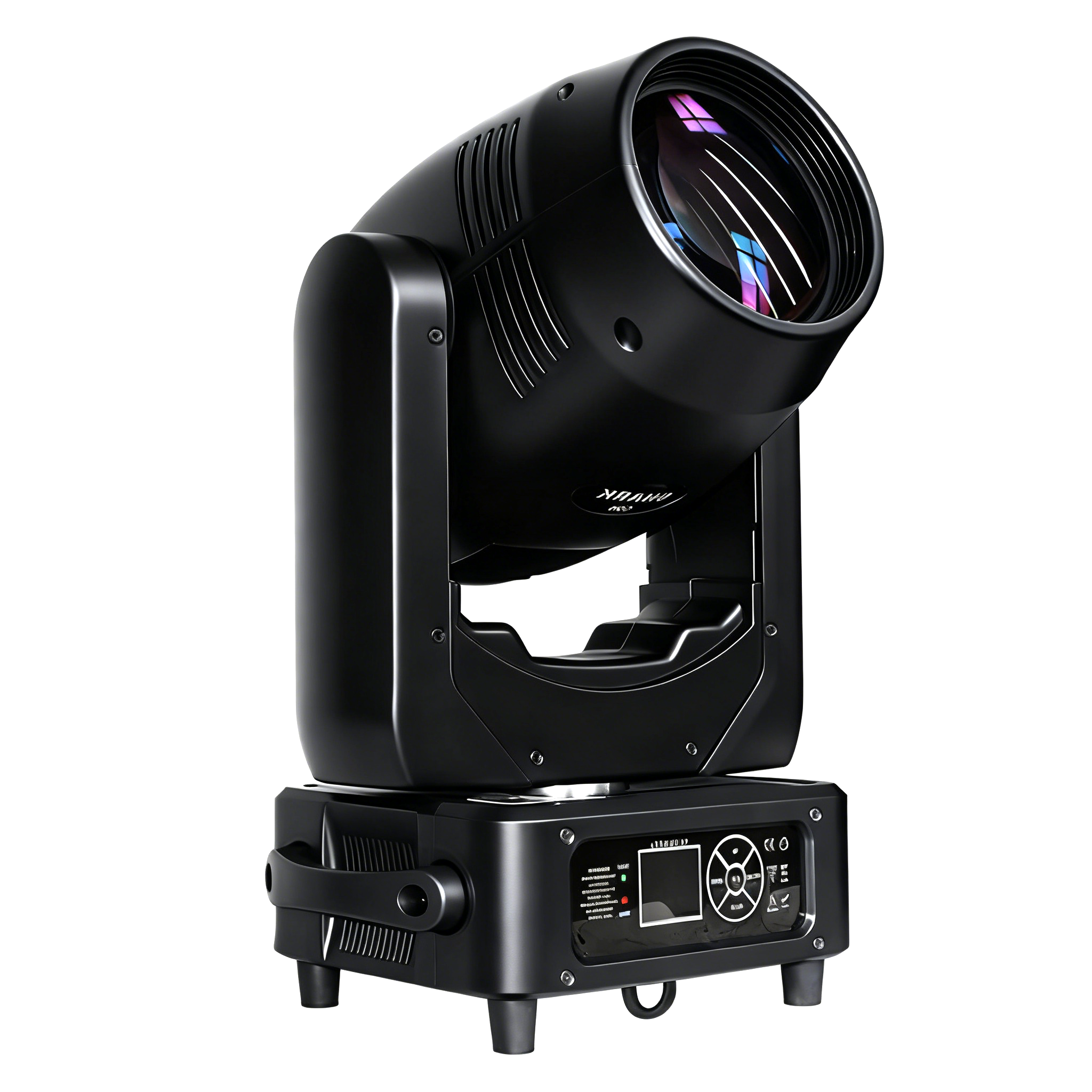

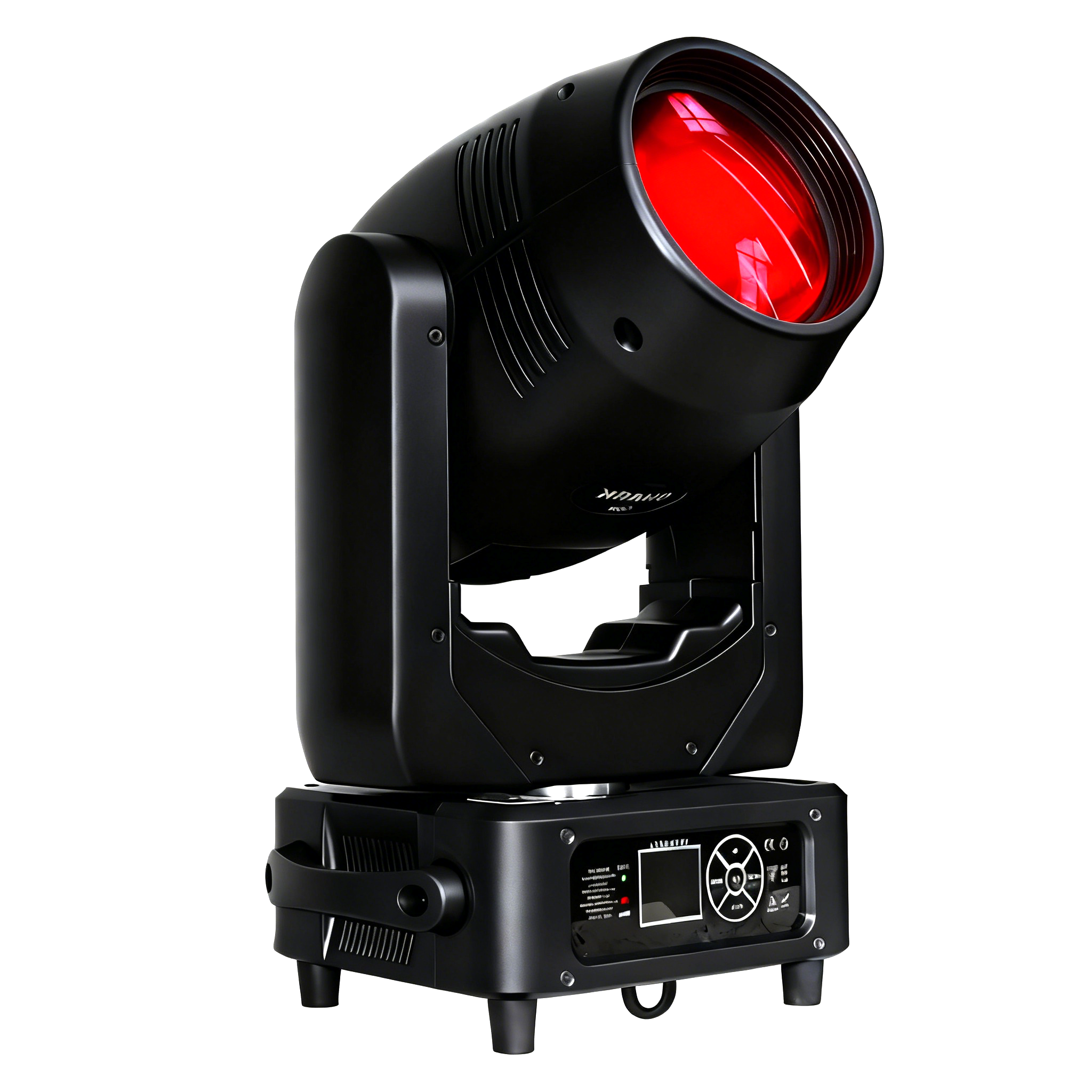

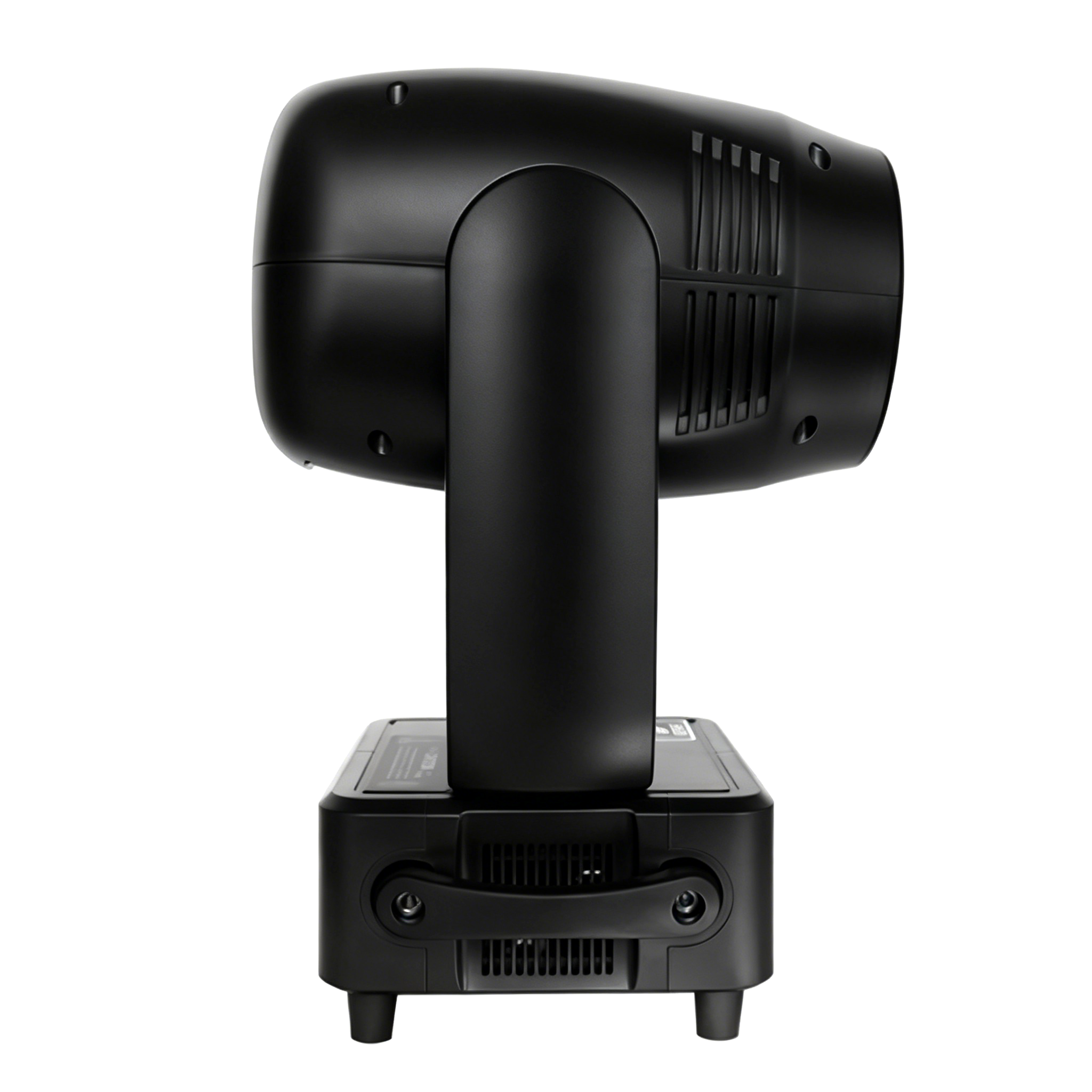

BEAM 295 , installed 1pc of SIRIUS HRI Osram 295W lamp and 2°high resolution and precise optics delivers high brightness beam effect. Pan/Tilt rotation chooses strong motors which can respond speedily and smoothly.Combined with a full complement of professional characteristics including a static gobo wheel 16 gobos + open, Rainbow effect +Gobo shake) , color wheel, 8 + 16-facet prism with CW/CCW rotation, linear electronic frost, motorized linear focus, variable speed shutter/strobe, 0-100% linear dimmer. Beam 311 is a kind of final version stage light with high speed, accurate, it is nice choice for mobile applications or for fixed installations at outdoor show,live concert, TV show, wedding,nightclub,party and other big or small evets .
Key points:
- high power SIRIUS HRI Osram 295W
- 2°tight beam lens
- Fast and smooth movement ,16bit pan/tilt fine
- Excellent color mixing effect and rainbow effect
- DMX channel mode:16CH
- 14 colors HQ color wheel installed which make colorful beam effect

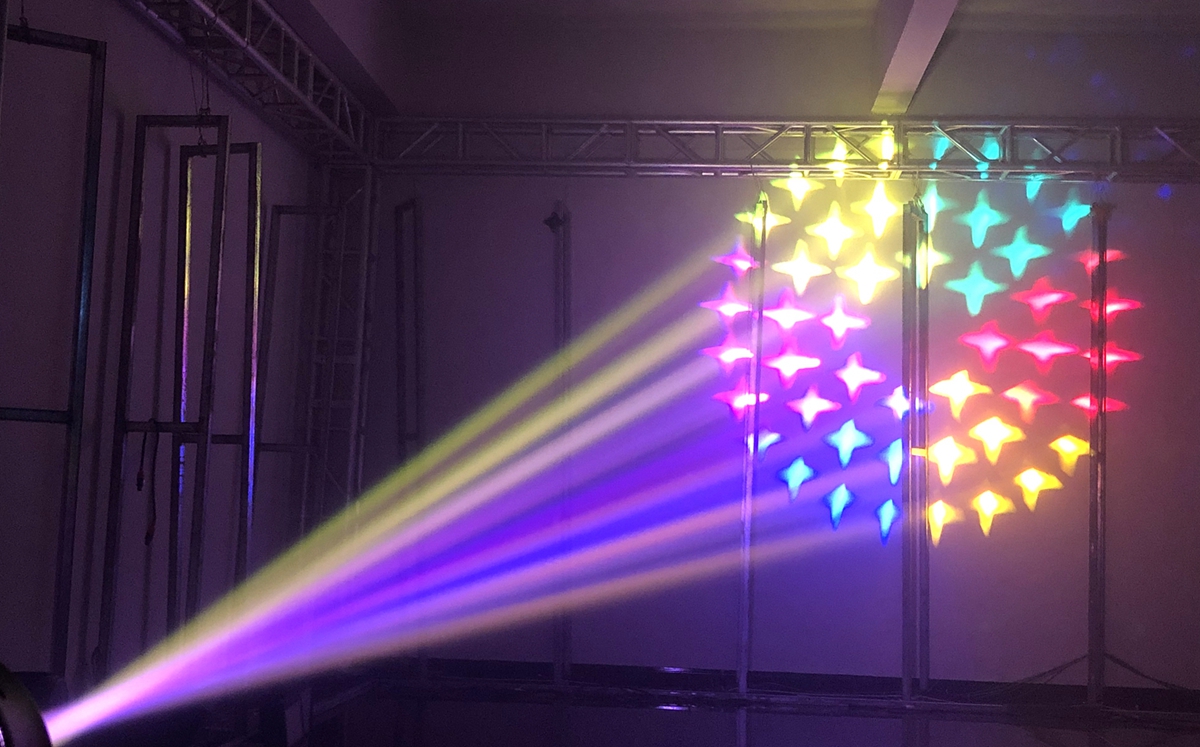

- 16 gobos + open, Rainbow effect +Gobo shake
- High efficiency, low power consumption, long lifetime
- Low noise and efficient FAN cooling system
- Scan position memory, auto reposition after unexpected movement
- Pre-programmed strobe ,pulse strobe、oblique ascension strobe、oblique fall strobe、random strobe、strobe break effect
- Built-in programs with macro effects
- Linear electronic focus
- Linear electronic frost
- Indoor operation temperature：-20°C～+40°C
- DMX512, master-slave and sound activated controllable or auto operation
- Auto-switching power supply that can accommodate a wide range of input voltages
Specification :
LIGHT SOURCE
Lamp :SIRIUS HRI Osram 295W lamp
Ballast of lamp :electronic ballast
LED brand :Osram
Life Span: 2000Hrs
Color Temperature: 8000K
OPTICAL SYSTEM
Lens :High precision Lens
Beam Angle:2°
POWER
Power Supply: AC 90-260V, 50/60Hz
Power Consumption: 450W
PHOTOMETRIC DATA
Lumen: 57470 lux@2m
COLOR SYSTEM
Color Wheel : 14 colors + open with Split Colors and Rainbow effect
GOBO SYSTEM
Gobo wheel: 16 gobos + open, Rainbow effect +Gobo shake
PRISM SYSTEM

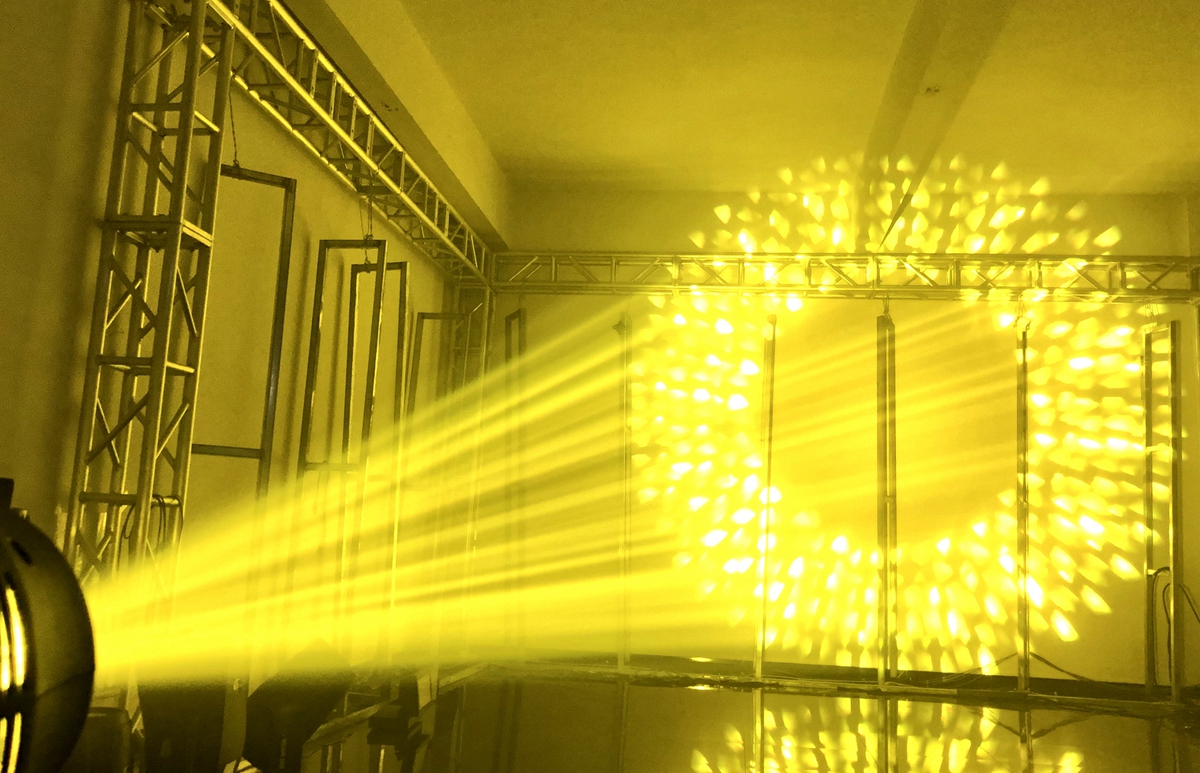

Prism 1 : 8 + 16-facet prism, CW/CCW rotation
CONTROL
Control Mode: DMX512, master-slave, sound activated or auto operation,
DMX Channels:16CH
PHYSICAL
Display: LCD Menu Display+4 buttons
Protect Rate: IP20
Housing : Moulded fire proof ABS PC +aluminum and steel metal plates
Color :Black or White
Pan :540°
Pan resolution :16bit
Tilt :270°
Tilt :resolution :16bit
PAN/TILT reversible and scan position memory, auto reposition after unexpected movement.
Dimmer: 0-100%
Strobe: Variable strobe effect
Cooling :Efficient low noise self adjusting fan cooling system
Focus: motorized focus
Frost: electronic frost
DATA
Power :PowerCon connection in & out
DMX : 3pin or 5pin in & out
WEIGHT & DIMENSION
Weight: 17 kg
Dimension: 320x272x565mm
