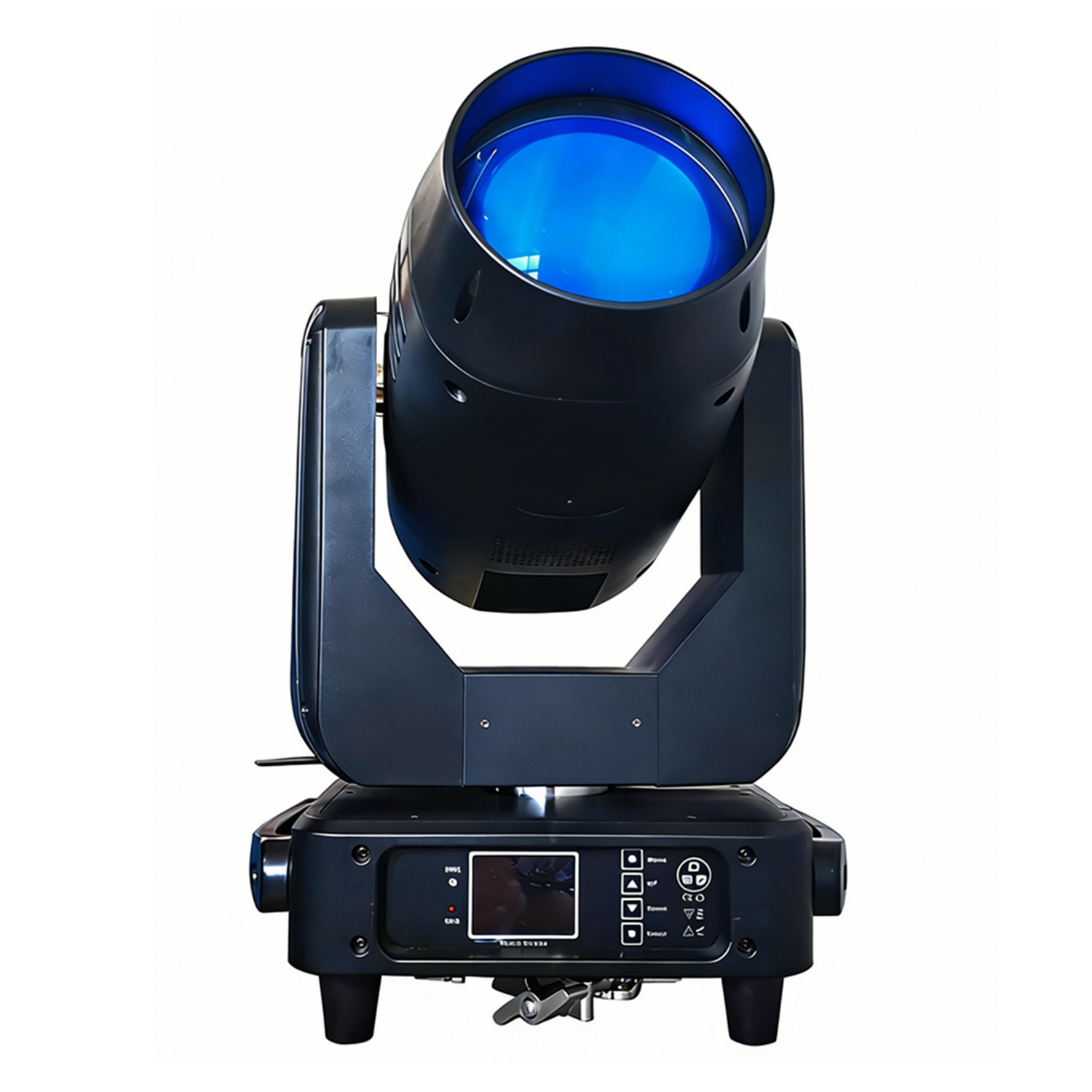

BEAM 380 , installed 1pc of SIRIUS HRI Osram 371W lamp and 3°high resolution and precise optics delivers high brightness beam effect. Pan/Tilt rotation chooses strong motors which can respond speedily and smoothly.Combined with a full complement of professional characteristics including a static gobo wheel, color wheel, two prism system (prism 1 is 8 facet prism , prism 2 is 8+16+24 facet prism), linear electronic frost, motorized linear focus, variable speed shutter/strobe, 0-100% linear dimmer. In addition, the unique folded hanging clamp system makes this product more practical and convenient.The 1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy. It is nice choice for mobile applications or for fixed installations at outdoor show,live concert, TV show, wedding,nightclub,party and other big or small evets . Key points:
- high power SIRIUS HRI Osram 371W
- 3°tight beam lens
- Fast and smooth movement,16bit pan/tilt fine
- Excellent color mixing effect and rainbow effect
- DMX channel mode:16CH and 20CH
- 13 colors HQ color wheel installed which make colorful beam effect
- High efficiency, low power consumption, long lifetime
- Low noise and efficient FAN cooling system
- Scan position memory, auto reposition after unexpected movement
- Pre-programmed strobe ,pulse strobe、oblique ascension strobe、oblique fall strobe、random strobe、strobe break effect
- Built-in programs with macro effects
- Linear electronic focus
- Linear electronic frost
- Over temperature protection management (output decreased when over heat)
- Display screen can be 180° Reversibleto fit the installation in different place
- Indoor operation temperature：-20°C～+40°C
- DMX512, master-slave and sound activated controllable or auto operation
- Auto-switching power supply that can accommodate a widerange of input voltages
Specification :
LIGHT SOURCELamp :SIRIUS HRI Osram 371W lampBallast of lamp :electronic ballastLED brand :OsramLife Span: 2000HrsColor Temperature: 8000K
OPTICAL SYSTEMLens :High precision LensBeam Angle:3°
POWERPower Supply: AC 90-260V, 50/60HzPower Consumption: 550W
PHOTOMETRIC DATALumen: 67470 lux@2m
COLOR SYSTEMColor Wheel : 14color+half-flitter .Variable direction rainbow effect with speed adjustable
GOBO SYSTEMGobo wheel: 14+white
PRISM SYSTEM Prism 1 : 8-facet prism with indexable and rotatingPrism 1 :8+16+24-facet prism with indexable and rotating
CONTROLControl Mode: DMX512, master-slave, sound activated or auto operation,DMX Channels:16CH and 20CHRDM available (Remote Device Management)
PHYSICALDisplay: LCD Menu Display+4 buttonsProtect Rate: IP20Housing : Moulded fire proof ABS PC +aluminum and steel metal platesColor :Black or WhitePan :540°Pan resolution :16bitTilt :270°Tilt :resolution :16bitPAN/TILT reversible and scan position memory, auto reposition after unexpected movement.Dimmer: 0-100%Strobe: Variable strobe effectCooling :Efficient low noise self adjusting fan cooling systemFocus: motorized focusFrost: electronic frostHanging system :2*1/4 turn fastening Omega Clamps
DATAPower :PowerCon connection in & outDMX : 3pin or 5pin in & out
WEIGHT & DIMENSIONWeight: 20 kgDimension: 380*270*610mm
