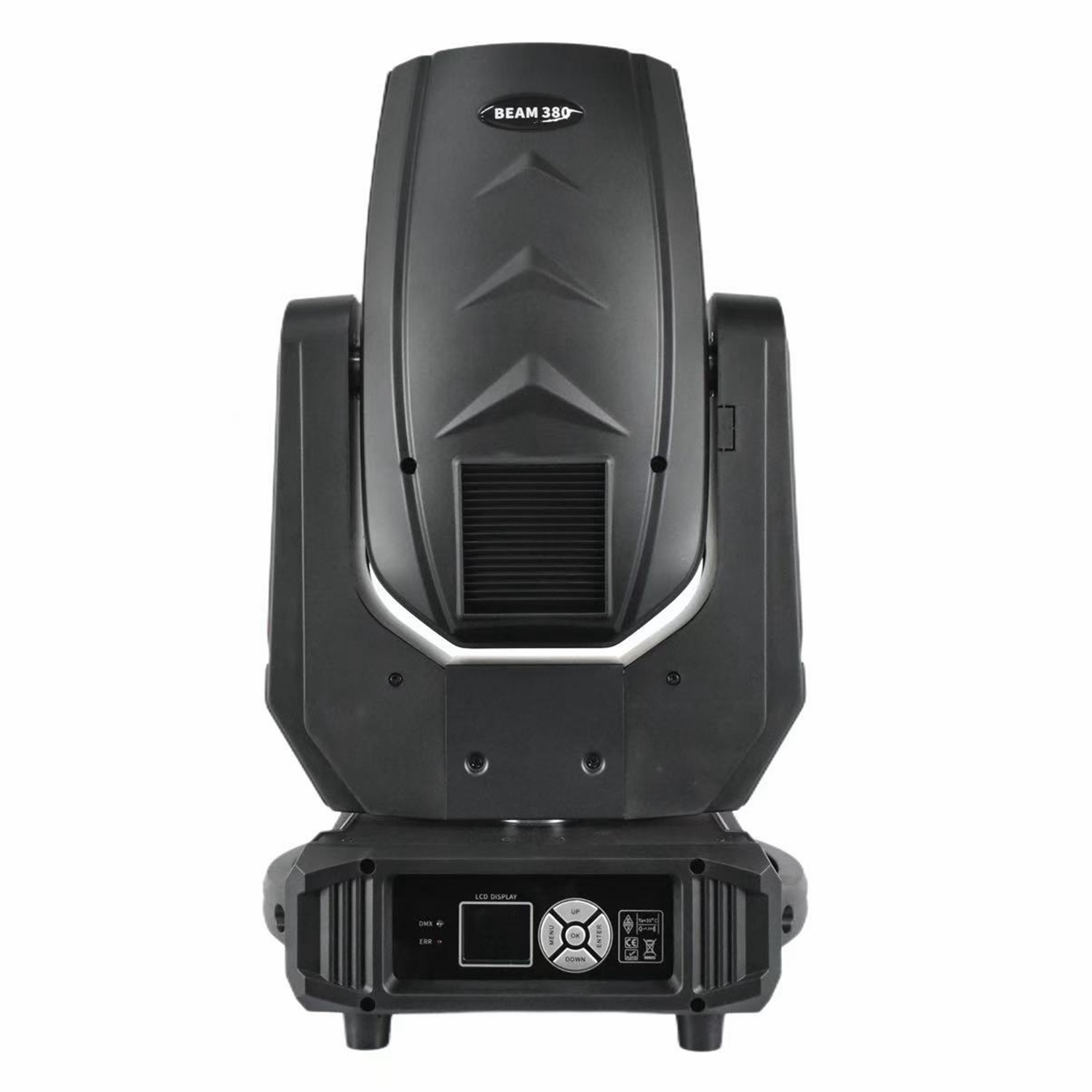

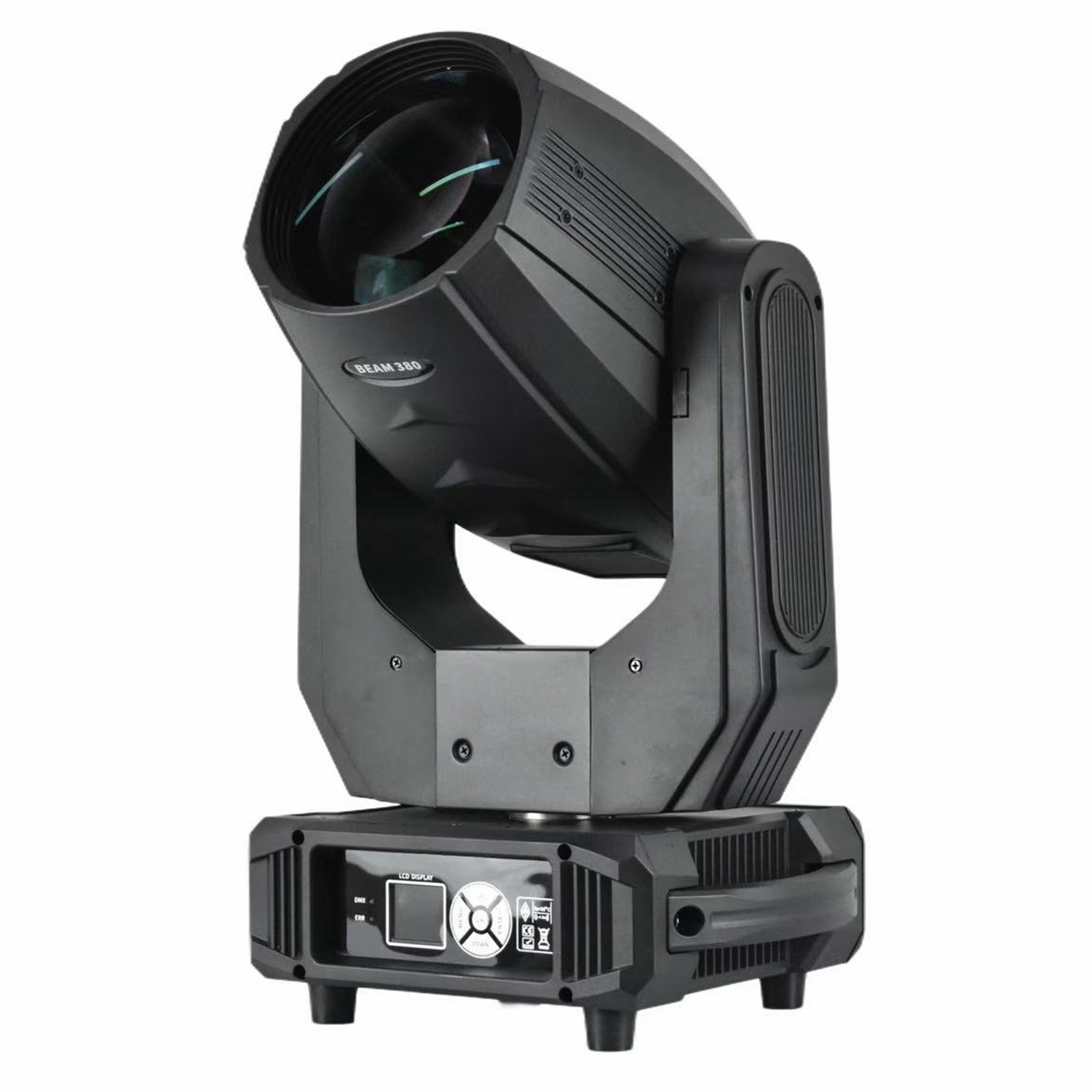

BEAM380 PRISM KING , installed 1pc of SIRIUS HRI Osram 371W lamp and 3°high resolution and precise optics delivers high brightness beam effect. Pan/Tilt rotation chooses strong motors which can respond speedily and smoothly.Combined with a full complement of professional characteristics including a static gobo wheel, color wheel, two prism system(prism 1 is 6+8+24facet prism , prism 2 is 8+8+8 facet prism), linear electronic frost, motorized linear focus, variable speed shutter/strobe, 0-100% linear dimmer.
In addition, the unique folded hanging clamp system makes this product more practical and convenient.The 1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy. It is nice choice for mobile applications or for fixed installations at outdoor show,live concert, TV show, wedding,nightclub,party and other big or small evets .
Specification :
LIGHT SOURCE
Lamp :SIRIUS HRI Osram 371W lamp
Ballast of lamp :electronic ballast
LED brand :Osram
Life Span: 2000Hrs
Color Temperature: 8000K
OPTICAL SYSTEM
Lens :High precision Lens
Beam Angle:3°
POWER
Power Supply: AC 90-260V, 50/60Hz
Power Consumption: 550W
PHOTOMETRIC DATA
Lumen: 67470 lux@2m
COLOR SYSTEM
Color Wheel : 14color+half-flitter .Variable direction rainbow effect with speed adjustable
GOBO SYSTEM
Gobo wheel: 14+white
PRISM SYSTEM
Prism 1 : 6+8+24-facet prism with indexable and rotating
Prism 2: 8+8+8-facet prism with indexable and rotating
CONTROL
Control Mode: DMX512, master-slave, sound activated or auto operation,
DMX Channels:16CH
PHYSICAL
Display: LCD Menu Display+4 buttons
Protect Rate: IP20
Housing : Moulded fire proof ABS PC +aluminum and steel metal plates
Color :Black or White
Pan :540°
Pan resolution :16bit
Tilt :270°
Tilt :resolution :16bit
PAN/TILT reversible and scan position memory, auto reposition after unexpected movement.
Dimmer: 0-100%
Strobe: Variable strobe effect
Cooling :Efficient low noise self adjusting fan cooling system
Focus: motorized focus
Frost: electronic frost
Hanging system :2*1/4 turn fastening Omega Clamps
DATA
Power :PowerCon connection in & out
DMX : 3pin or 5pin in & out
WEIGHT & DIMENSION
Weight: 20 kg
Dimension: 380*270*610mm
