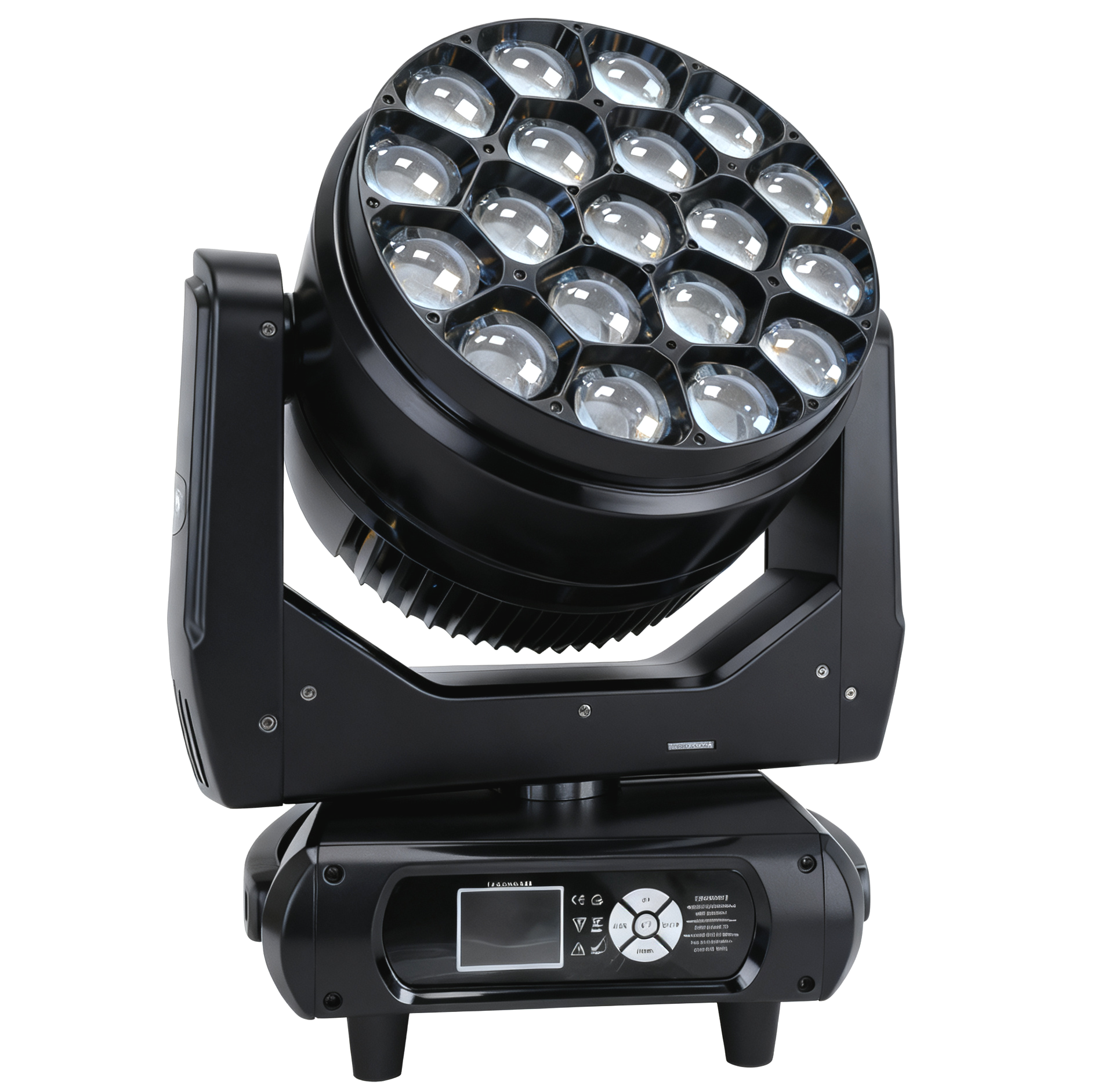

The BEE EYE 19*40W k15 is an evolutionary product based on traditional zoom&wash moving head light, it combines supersaturated wash, breathtaking beam and amazing zoom function. This is a breakthrough in the series of led wash moving head light.

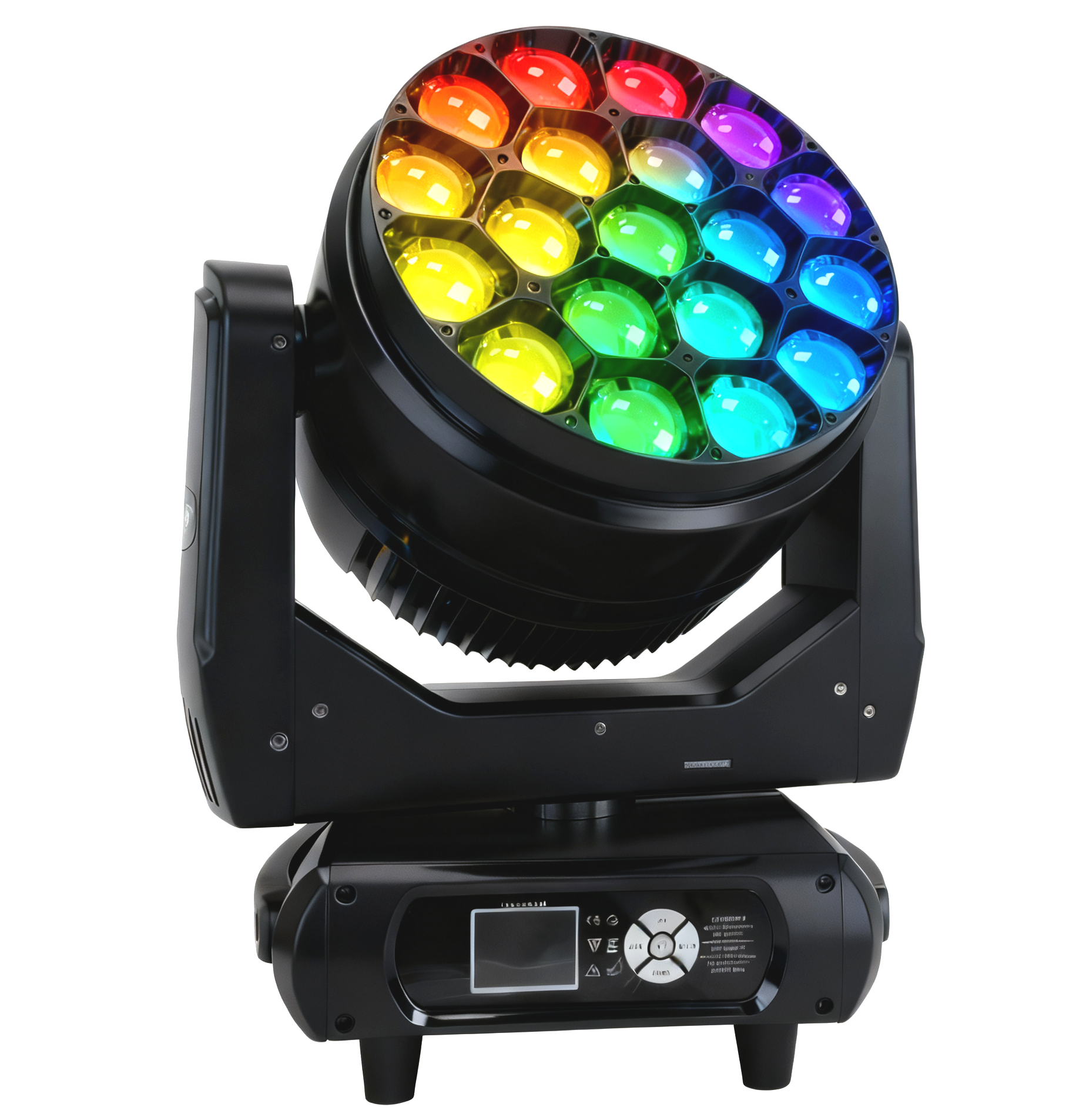

BEE EYE 19*15W use Osram 40W RGBW LEDs, its excellent brightness in both single color and mixing effect. The 4-60° zoom angle makes the high performance wash function more variable. So it can adjust the range of wash output according to different venues.
On the basis of zoom effect, BEE EYE 19*40W also adds a lens rotation function. When the beam is zoomed to the minimum, the lens rotation function is turned on at the same time, which is the super dazzling kaleidoscope effects. Whether it is a big stage or a small club, it is a fresh attempt.
Key points:
● OSRAM Ostar 19*40W RGBW 4in1 LEDs
● Zoom angle: 4-60°
● Individual LED control
● “Vortex”and “kaleidoscope” effects
● Front lens can rotated infinity
● Variable built-in dynamic effects
Specification:
LIGHT SOURCE
LED:19pcs 40W RGBW 4in1 LEDs
LED brand: Osram Ostar
LED Average Life: 50,000 h
Color temperature：2500K-8000K
POWER
Power Supply: AC110-240V 50/60 Hz
Power Consumption: 800W
EFFECT
Individual LED control
Wash/Beam/Graphic/Effects function
Bi-directional Rotating Front Lens
With“vortex”and “kaleidoscope” effects
Variable built-in dynamic effects
4 Liner dimming curves
Strobe: 1-25 hz, random and pulse flash
0-100% linear electronic dimmer
OPTICAL SYSTEM
Beam Angle: 4°-60° Electronic Zoom Range
CONTROL
Control Mode: DMX512/master-slave/sound/auto
DMX Mode:21/35/78/92/97CH
Pan/Tilt: 540/270°
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
DATA

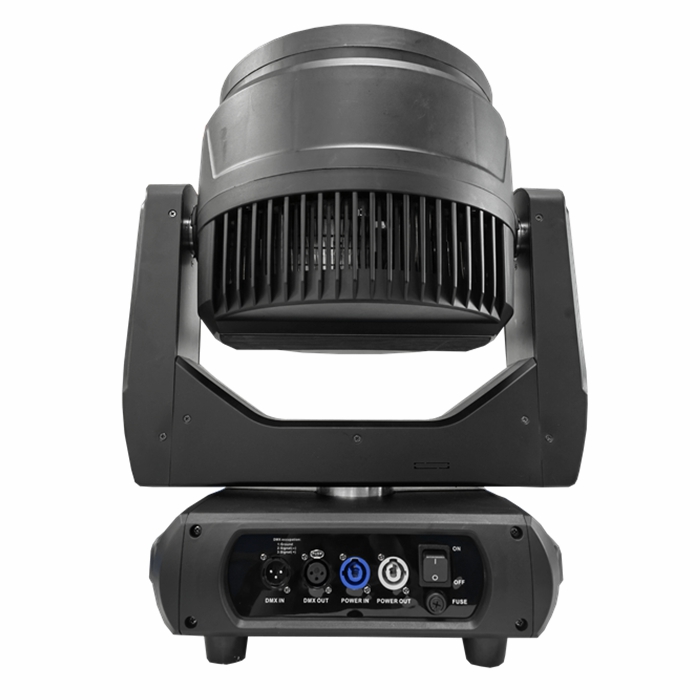

Power: PowerCon connection in & out
DMX: 3pin or 5pin in & out
HANGING SYSTEM:
With fast-lock omega clamps (1/4 turn) on the base
WEIGHT & DIMENSION
Weight: 21kgs
Dimention: 465*330*530mm
