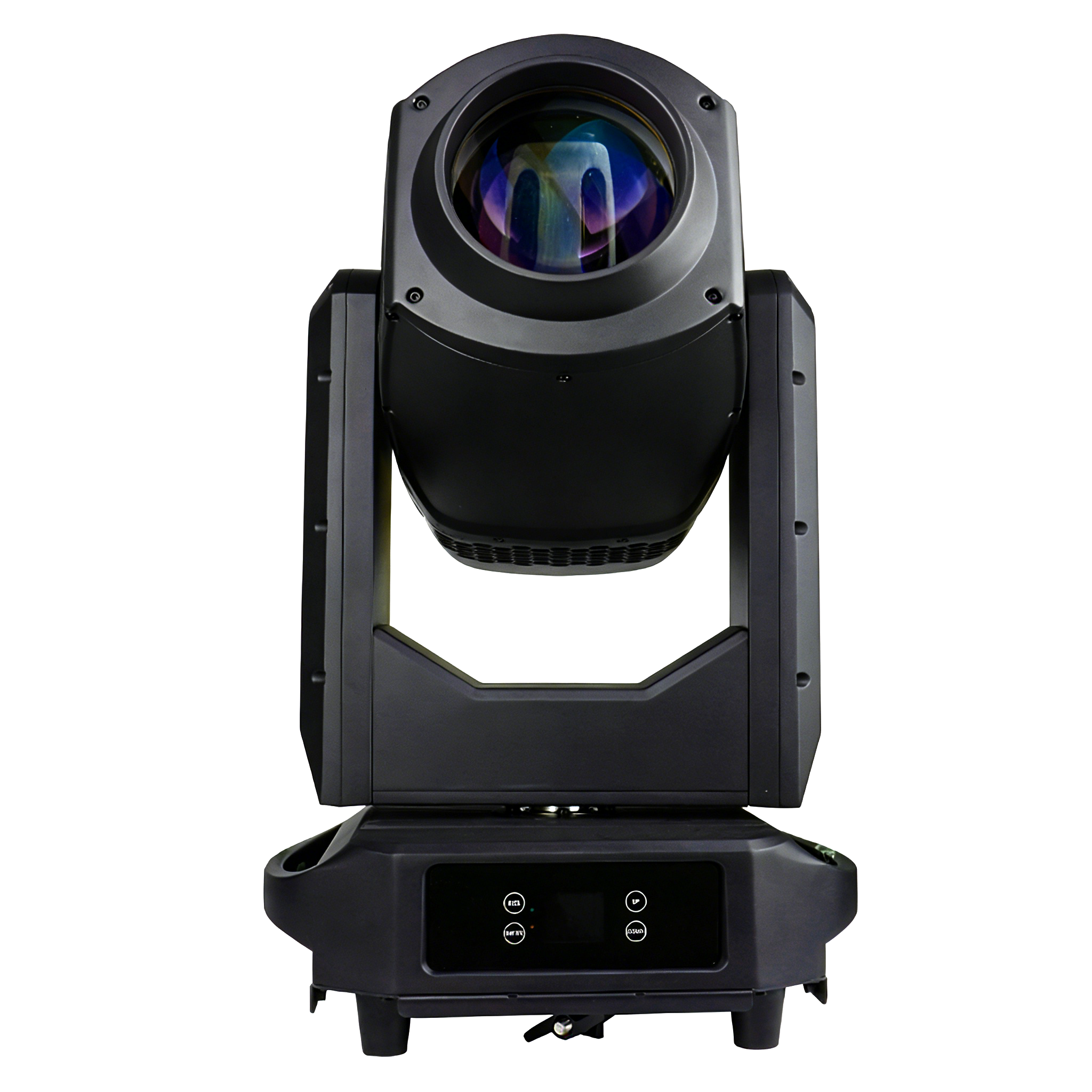

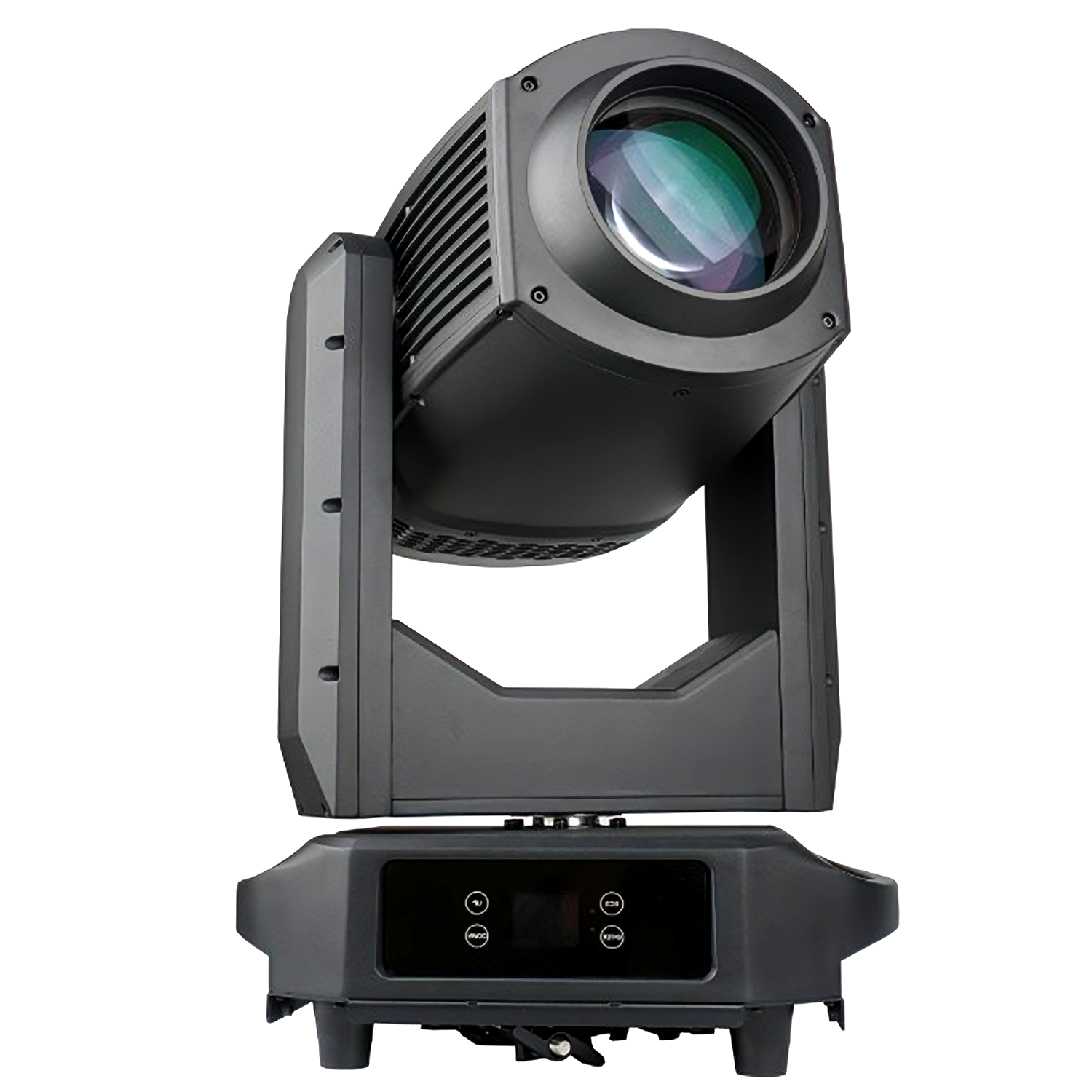

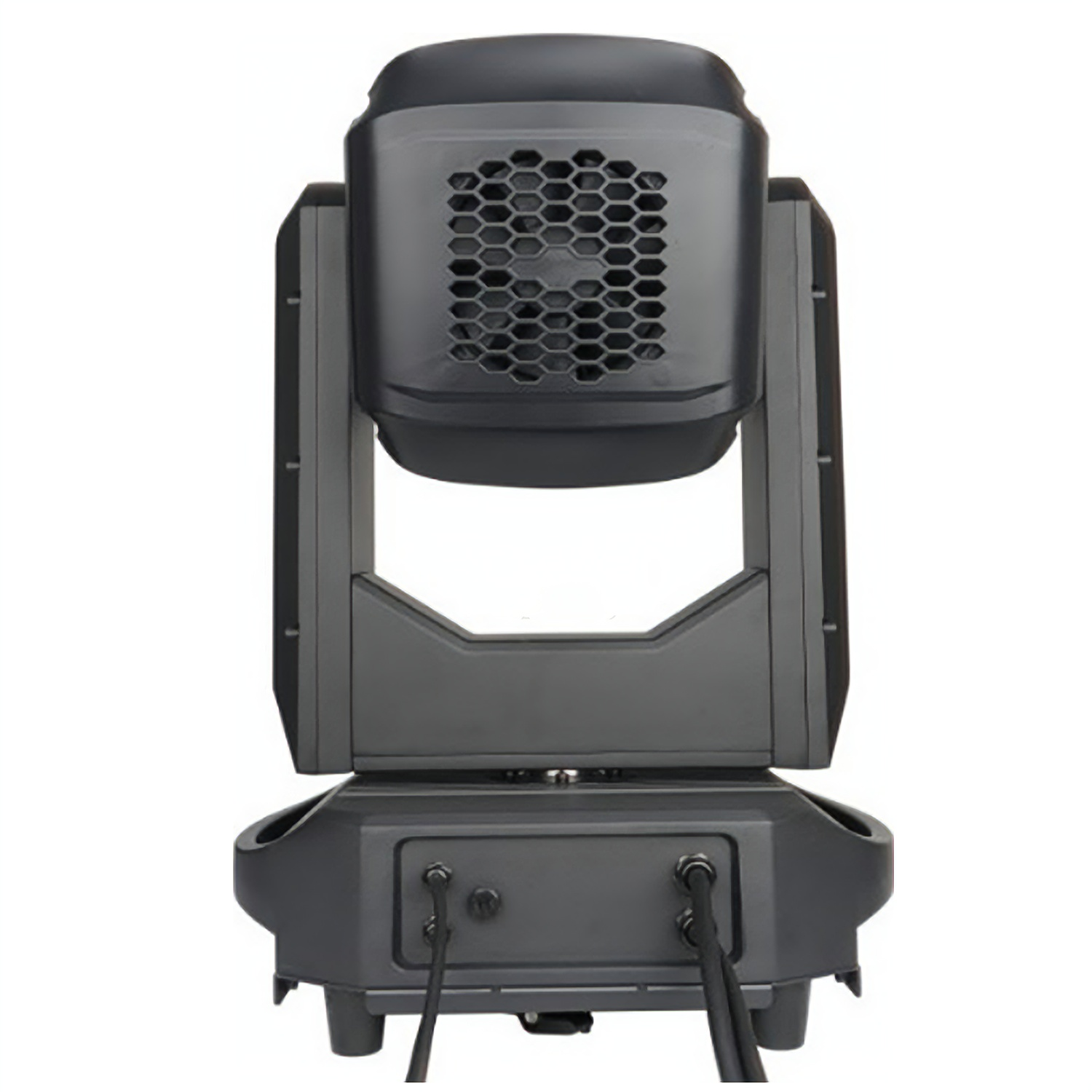

BSW420 IP high-performance lighting fixture features a 420W Philips light source for powerful and reliable illumination. The color system includes a 14-color wheel with a frost function for soft light diffusion, while the gobo system offers 15 fixed patterns, 8 rotating wave patterns, and 1 white light for versatile projection effects.
Equipped with electronic zoom, adjustable frost, and an independent strobe (0.5–20 flashes per second), it delivers dynamic lighting control. The 8-facet prism with variable-speed rotation enhances beam effects, while the XY-axis 3-phase motor ensures high-speed stability and precise positioning.
Linear dimming (0%–100%), flicker-free and smooth
Adjustable beam angle (0°–45°)
Dual DMX channels (16/18 channels)
152mm aperture diameter
IP65 waterproof rating for durability
Ideal for stage, studio, and event lighting, this fixture combines advanced optics, robust motor control, and professional-grade construction for superior performance.
Wide Voltage Input: AC 90V–235V, 50–60Hz
Wide-Voltage Power Supply: 600W
Light Source System: 420W (Philips)
Color Temperature: 7900K ± 500K
Color System:
Color Wheel: 14 colors + Frost (diffusion) function
Gobo System:
Gobo Wheel: 15 fixed patterns + 8 rotating wave patterns + 1 white light
Focusing System: Electronic zoom
Frost: Frost effect for soft light diffusion
Strobe:
Independent strobe effect, adjustable speed (0.5–20 flashes per second)
Prism:
8-facet prism with adjustable rotation speed
Motor System:
XY-axis driven by 3-phase motor for high-speed stability and precise positioning
Dimming Curve:
0%–100% linear dimming, smooth and flicker-free
Beam Angle: 0°–45° adjustable
Dual DMX Channels: 16 or 18 channels selectable
Aperture Diameter: 152mm
IP Rating: IP65 (dustproof and waterproof)
Control Mode 1: DMX512
Display:
LCD screen, rotatable 180° for flexible installation
Pan/Tilt Movement:
High-precision 3-phase motor for accurate positioning, smooth operation, and auto-correction
Pan (Horizontal):
540° rotation, 8/16-bit resolution, fine-tuning capability
Tilt (Vertical):
270° rotation, 8/16-bit resolution, fine-tuning capability
Housing: Full die-cast aluminum
Dimensions (L × W × H): 695 × 390 × 326mm
Net Weight: 26kg
