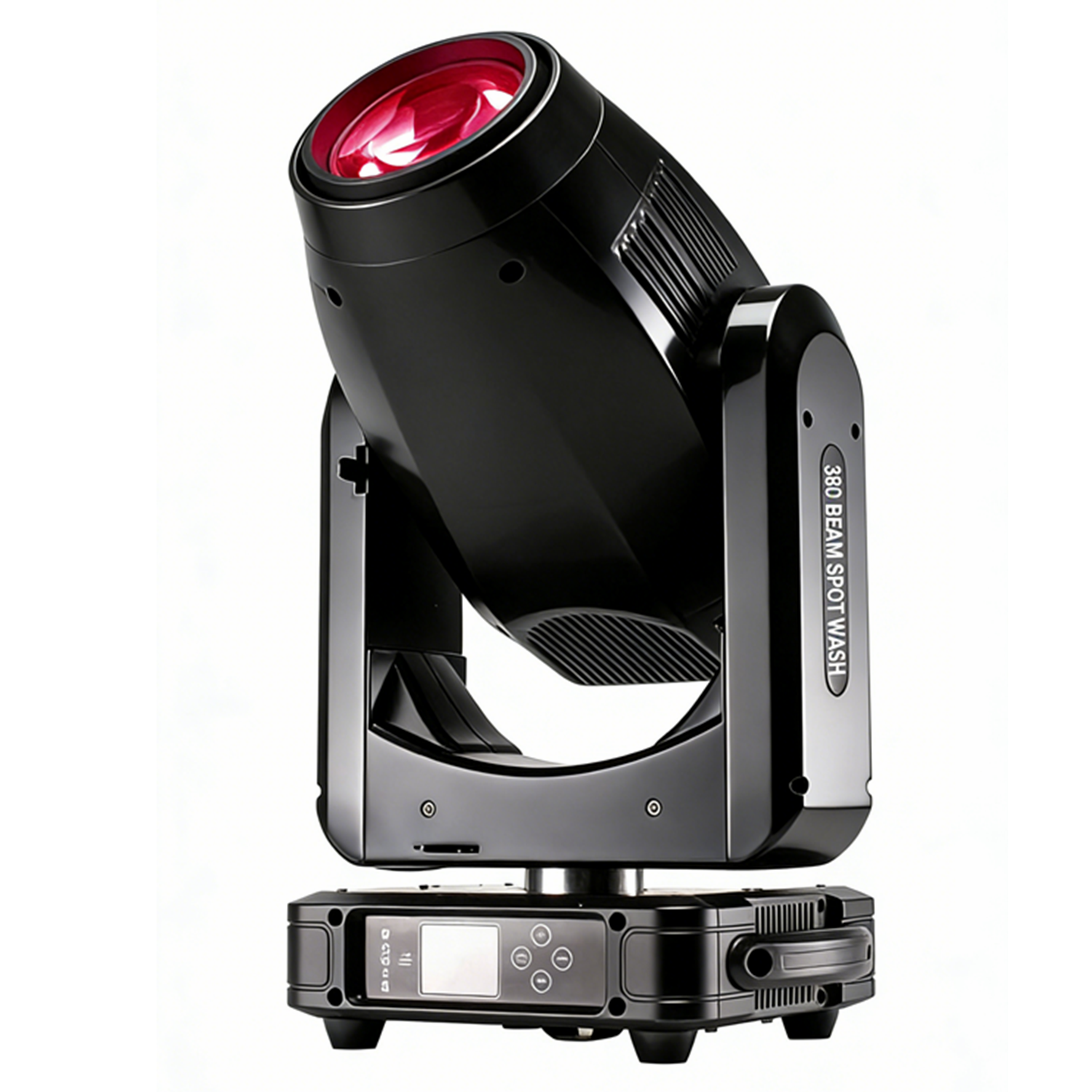

CMY BSW 380, it is Beam Spot Wash 3 in 1 Moving Head Light with High-end streamlined design, installed 1pc of Osram Sirius HRI 380W Lamp and high resolution and precise optics. Poweful beam effect with excellent light spot and light uniformity. It’s very bright and super-fast with a sharp parallel beam that cuts through the air. It can project a static or rotating glass gobo to produce precision in-air and surface images. The output is crystal clear and brilliant. Zoom range Beam effect from 0 to1.5° & spot function from 1.5°to 40° Linear adjustable, it is not only suitable for long distance projecting, but also for short distance spot and wash effect. The BSW 380 has an powerful output from it’s compact and light weght housing. Two prism system, Circular 8-facet and linear 6-facet prism. to make amazing spot effects.
Pan/Tilt rotation chooses strong motors which can respond speedily and smoothly.Combined with a full complement of professional characteristics including a static gobo wheel, color wheel, frost filter, motorized linear focus, variable speed shutter/strobe, 0-100% linear dimmer. It is nice choice for mobile applications or for fixed installations at outdoor show,live concert, TV show, high-end places.
Key points:
- high power Osram Sirius HRI 380W
- Zoom range BEAM 0-1.5°5°–40°Linear adjustable
- Circular 8-facet and linear 6-facet prism
- 8°–60° independent soft light
- Fast and smooth movement,16bit pan/tilt fine
- Two DMX channel mode:27/36CH
- 13 colors HQ color wheel installed which make colorful beam effect
- Two GOBO system: a fixed gobo wheel in 13gobos +a rotating gobo wheel in 8 changeable rotating three-dimensional gobo with white.
- High efficiency, low power consumption, long lifetime
- Low noise and efficient FAN cooling system
- Scan position memory, auto reposition after unexpected movement
- Pre-programmed strobe ,pulse strobe、oblique ascension strobe、oblique fall strobe、random strobe、strobe break effect
- Built-in programs with macro effects
- Linear electronic focus
- Linear electronic frost
- Over temperature protection management (output decreased when over heat)
- Display screen can be 180° Reversibleto fit the installation in different place
- Indoor operation temperature：-20°C～+40°C
- DMX512, master-slave and sound activated controllable or auto operation
- Auto-switching power supply that can accommodate a widerange of input voltages
Specification :
LIGHT SOURCE
Lamp : Osram Sirius HRI 380W
Ballast of lamp : electronic ballast
Lamp brand :OSRAM
Life Span: 2000Hrs
Color Temperature: 3200K-8000K
OPTICAL SYSTEM
Lens :High precision Lens
Beam Angle:0-4° for beam, 4°–50° for spot
POWER
Power Supply: AC 90-260V, 50/60Hz
Power Consumption: 600W
PHOTOMETRIC DATA
Lumen: 92470 lux@2m
COLOR SYSTEM
Color Wheel : 13color+half-flitter .Variable direction rainbow effect with speed adjustable
GOBO SYSTEM
Fixed Gobo wheel:13static gobos
Rotating Gobo wheel :8 changeable rotating three-dimensional gobo with white.
PRISM SYSTEM
Prism 1 : 16-facet Circular prism with indexable and rotating
Prism 2 : 6-facet linear prism with indexable and rotating
CONTROL
Control Mode: DMX512, master-slave, sound activated or auto operation,
DMX Channels:27/36CH
RDM available (Remote Device Management)
PHYSICAL
Display: LCD Menu Display+4 buttons
Protect Rate: IP20
Color :Black
Pan :540°
Pan resolution :16bit
Tilt :270°
Tilt :resolution :16bit
PAN/TILT reversible and scan position memory, auto reposition after unexpected movement.
Dimmer: 0-100%
Strobe: Variable strobe effect
Cooling :Efficient low noise self adjusting fan cooling system
Focus: motorized focus
Frost: electronic frost
DATA
Power :PowerCon connection in & out
DMX : 3pin or 5pin in & out
WEIGHT & DIMENSION
Weight: 24kg
Dimension: 430X310X640mm
