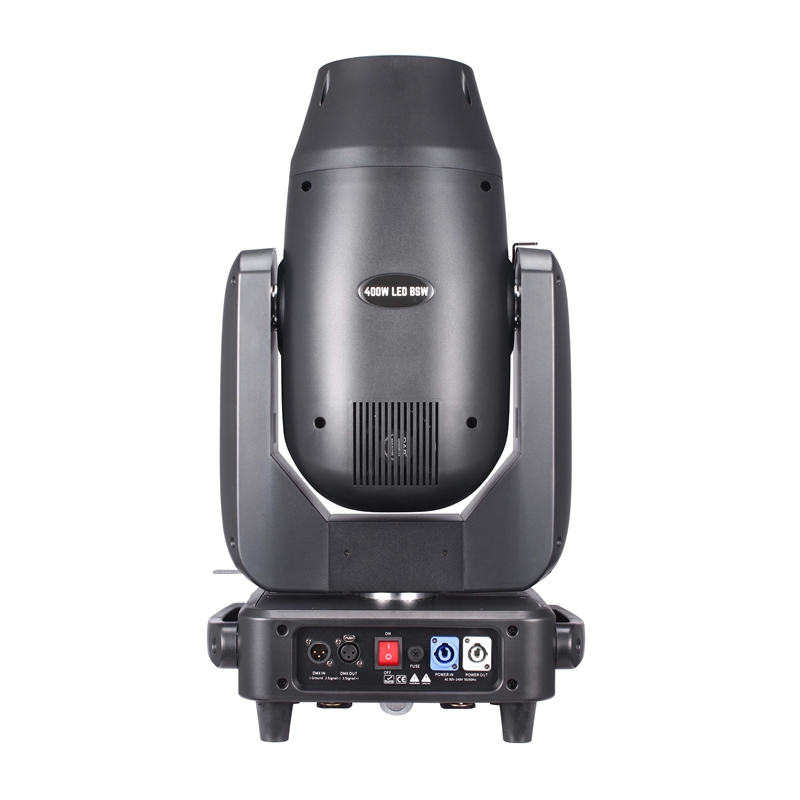

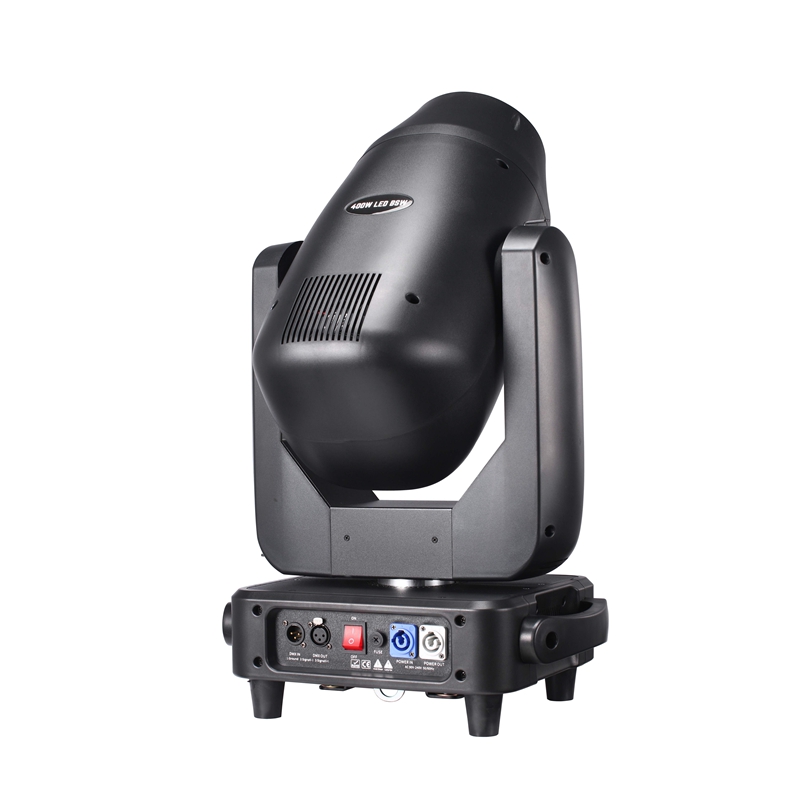

CMY LED Spot 400 , installed 1pc of 400W white LED module.Equiped a set of high resolution and precise optics and a wide range of zoom system 4°- 35 , delivers ultra high light output clear and even spot coverage. Pan/Tilt rotation chooses three-phase motor which can respond speedily and smoothly. It has a rotate Gobo wheel in 7 rotating, indexable and replaceable gobos, each gobo can work with individual color wheel , and a static Gobo wheel in 12gobos . 12 colors with linear CMY + CTO color mixing system.
The 1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy. In addition,this fixture is equiped with proper LED refresh rate for flicker free operation for TV and FILM. It is nice choice for mobile applications or for fixed installations at TV studio event,small or large scare of concert ,show event etc.
Key points:
- 400W High Output White LED
- Linear CMY+CTO color mixing system
- 50,000 hours lifespan and low power consumption
- Zoom range: Beam Mode : 4°~8° Spot Mode : 4°~35° Wash Mode : 8°~60°
- 8+8 double circle prism, 6 linear prism
- High efficiency, low power consumption, long lifetime
- Temperature protect function, when the internal Temperature is up to 40°
- Scan position memory, auto reposition after unexpected movement
- Built-in programs with macro effects
- 22+26 DMX Channels USITT DMX-512
- DMX 512, master-slave and sound activated controllable or auto operation
- Colorful LCD display
- Efficient low noise fan cooling system
- POWERCON IN/OUT
- Auto-switching power supply that can accommodate a wide range of input voltages
Specification :
LIGHT SOURCE
LED : 400W White LED engine
Life Span: 50000Hrs
Color temperature: 8500K
OPTICAL SYSTEM
Lens :High precision Lens
Zoom range: Beam Mode : 4°~8° Spot Mode : 4°~35° Wash Mode : 8°~60°
POWER
Power Supply: AC 90-260V, 50/60Hz
Power Consumption: 550W
PHOTOMETRIC DATA
Lumen: 80000 lm@4m
COLOR SYSTEM
Color Wheel : 12 colors + white light with color half-color function
Color mixing system: Linear CMY+CTO
GOBO SYSTEM
Static Gobo wheel: 12 gobos + open
Rotate Gobo wheel: 7 rotating, each glass pattern can be independently forward and reverse
PRISM SYSTEM
Prism : standard single 6-row prism and 8+8 prism, each prism can be independently forward and reverse
FOCUSING SYSTEM
Linear adjustment from 4 meters to 50 meters
ATOMIZATION SYSTEM
1 independent atomization effect, soft and natural light spot
CONTROL
Control Mode: RDM, DMX512, master-slave, sound activated or auto operation,
DMX Channels: 22+26CHS
PHYSICAL
Display: LCD display, key + touch dual operation mode
Protect Rate: IP20
Housing : Flame-retardant thermoplastic
Color :Black
Pan :540°
Pan resolution :16bit
Tilt :270°
Tilt :resolution :16bit
PAN/TILT reversible and scan position memory, auto reposition after unexpected movement.
Dimmer: 0-100%
Strobe: Variable strobe effect
Focus: motorized focus
Frost: electronic frost
DATA
Power :PowerCon connection in & out
DMX : 3pin or 5pin in & out
WEIGHT & DIMENSION
Weight: 22.5 kg
Dimension: 380*270*650mm
