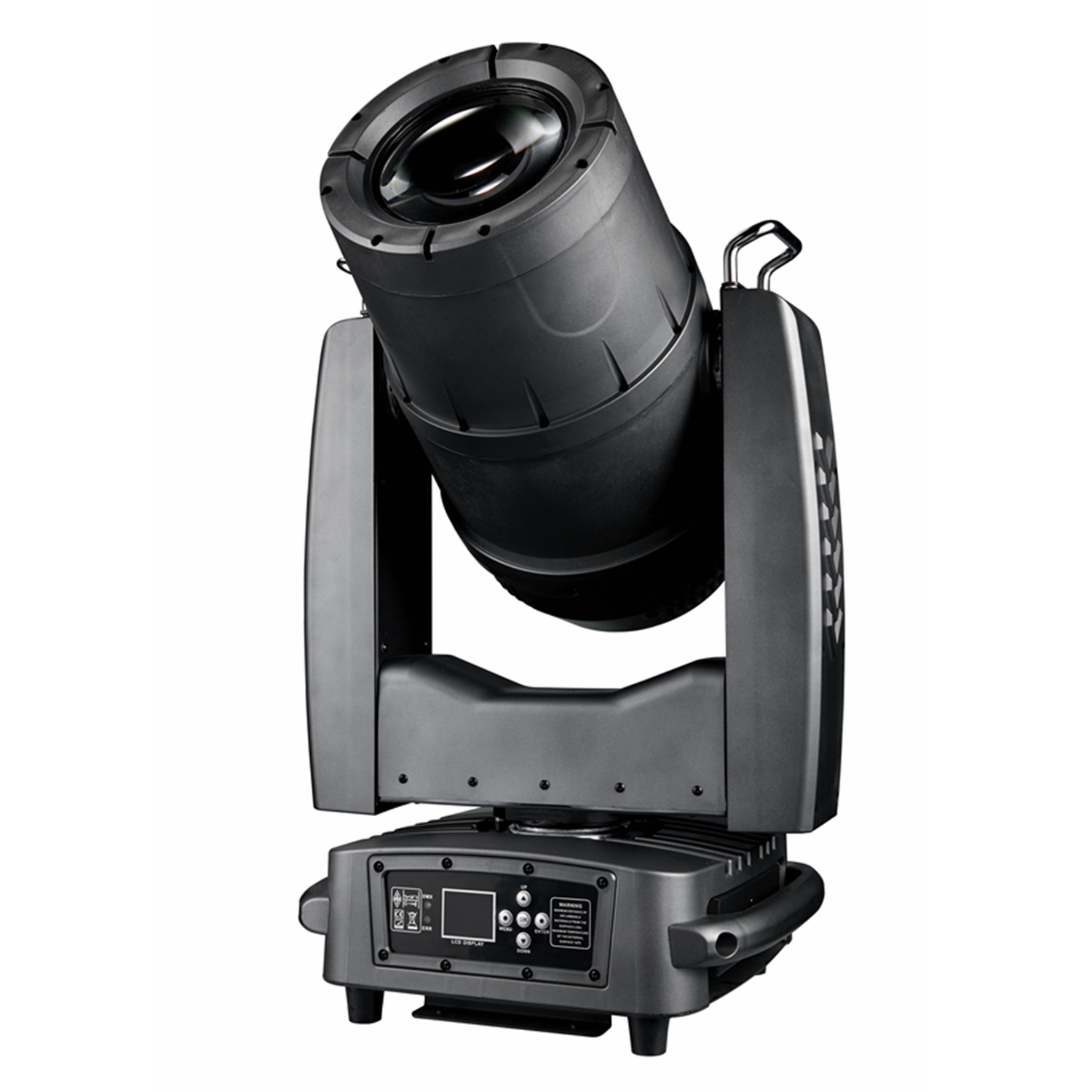

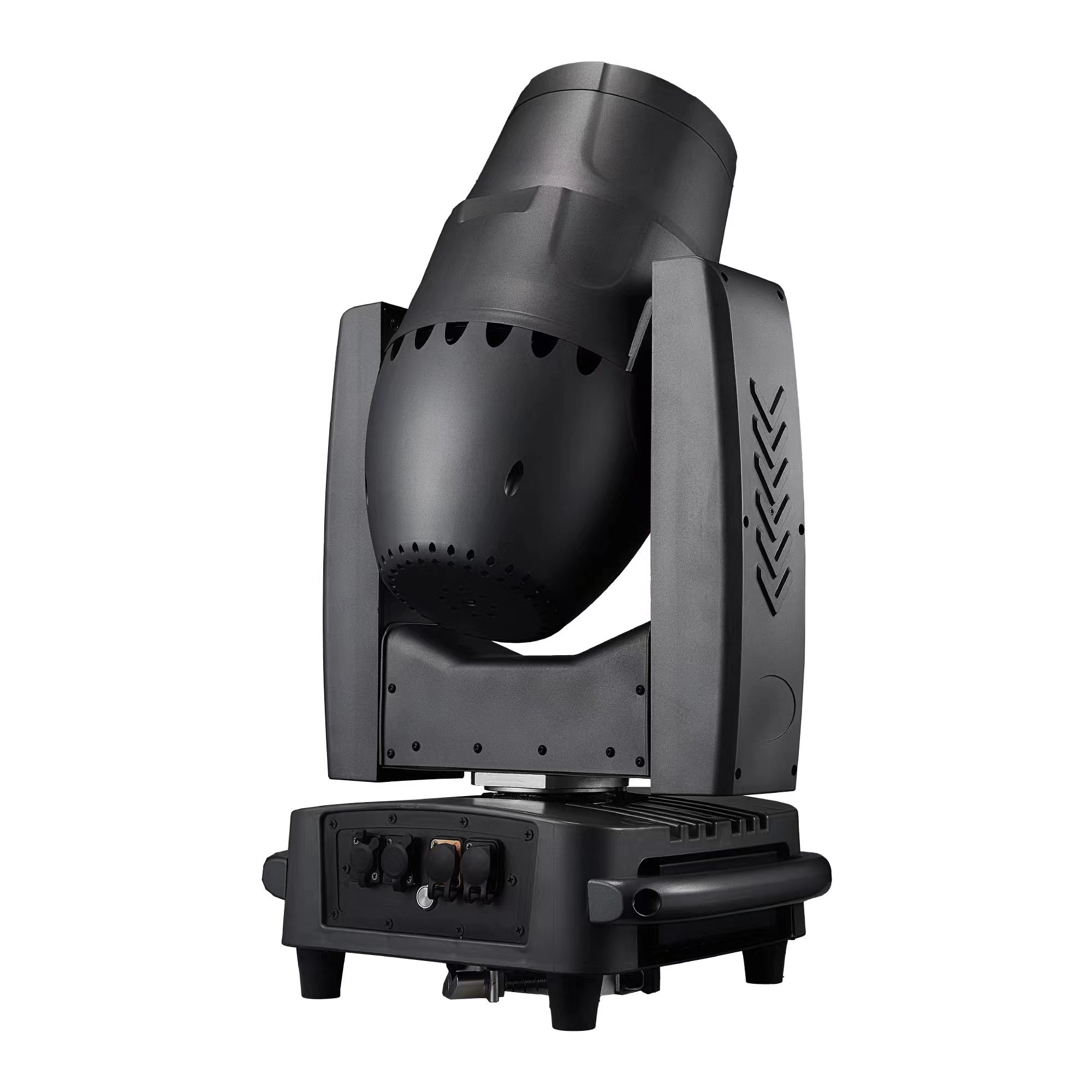

The CMY LED BSW 600 IP65 integrates a high-performance 600W LED module into a single, all-in-one fixture. Its combined optical system seamlessly switches between Beam, Wash, and Spot modes, making it an ideal solution for versatile stage, studio, and demanding outdoor applications.
With IP65 waterproof rating, it provides reliable protection against dust and water jets, ensuring durability in challenging environments. Advanced features include linear CMY + CTO color mixing, dual gobo wheels, independent rotating prisms, and high-precision movement. Control is intuitive via a 2.8-inch touch screen with bilingual support, and robust PowerCon/XLR connectivity allows for easy, daisy-chained setups.
Key Features
- 600W High-Output LED with 20,000-hour lifespan
- Beam/Wash/Spot 3-in-1 Optical System
- Linear CMY + CTO Color Mixing
- Dynamic Gobo & Prism Effects
- High-Precision 540° Pan / 270° Tilt Movement
- IP65 Waterproof Rating for Outdoor Use
- 2.8-inch Touch Screen with Bilingual Control
- Seetronic True1 Power & XLR connectors
Light Source
LED: High-performance 600W LED Module
Life Span: 20,000 Hours
Optical System
Lens Type: Combined Optical Lens (Beam/Wash/Spot 3-in-1)
Zoom Angle: 4° – 35°
Focus System: Linear adjustment (4m to 50m)
Frost System: 1 independent frost filter
Power
Input Voltage: AC 90-240V, 50/60Hz
Rated Power: 750W
Color System
Colors: 8 colors + white
Color Mixing: Linear CMY + CTO mixing system
Gobo System
Fixed Gobo Wheel: 8 fixed gobos + white + dynamic flame effect
Rotating Gobo Wheel: 7 rotating glass gobos + white; independent forward/reverse rotation
Prism & Effects
Prism System: One 8-facet prism + one 6-row prism; independent forward/reverse rotation
Strobe: High-speed, 0-30 Hz adjustable
Dimming: 0-100% linear dimming
Control
Control Modes: DMX512, RDM, Automatic, Master/Slave, Sound-Activated
DMX Channels: 26 Channels
Software: Supports online firmware upgrades
Interface: 2.8-inch Touch Screen + Physical Buttons
Languages: Chinese / English
Movement
Pan: 540° with 16-bit electronic error correction
Tilt: 270° with 16-bit electronic error correction
Physical & Environmental
Ingress Protection (IP): IP65 (Dust-tight & Protected against water jets)
Cooling: Axial fan enhanced cooling system
Operating Temperature: -20°C to 40°C
Housing Material: Metal
Product Color: Black
Connections
Power: Seetronic True 1 In & Out
Data: Seetronic 3-pin XLR DMX In & Out
Weight & Dimensions
Fixture Size : 43 x 30.6 x 71.8 cm
Packaging Size: 56 x 51 x 72 cm
Net Weight: 30 kg
