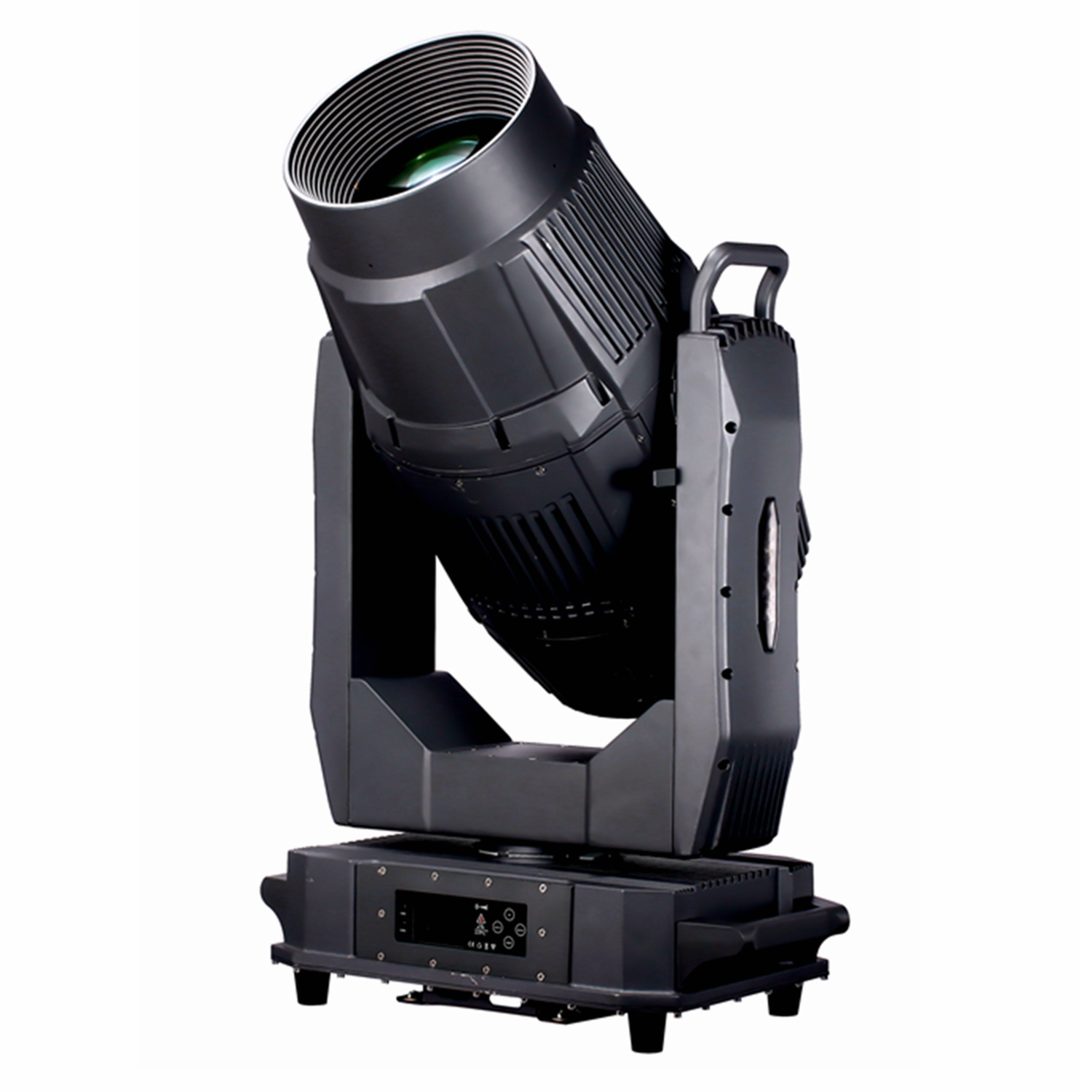

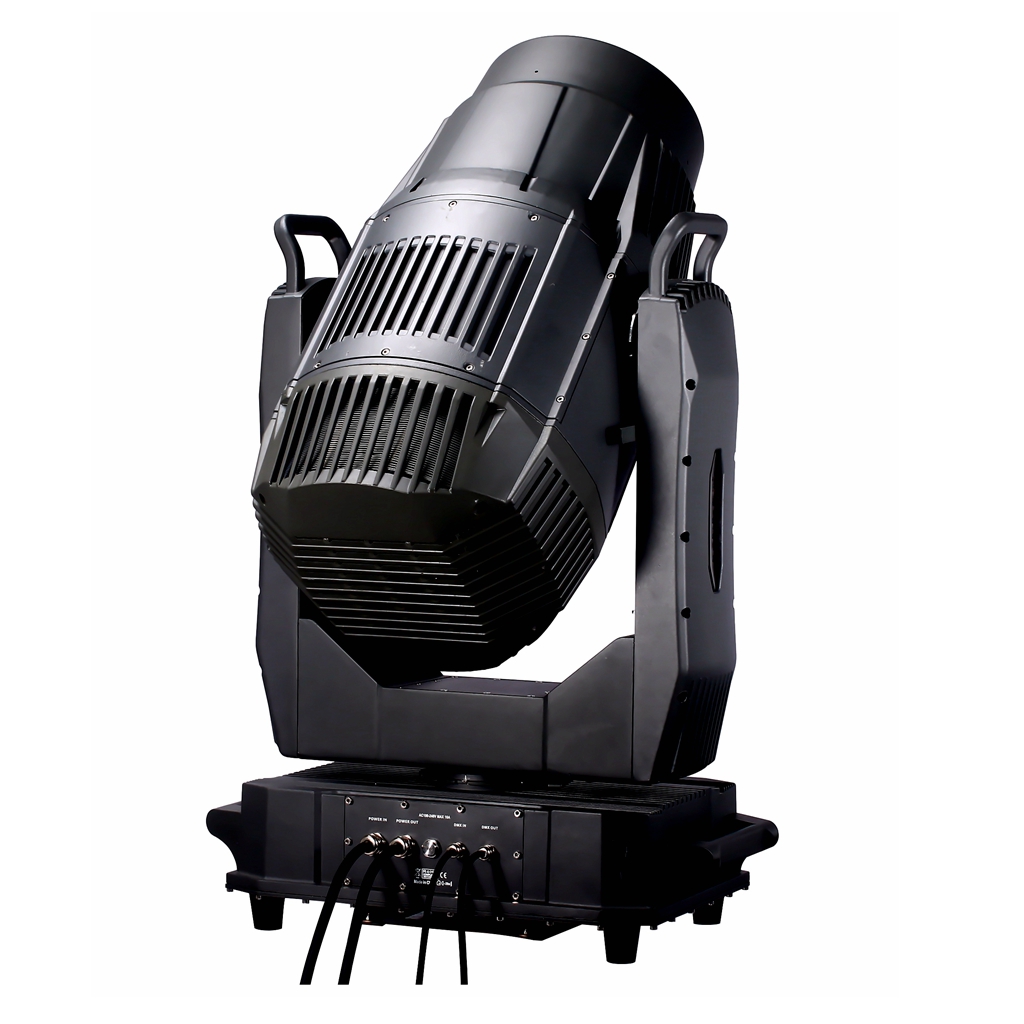

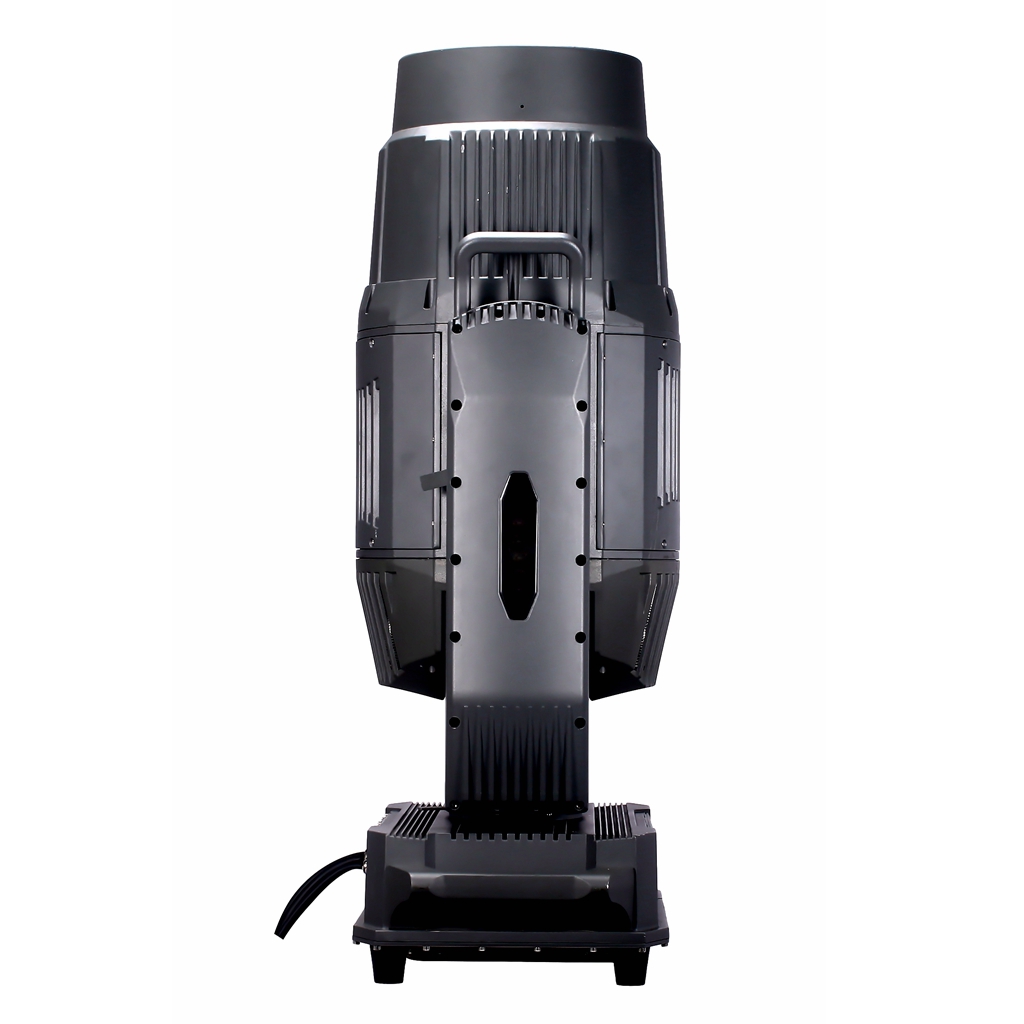

The LED 4IN1 BSWF 1000IP is a multifaceted, LED profile spot wash beam fixture that we designed to deliver the performance to take on the outdoors in all weather conditions. Rated IP65, fixture’s powerful 1000W white LED engine delivers super high lumens at a native 8000K color temperature.
The unit has a CMY color mixing system, fixed color wheel with 7colors and offers a linear CTO system from 2800K to 6800K. For effects, ithas one rotating gobo wheel with seven, high-precision rotating gobos , a static gobo wheel with five gobos, a bidirectional animation wheel with numerous effects, 3-facet prism , iris, and 4-blade shutter system that provides full blackout and rotates in both directions , and light and medium frost filters. The fixture features a zoom range of 6 to 45 degree and produces sharp, crisp images throughout its range.
The LED 4IN1 BSWF 1000IP is rated at IP65, making it suitable for outdoor use. Whether on stage or for outdoor events, the powerful fixture produces colorful and dazzling lighting effects, delivering the performance you expect from a fixture of this caliber.
Key points:
- Fits a powerful 1000W LED engine and its front lens is 180mm diameter Color Temperature: 7,000K
- high CRI mode lumen output up to 36,000 lm
- High CRI mode Ra>90
- Linear CMY color mixing
- Excellent color macro effect
- Variable CTO: 2800K-6800K
- Static gobo wheel: 1 static gobo wheel with 5gobos
- Rotating gobo wheel: 1 rotating gobo wheel with 7 gobos, convenient replacment
- Color wheel: 1 color wheel with 7colors
- Prisms: 1pc 3-facet prism can rotate in either direction
- Beam Angle: 6°-45°
- Frost: 2 different frost filters to create and improve the wash effect. They can be used independently and overlayed
- Motorized linear Iris 4 x fast and smooth framing shutters;
- The position and the angle of each shutter blade can be controlled individually; Each shutter blade can block out light completely;
- The framing module can rotate at ±60 degrees
- Flicker free management
- Water-proof and oil-proof design
Specification :
LIGHT SOURCE
LED : 1000W White LED engine
Life Span: 10000Hrs
Color temperature: 8000K
OPTICAL SYSTEM
Lens :High precision Lens
Beam Angle:6-45°
POWER
Power Supply: AC 90-250V, 50/60Hz
Power Consumption: 1200W
PHOTOMETRIC DATA
Lumen:36000 lx@1m
COLOR SYSTEM
Color Wheel : one color wheel, 7 colors+ Open
GOBO SYSTEM
One static gobo wheel: 5 gobos + open
One rotating gobo wheel: 7 gobos + open, interchangeable, indexable
One animation wheel: dynamic effect like flame or water, etc.
PRISM SYSTEM
Prism :3 facet linear prism
CMY SYSTEM
Independent CMY, with linear color change, limitless color mixing
CTO SYSTEM
Independent CTO, color temperature can be linear adjusted
CONTROL
Control Mode: DMX512, RDM, master-slave, sound activated or auto operation,
DMX Channels:33CHS
PHYSICAL
Display: LCD Menu Display+4 buttons
Protect Rate: IP25
Color :Black
Pan :540°
Pan resolution :16bit
Tilt :270°
Tilt :resolution :16bit
PAN/TILT reversible and scan position memory, auto reposition after unexpected movement.
Dimmer: 0-100%
Iris: 5%-100% motorized linear iris adjustment
Strobe: Variable strobe effect
Focus: 35°-45° With frost effect, with 3 frost lever-heavy, medium and light
Frost: electronic frost
DATA
Power :IP65 connection in & out
DMX : 3pin or 5pin in & out
WEIGHT & DIMENSION
Weight: 66kg
Packing size: 546*301*902MM
