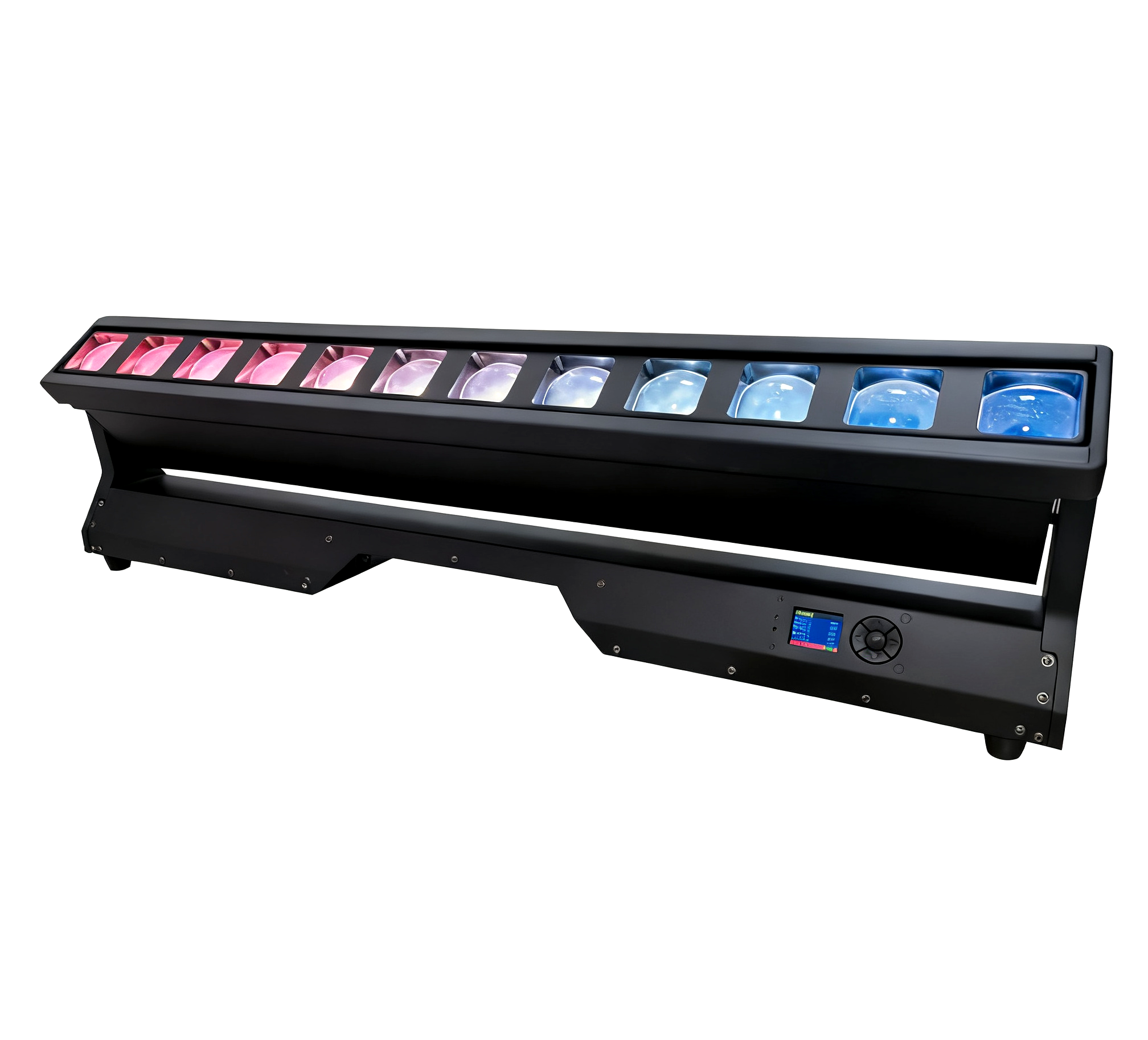

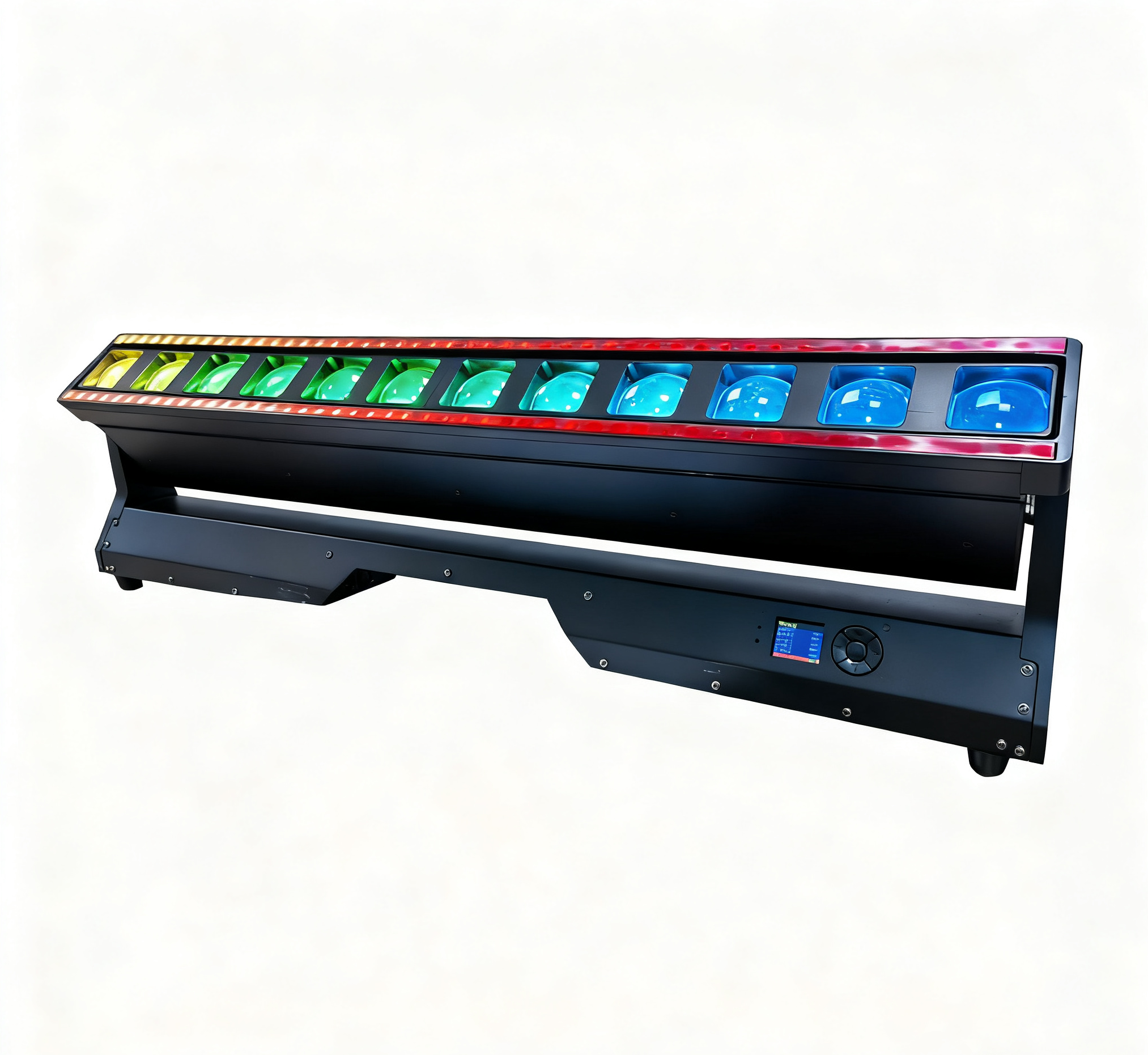

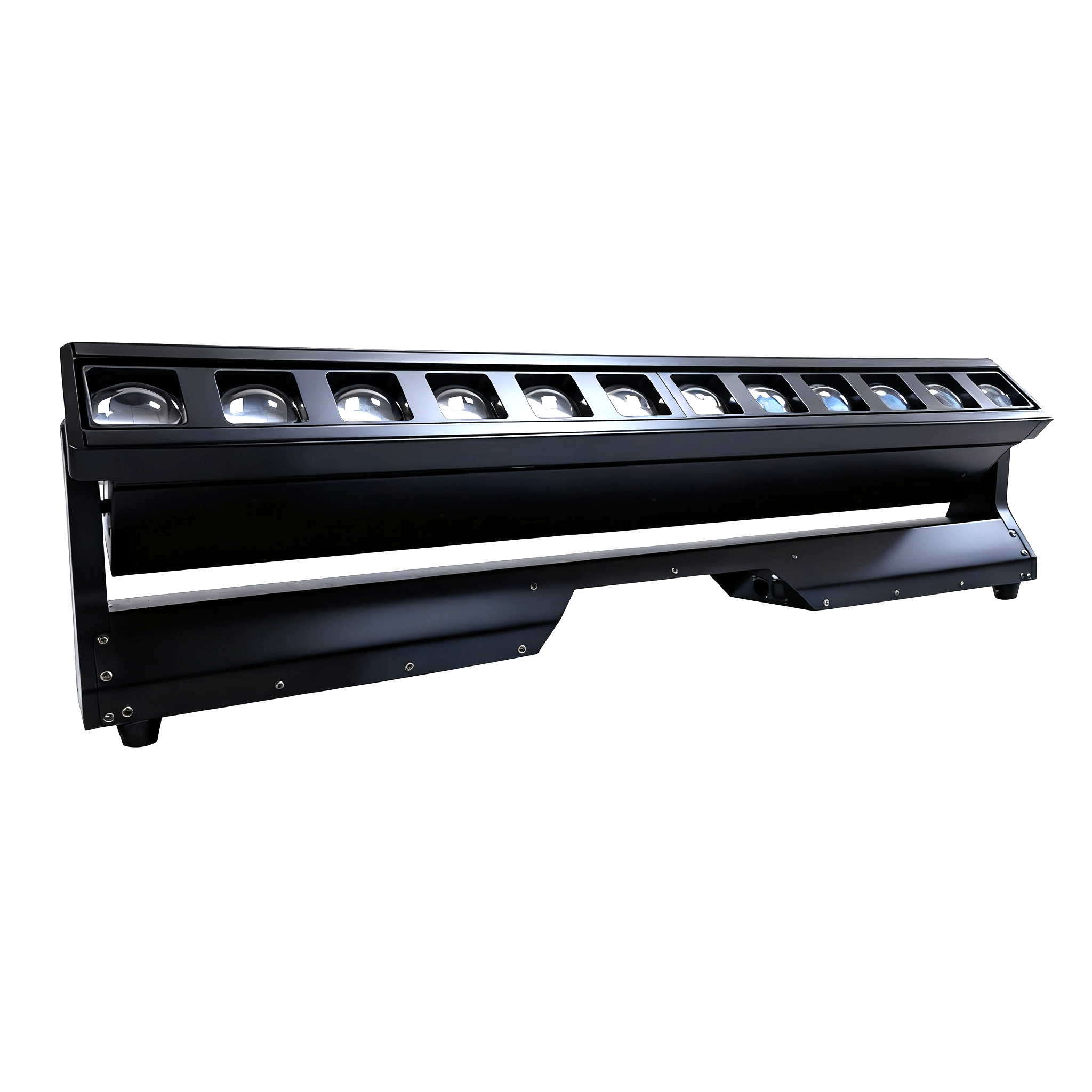

LED BAR ZOOM 12*40 R , adopts 12pcs 40Watts RGBW 4-IN-1 Led chips with 144pcs 0.3Watts 3in1 5050 leds. The unique optical system offers outstanding RGBW beam effect and color chasing/strobe ring functions. Single LED and each color is a pixel that could be controlled individually, with more that 100 color-mixing functions, allows users to create a luminaire set and control each light in each direction. LED Beam 12*40 with default pixel macro function. This feature could create an amazing streaming effect, slow to fast. It provides different kinds of variable speed shutter/strobe effect, virtual color macro effect. Available for vertical and horizontal plug-in,compact body, make installations fast and easy. It is nice choice for mobile applications or for fixed installations at Christamas party, amusement parks, concert, and ceremony, etc.
Key points:
- 12PCS *40Watts RGBW 4IN1 LED
- 144PCS *0.3Watts RGB 3IN1 5050 LED
- 12PCS leds: each LEDs can be single controlled
- 144PCS leds: 24 sections, each section can be single controlled
- Color chasing& strobe ring efect
- Zoom angle: 3-40°
- 0-230°/16bitTilt moving angle, Fast and smooth movement.
- RGBW color mixing system,excellent color mixing effect and rainbow effect
- 5 DMX channel modes:26/38/62/74/194CH
- 0-100% linear dimmer
- Extremely quiet different working state
- High efficiency, low power consumption, long lifetime
- Pixel color chasing effect
- Pre-programmed random strobe and pulse effects
- Built-in programs with macro effects
- DMX512, master-slave and sound activated controllable or auto operation
Specification :
LIGHT SOURCE
LED : 12 pieces 40W RGBW 4in1 LED+144 pieces 0.3W RGB 3in1 LED
LED brand :TIANXIN
Life Span: 50000Hrs
OPTICAL SYSTEM
Beam Angel: 3-40°
POWER
Power Supply: AC 90-260V, 50/60Hz
Power Consumption: 500W
PHOTOMETRIC DATA
Lumen: 36200 lux@2m
CONTROL
Control Mode: DMX512, master-slave, sound activated or auto operation
DMX Channels:26/38/62/74/194CHs
Multi preset internal programs
PHYSICAL
Display: LCD Menu Display+5 buttons
Protect Rate: IP20
Housing : Flame-retardant thermoplastic
Color :Black
Tilt : 0-230° rotation
Tilt :resolution :16bit
Dimmer: 0-100%
Strobe: 0~20HZ
DATA
Power :PowerCon connection in & out
DMX : 3pin or 5pin in & out
WEIGHT & DIMENSION
Weight: 12kg
Dimension:109*10*23cm
