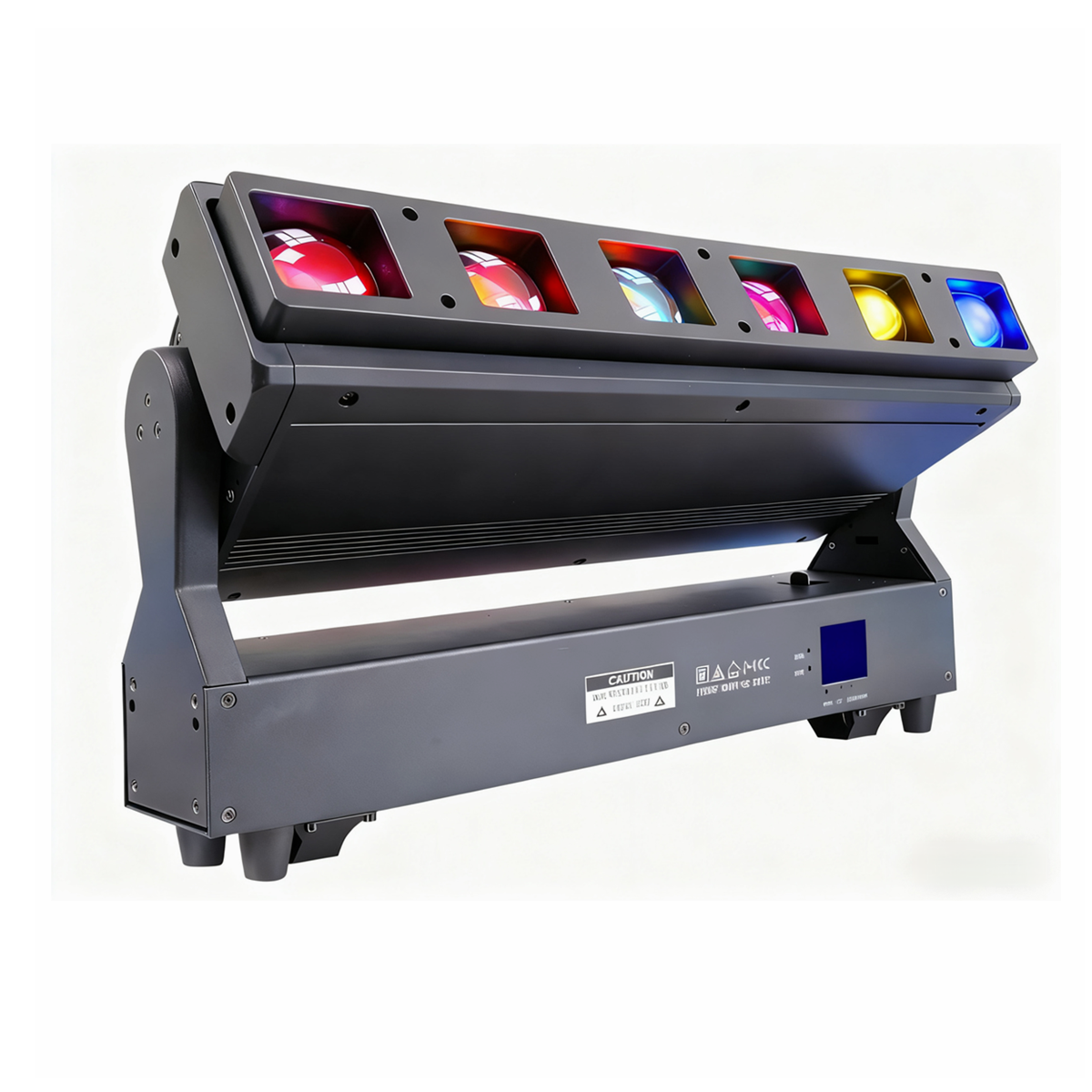

LED Beam 6*40 is a linear LED moving head bar light, installed 6pcs 40Watts Led chips, unique appearance design, providing high efficiency, low power consumption, 50.000hours life span. the new unique optical system offers a large zoom range. 4°tight beam angle to output high brightness light array. 37°wide zoom rang offers excellent wash function. Single LED be allowed to individully controled, and four in one RGBW LED sources to create an endless range of color variations. With smooth 0-270°movement & fast operating speed, allows users to create a luminaire set and control each light in each direction. It provides different kinds of variable speed shutter/strobe effect, virtual color macro effect. It is nice choice for mobile applications or for fixed installations at Christamas party, amusement parks, concert, and ceremony, etc.
Key points:
- 6PCS *40Watts RGBW 4IN1 LED
- Each LEDs can be single controlled
- Zoom range 4°-37°
- 0-270°/16bitTilt moving angle, Fast and smooth movement.
- RGBW color mixing system,excellent color mixing effect and rainbow effect
- 3 DMX channel mode:18/32CH
- 0-100% linear dimmer
- Extremely quiet different working state
- High efficiency, low power consumption, long lifetime
- Pixel color chasing effect
- Pre-programmed random strobe and pulse effects
- Built-in programs with macro effects
- DMX512, master-slave and sound activated controllable or auto operation
Specification :
LIGHT SOURCE
LED : 6 pieces 40W RGBW 4in1 LED
LED brand :TIANXIN
Life Span: 50000Hrs
OPTICAL SYSTEM
4°-37° Zoom range
Two independent zoom zone
POWER
Power Supply: AC 90-260V, 50/60Hz
Power Consumption:300W
PHOTOMETRIC DATA
Lumen: 5200 lux@2m
CONTROL
Control Mode: DMX512, master-slave, sound activated or auto operation
DMX Channels:20/57CHS
Multi preset internal programs
PHYSICAL
Display: LCD Menu Display+4 buttons
Protect Rate: IP20
Housing : Flame-retardant thermoplastic
Color :Black
Tilt : 0-270° rotation
Tilt :resolution :16bit
Dimmer: 0-100%
Strobe: 0~20HZ
DATA

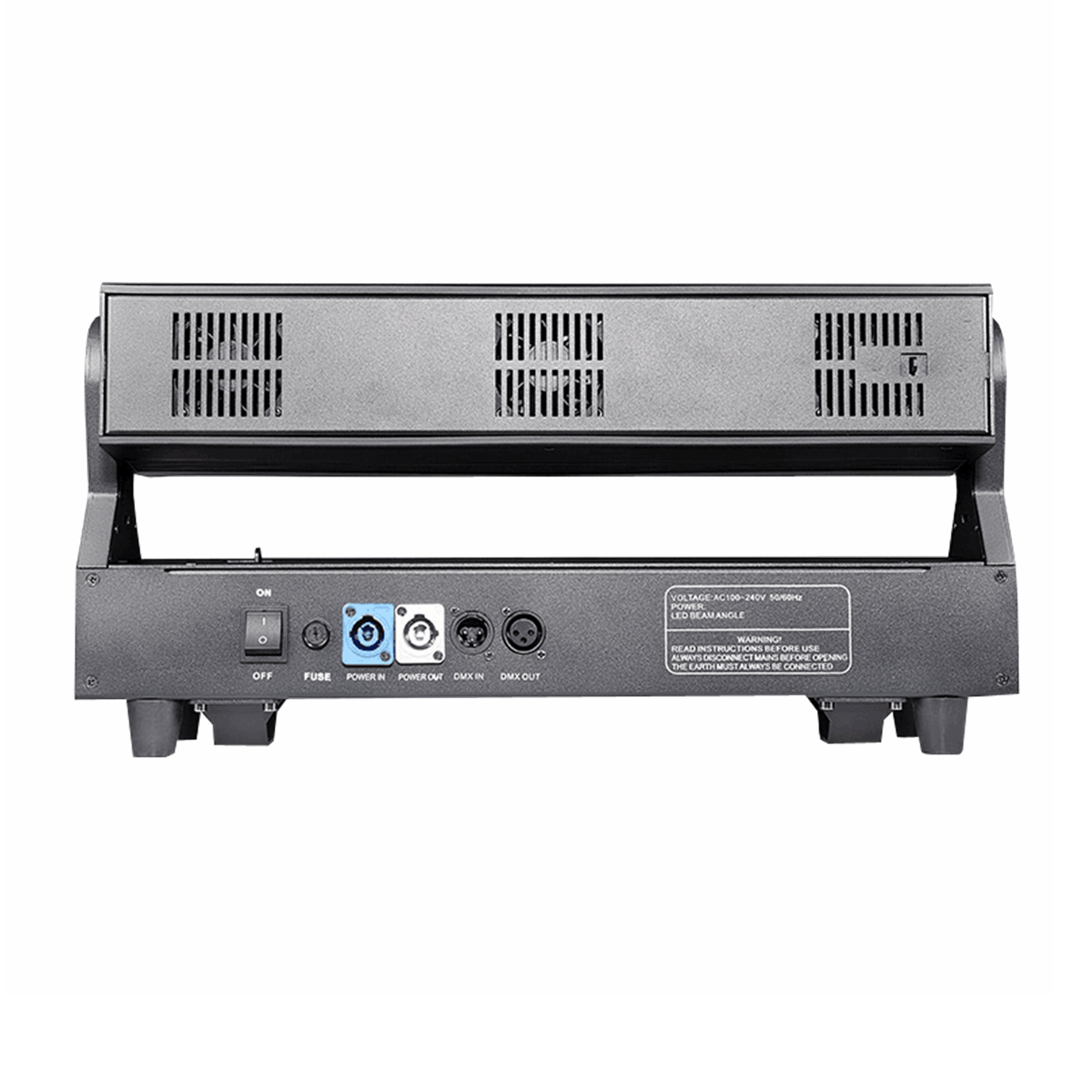

Power :PowerCon connection in & out
DMX : 3pin or 5pin in & out
WEIGHT & DIMENSION
Weight: 9.35kg
Dimension:59x20x39CM
