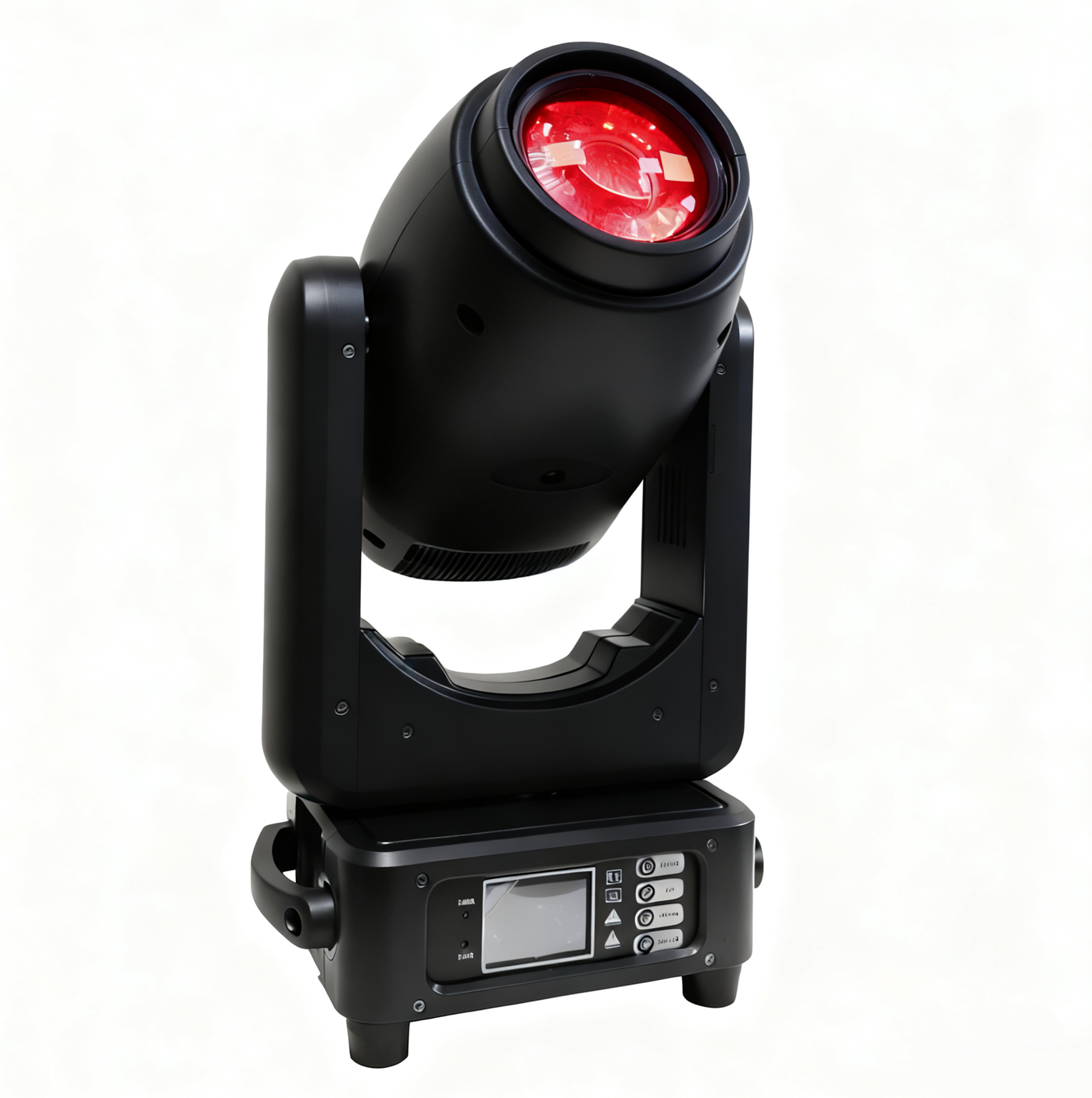

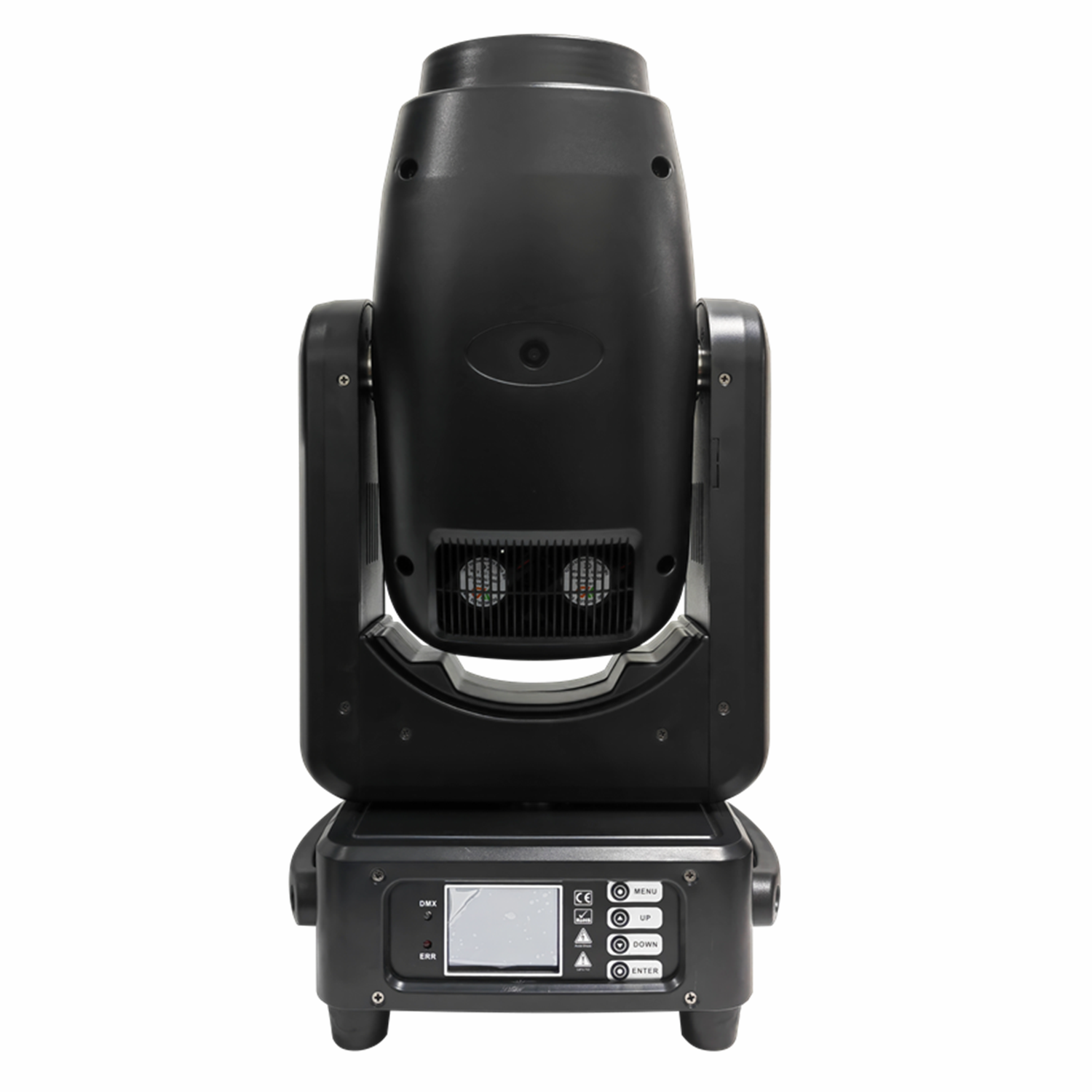

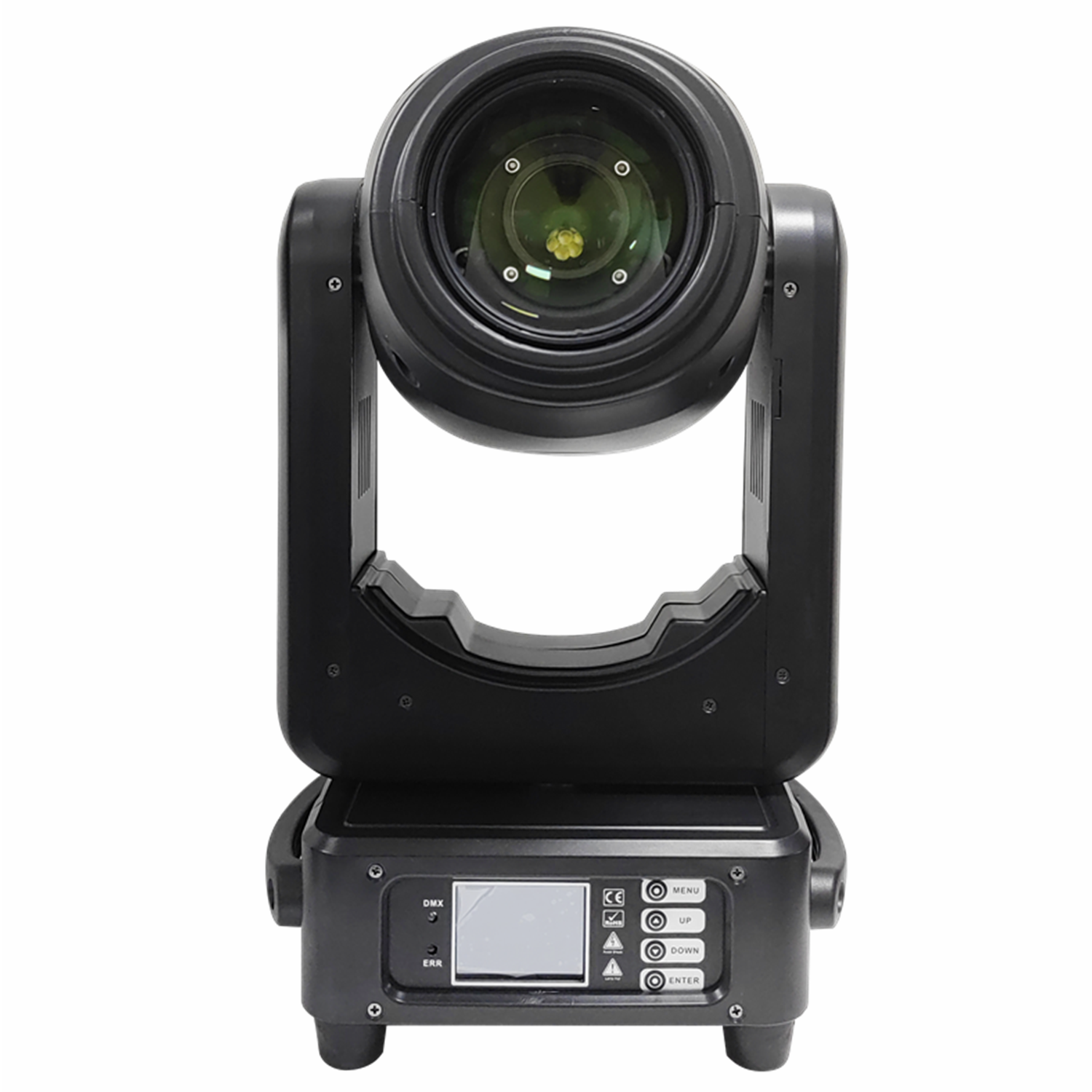

LED BSW 300 , installed 1pc of 300W white LED module.Equiped a set of high resolution and precise optics and a wide range of zoom system 7°- 35° plus fast and smooth linear dimmer system ,delivers ultra high light output clear and even spot coverage. Pan/Tilt rotation chooses three-phase motor which can respond speedily and smoothly.It has a rotate Gobo wheel in 7 rotating, indexable and replaceable gobos, each gobo can work with individual color wheel to reach rainbow effect ,and a static Gobo wheel in7gobos . It provides different kinds of variable effect by 8-facet rotating prism (bi-directionally rotatable at variable speeds).Temperature protect function, when the internal Temperature is up to 40°and then the fans begin to work, when the internal temperature is up to 70°and the brightness reduce half.
The 1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy. In addition,this fixture is equiped with proper LED refresh rate for flicker free operation for TV and FILM. It is nice choice for mobile applications or for fixed installations at TV studio event,small or large scare of concert ,show event etc.
Key points:
- 300W High Output White LED module
- 50,000 hours lifespan and low power consumption
- Beam Angle 7°- 35°.the gobo output is crystal clear and brilliant
- High light output
- Extremely quiet different working state
- High efficiency, low power consumption, long lifetime
- Temperature protect function, when the internal Temperature is up to 40°
- Scan position memory, auto reposition after unexpected movement
- High speed strobe effect with 1-25 flashers per second
- Built-in programs with macro effects
- 16/20 DMX Channels USITT DMX-512
- DMX 512, master-slave and sound activated controllable or auto operation
- Colorful LCD display
- Efficient low noise fan cooling system
- POWERCON IN/OUT
- Auto-switching power supply that can accommodate a wide range of input voltages
Specification :
LIGHT SOURCE
LED : 300W White LED module
LED brand :Lumileds
Life Span: 50000Hrs
Color temperature: 8500K
OPTICAL SYSTEM
Lens :High precision Lens
Beam Angle:7-35°
POWER
Power Supply: AC 90-260V, 50/60Hz
Power Consumption: 500W
PHOTOMETRIC DATA
Lumen:56550 lux@2m
COLOR SYSTEM
Color Wheel : 9color+half-flitter .Variable direction rainbow effect with speed adjustable
GOBO SYSTEM
Static Gobo wheel: 7 gobos + open
Rotate Gobo wheel: 7 rotating, indexable and replaceable, each gobo can work with individual color wheel to reach rainbow effect.
PRISM SYSTEM
Prism :8-facet Prism, bi-directionally rotatable at variable speeds
CONTROL
Control Mode: DMX512, master-slave, sound activated or auto operation,
DMX Channels:20CH and 16CH
PHYSICAL
Display: LCD Menu Display+4 buttons
Protect Rate: IP20
Housing : Flame-retardant thermoplastic
Color :Black
Pan :540°
Pan resolution :16bit
Tilt :270°
Tilt :resolution :16bit
PAN/TILT reversible and scan position memory, auto reposition after unexpected movement.
Dimmer: 0-100%
Strobe: Variable strobe effect
Focus: motorized focus
Frost: electronic frost
DATA

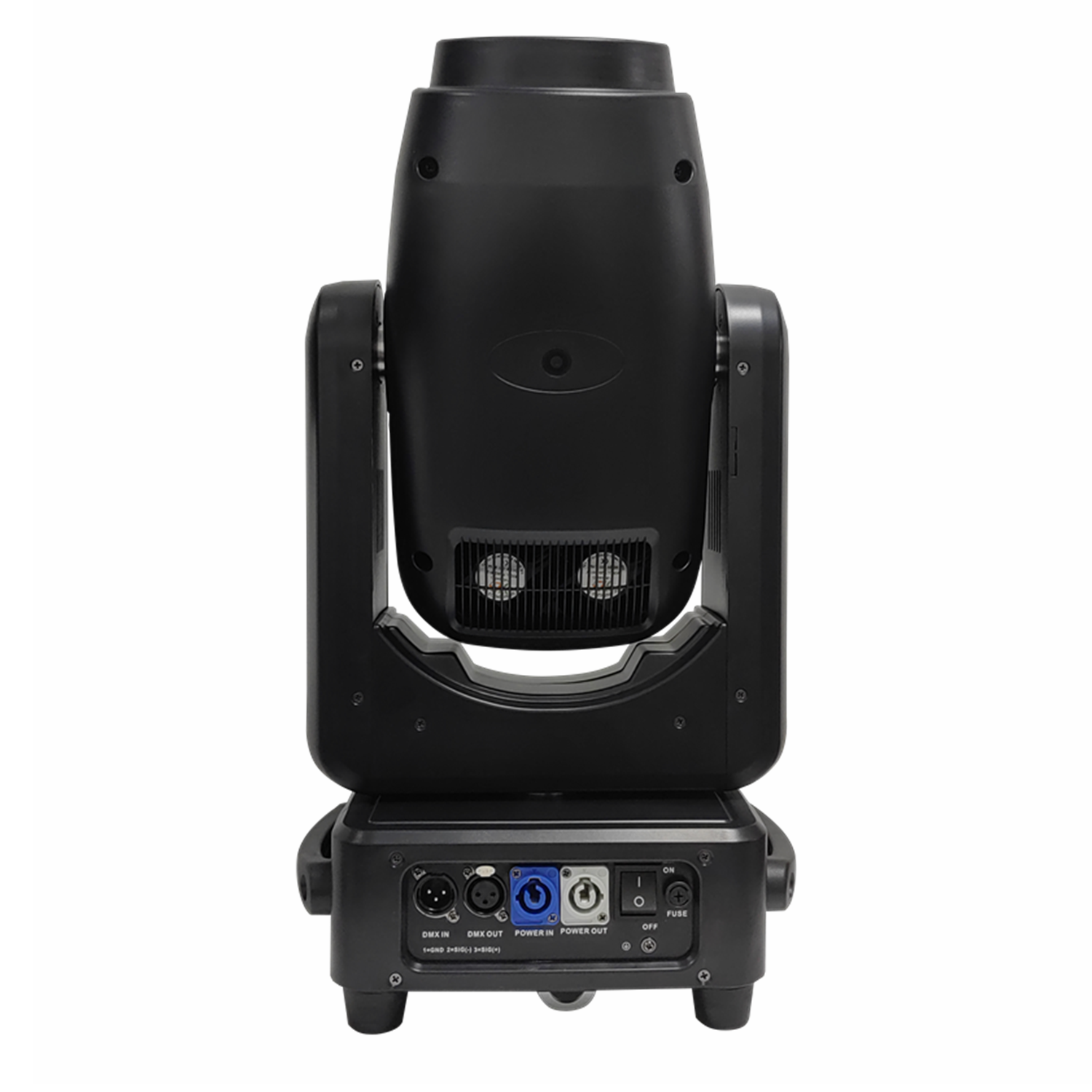

Power :PowerCon connection in & out
DMX : 3pin or 5pin in & out
WEIGHT & DIMENSION
Weight: 14.5 kg
