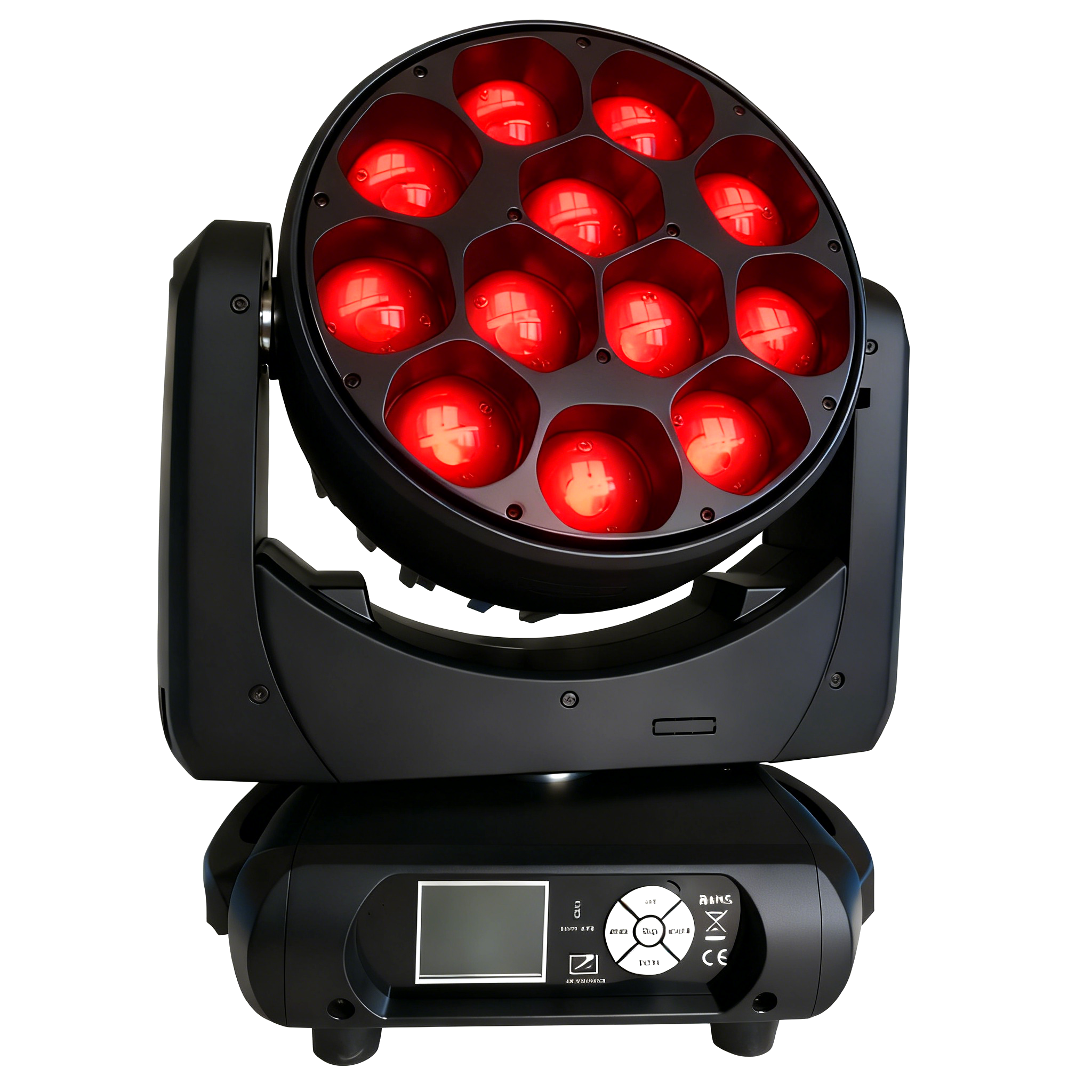

The Zoom moving head 12*40W is an ultra high power LED wash and zoom moving head light. It is an upgrade to led wash lights. Compared to the traditional led wash moving head light, it has a significant change in brightness, because of the Osram 40W leds. In addition to the breakthrough in brightness, it also has a quiet, fast and smooth 4.5-45 ° zoom .Although the ultra-high power does not degrade its use, we have made some improvements in the cooling system. It has efficient cooling system, temperature monitoring, over temperature automatic adjustment protection. This allows the product to maintain stable performance and reduce the risk of damage during long hours of operation.
Key points:
● OSRAM 12*40W RGBW 4in1 LEDs
● Zoom angle: 4.5-45°
● Efficient cooling system, temperature monitoring, over temperature automatic adjustment protection, less lamp damage of risk.
Specification:
LIGHT SOURCE
LED:12pcs 40W RGBW 4in1 LEDs
LED brand: Osram
LED Average Life: 50,000 h
Color temperature：2500K-8000K
POWER
Power Supply: AC110-240V 50/60 Hz
Power Consumption: 600W
EFFECT
Wash/zoom
4 Liner dimming curves
Strobe: 1-25 hz, random and pulse flash
0-100% linear electronic dimmer
OPTICAL SYSTEM
Beam Angle: 4.5°-45° Electronic Zoom Range
CONTROL
Control Mode: DMX512/master-slave/sound/auto
Overall control DMX channel: 12/17CH
Pan/Tilt: 540/270°
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
DATA
Power: PowerCon connection in & out
DMX: 3pin or 5pin in & out
HANGING SYSTEM:
With fast-lock omega clamps (1/4 turn) on the base
WEIGHT & DIMENSION
Weight: 14.5kgs
Dimension: 460*430*550mm
