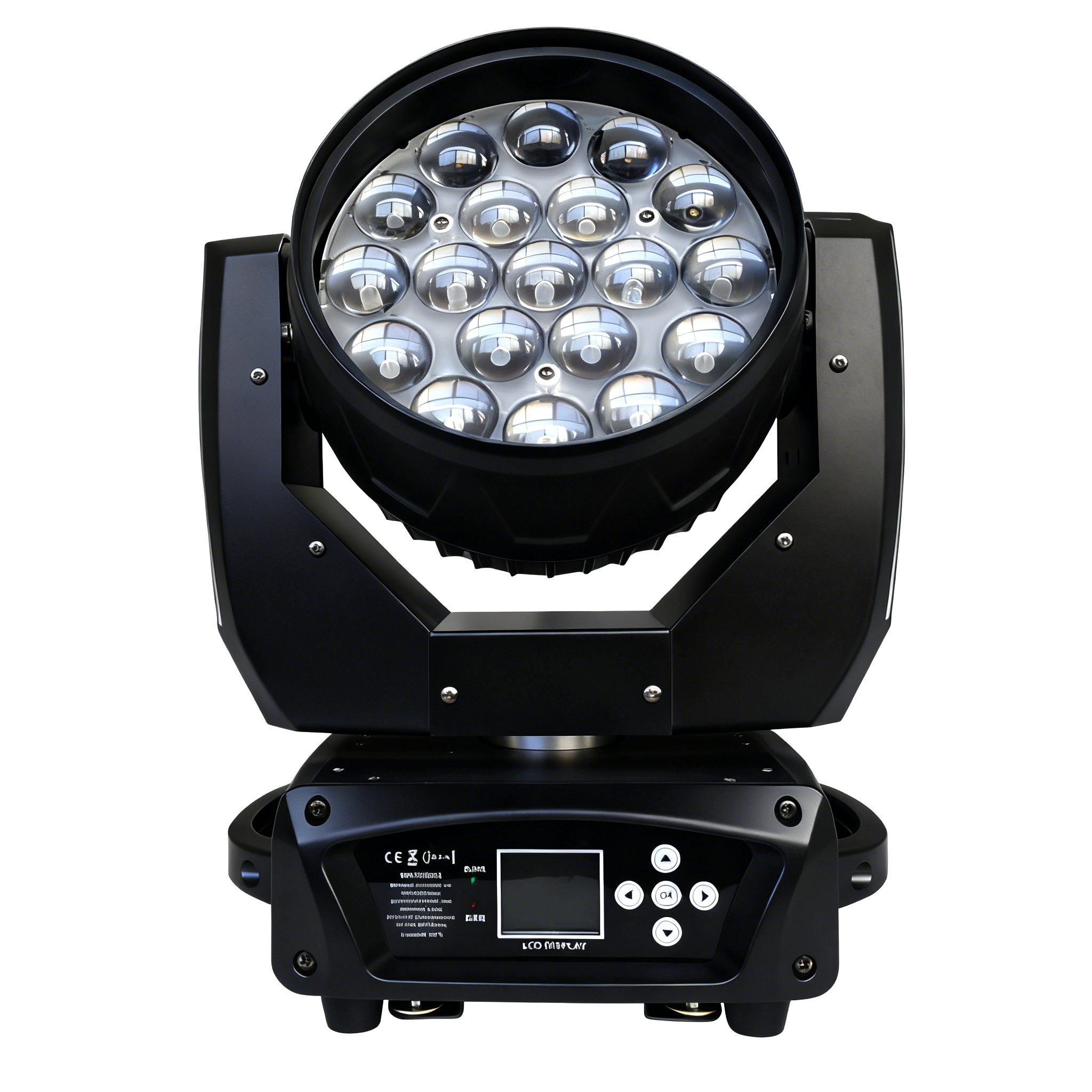

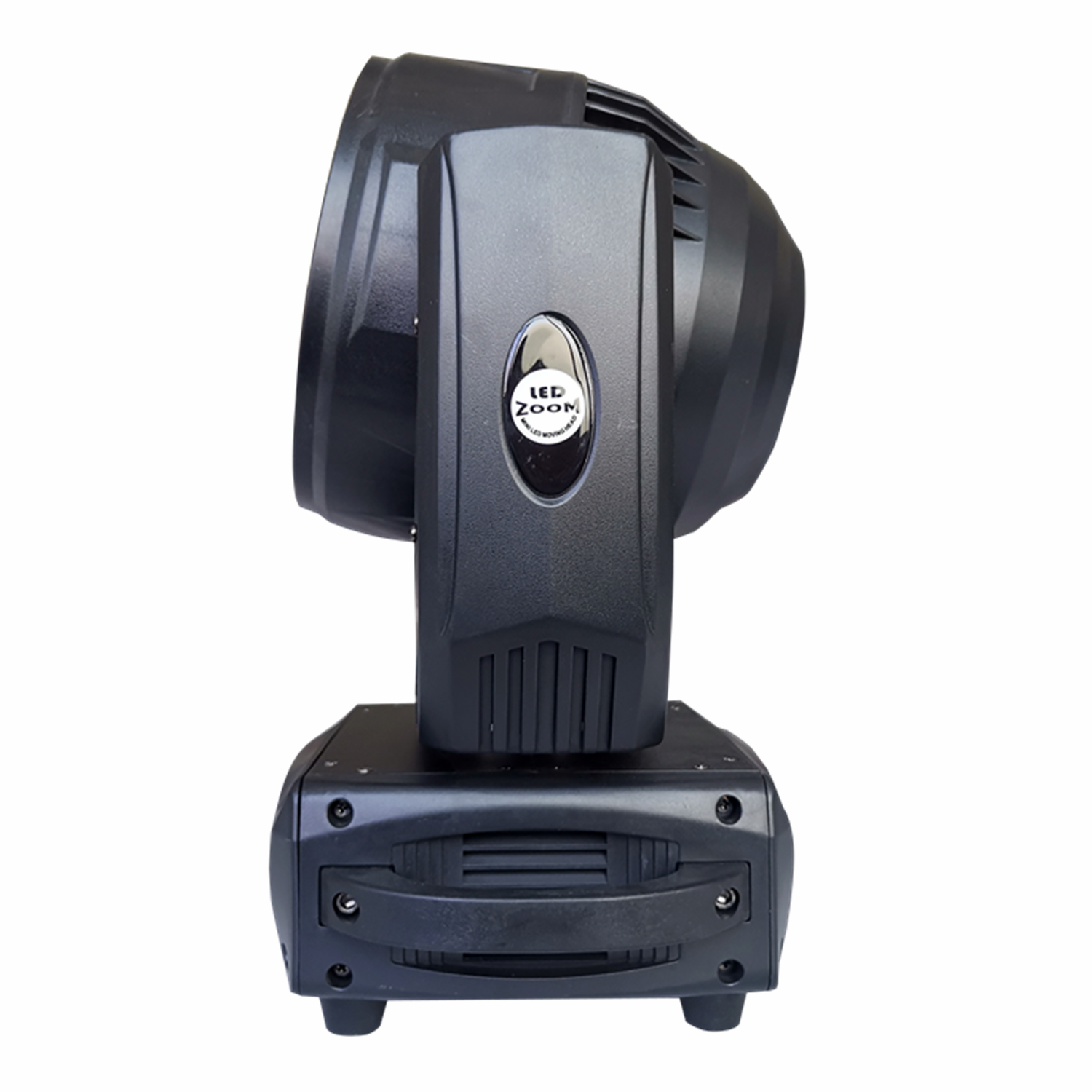

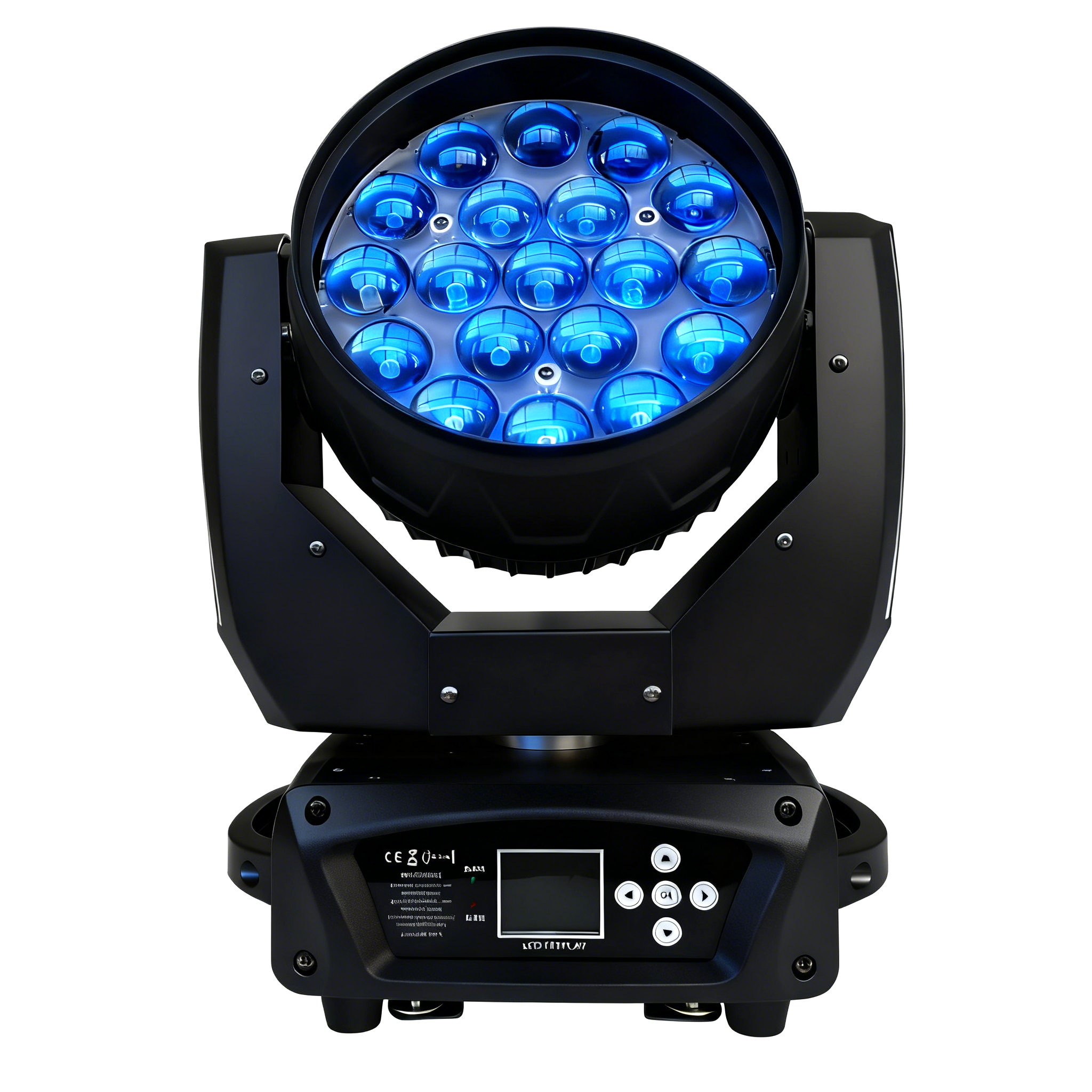

The Wash 19x15W is an ultra high power LED based moving head wash light with compact stylish housing and smart operating systerm .Equiped 19pcs 15W Osram RGBW quad-color LEDs,With wash single-lens systerm & quad-color OSRAM LEDs,19x15W Aura works with superior color-mixing & a broad range of shades,offers you saturated colors &authentic warm & cool white. This is a perfect wash moving head when zoom up to 58° and works as a beam light when zoom down to 8°,thanks for the unique 3-motors zoom systerm,offeres you wide angle Wash or a tight beam for high intensity output and extremely quiet in different working state.
Key points:
- 19*15W Osram RGBW Leds
- Single-lens wash with fully premixed color
- A wide zoom angle 8-58° by 3-motors zoom systerm
- Fast and smooth movement
- RGBW color mixing system
- LED shutter and led dimming,32bit of dimming, flicker-free
- Extremely quiet different working state
- Temperature detection system（The machine doesn’t work if the temperature detection error happened.）
- 14/26CH two DMX models can be choosen
- High efficiency, low power consumption, long lifetime
- Low noise and efficient FAN cooling system
- Scan position memory, auto reposition after unexpected movement
- Pre-programmed random strobe and pulse effects
- Built-in programs with macro effects
- DMX512, master-slave and sound activated controllable or auto operation
- Auto-switching power supply that can accommodate a wide range of input voltages
Specification :
LIGHT SOURCE
LED : 19x15W RGBW 4in1 LEDs
LED brand :OSRAM
Life Span: 50000Hrs
OPTICAL SYSTEM
Lens :Single-lens systerm
Zoom Angle:8-58° (8° for LED beam , 58°for LED wash )
Zoom systerm :3 motorized zoom motor
Optimized light pipe for getting higher LED efficiency
POWER
Power Supply: AC 90-260V, 50/60Hz
Power Consumption: 300W
PHOTOMETRIC DATA
Zoom 8° Lumen: 26470 lux@2m
Zoom 58°Lumen:5294 lux@2m
CONTROL
Control Mode: DMX512, master-slave, sound activated or auto operation
DMX Channels:14/26 CHS Two DMX models
Multi preset internal programs
RDM available (Remote Device Management)
PHYSICAL
Display: LCD Menu Display+5 buttons
Protect Rate: IP20
Housing : Flame-retardant thermoplastic
Color :Black(White is available)
Pan :540 degree
Pan resolution :16bit
Tilt :240 degree
Tilt :resolution :16bit
Dimmer: 0-100%
Strobe: 0~20HZ
DATA
Power :PowerCon connection in & out
DMX : 3pin or 5pin in & out
WEIGHT & DIMENSION
Weight: 8 kg
Dimension: 310*220*380mm
