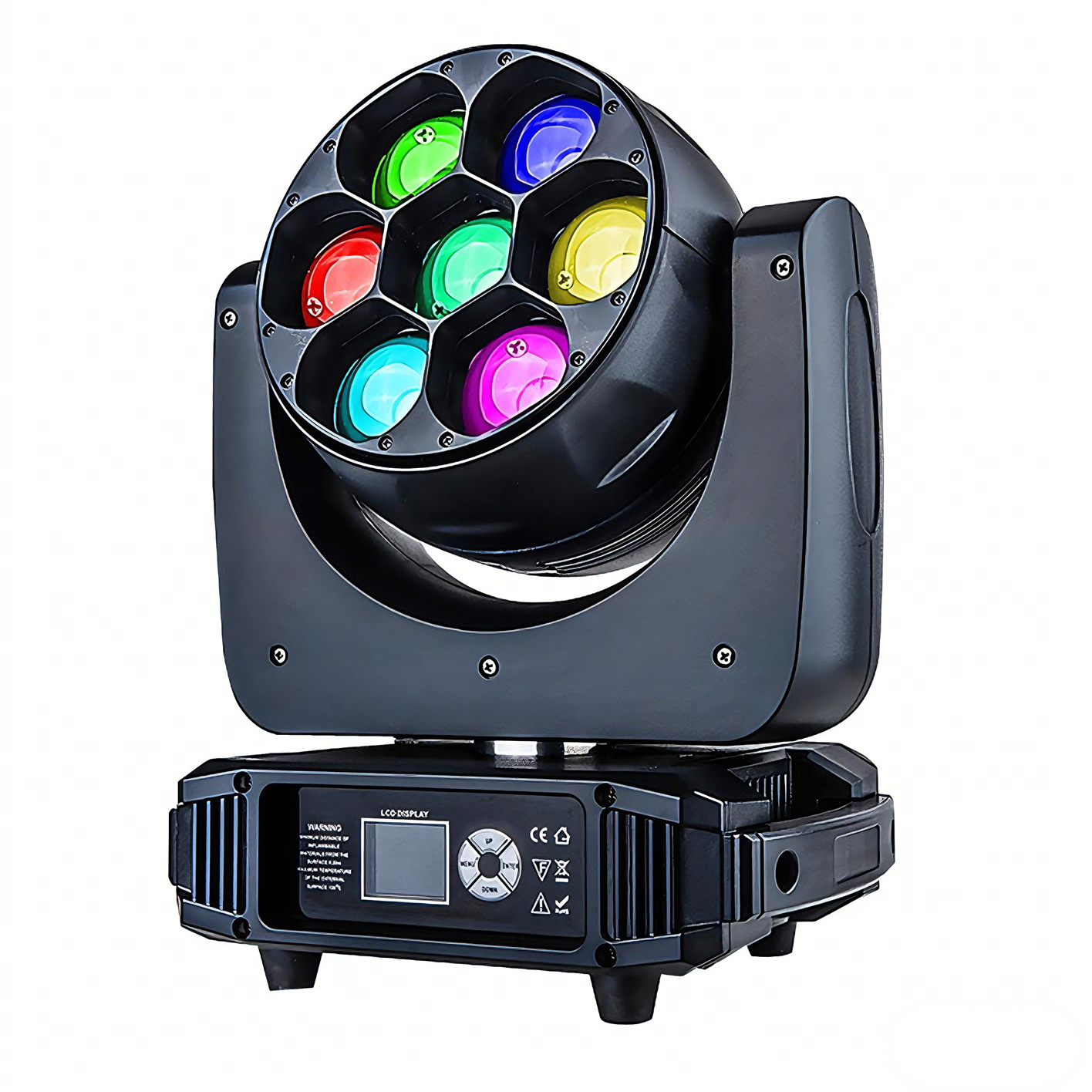

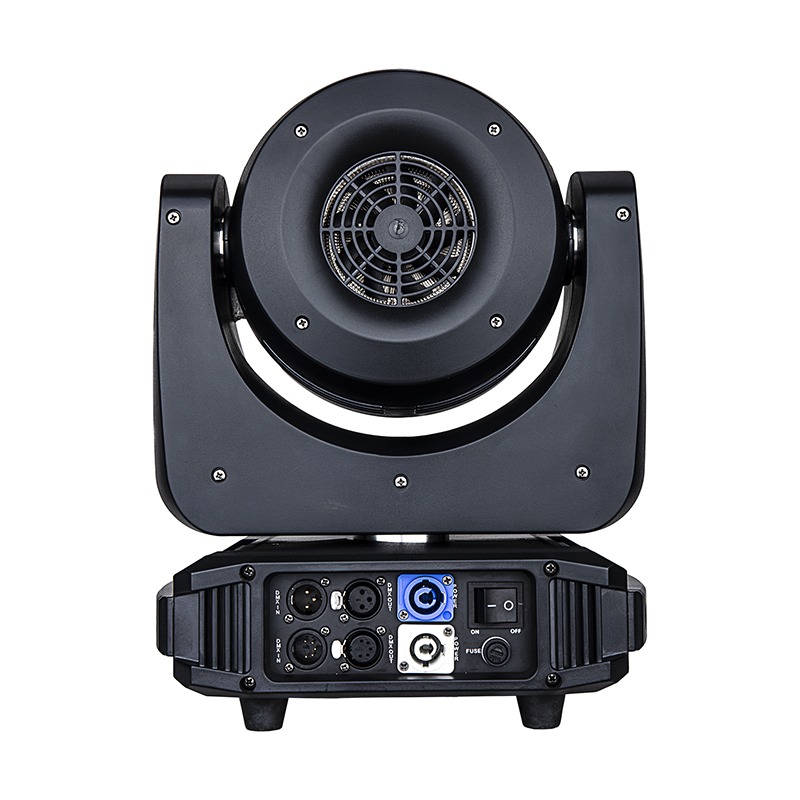

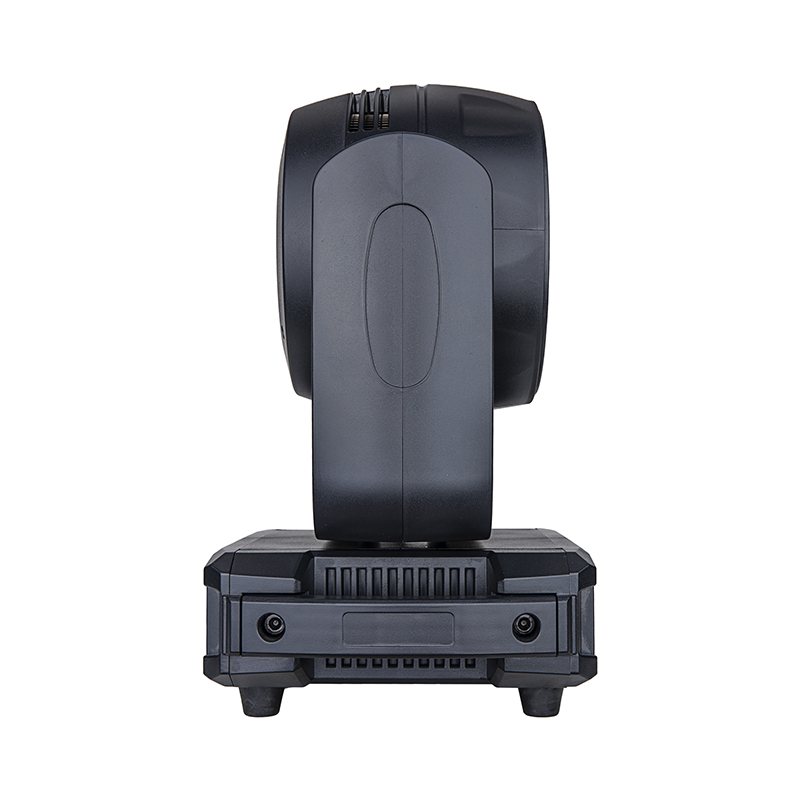

The Zoom moving head 7*40W is one of high-power led wash moving head light series. Also using Osram 40W RGBW 4in1 Led chips, this product has excellent performance in brightness. Compared to the Zoom moving head 12*40W, it is smaller in size, and it is widely used not only in large stage, but also small discos, events and clubs. The 4.5-45° smooth zoom function allows controlling the wash range freely. 0-100% linear electronic dimmer makes the color transition from light to dark naturally. In order to have better heat dissipation, we have improved the fan, which can adjust the speed according to the temperature, although it can operate normally even after working for a long time. Pixel led control makes color changes endless.
Key points:
● OSRAM 7*40W RGBW 4in1 LEDs
● Zoom angle: 4.5-45°
● Pixel LED control
● Efficient cooling system, temperature monitoring, over temperature automatic adjustment protection, less lamp damage of risk.
Specification:
LIGHT SOURCE
LED:7pcs 40W RGBW 4in1 LEDs
LED brand: Osram
LED Average Life: 50,000 h
Color temperature：2500K-8000K
POWER
Power Supply: AC110-240V 50/60 Hz
Power Consumption: 350W
EFFECT
Pixel LED control
Wash/zoom
4 Liner dimming curves
Strobe: 1-25 hz, random and pulse flash
0-100% linear electronic dimmer
OPTICAL SYSTEM
Beam Angle: 4.5°-45° Electronic Zoom Range
CONTROL
Control Mode: DMX512/master-slave/sound/auto
DMX channel: 11CH/17CH/18CH/38CH
Pan/Tilt: 540/270°
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
DATA
Power: PowerCon connection in & out
DMX: 3pin or 5pin in & out
HANGING SYSTEM
With fast-lock omega clamps (1/4 turn) on the base
WEIGHT & DIMENSION
Weight: 7.5kgs
Dimension: 240*300*405mm
