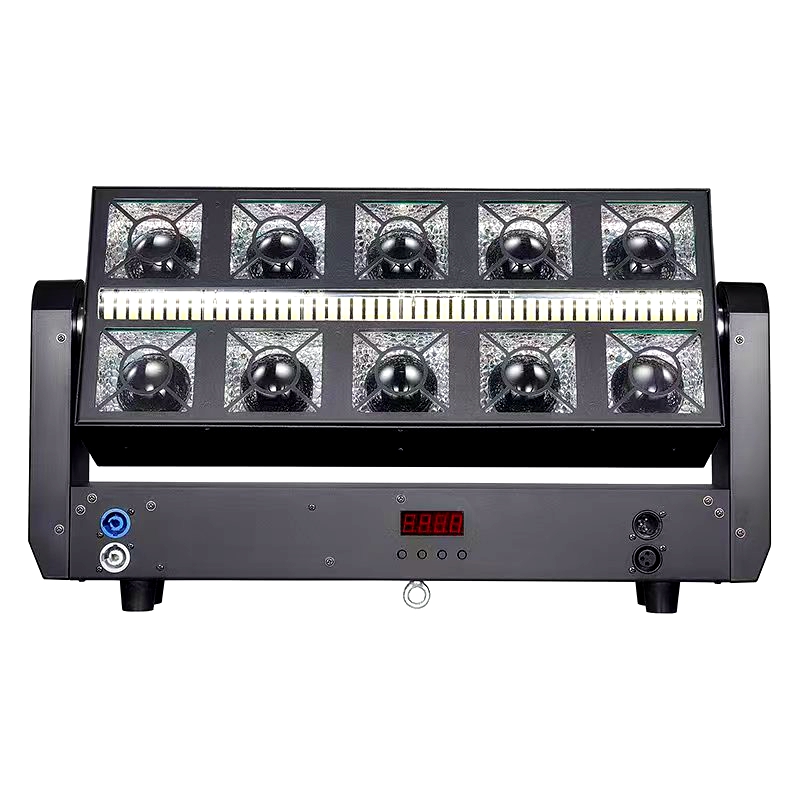

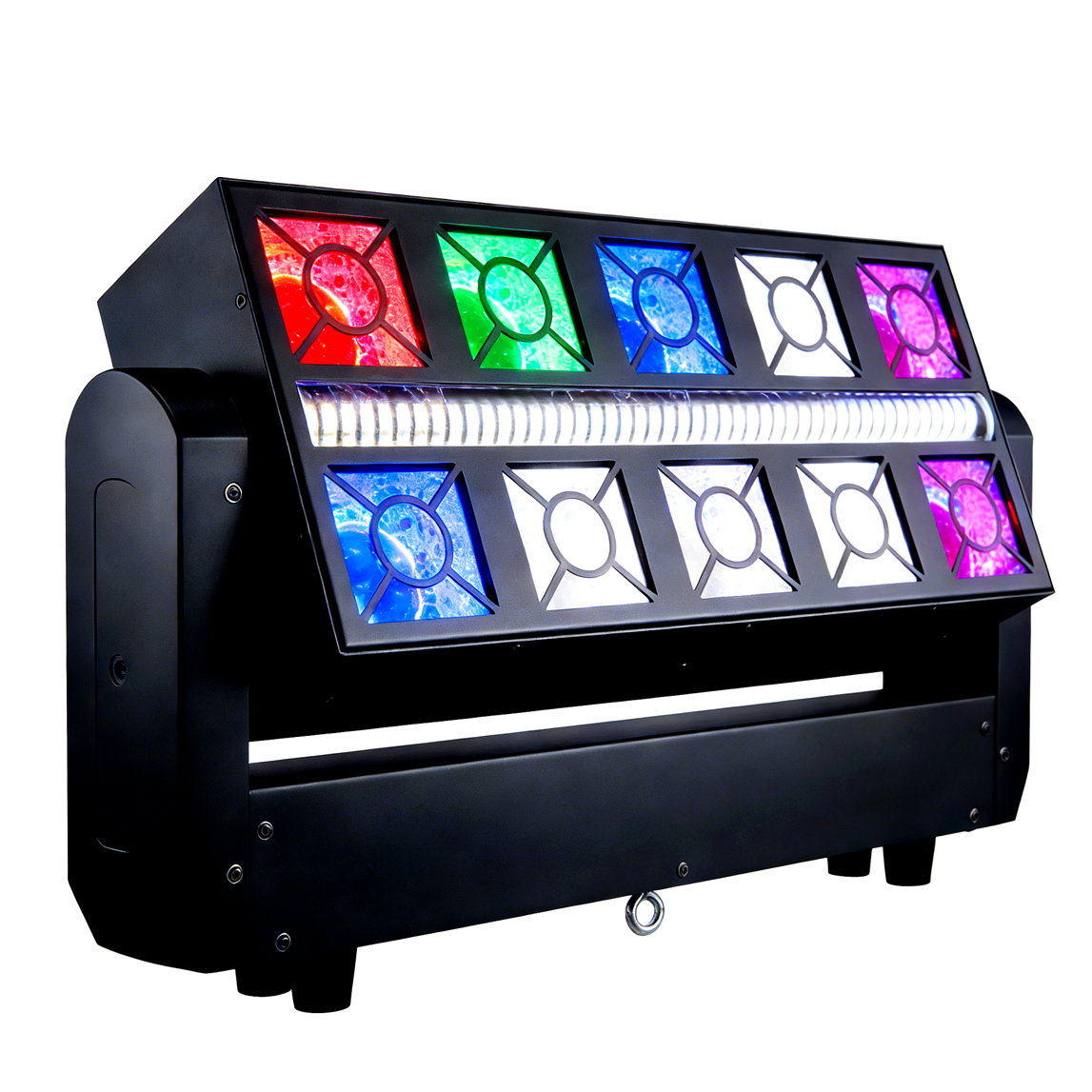

The ELS-10×25W+W is a multi-functional LED moving head that combines beam, wash, and strobe effects in a single compact fixture. Featuring 10 high-power RGBW beam LEDs, 160 RGBYA wash LEDs, and 96 white strobe LEDs, this unit delivers dynamic lighting with smooth color mixing, sharp beams, and intense strobe flashes. With DMX512, Master/Slave, Auto, and Sound-Active control, it’s perfect for stage shows, clubs, and events.
Key Features:
- 10 × 25W RGBW Beam LEDs (4-in-1 for vibrant colors & bright beams)
- 160 × 0.3W RGBYA Wash LEDs (5-color mixing for smooth coverage)
- 96 × 1W White Strobe LEDs (high-impact flashing effects)
- Multiple Control Modes (DMX512, Master/Slave, Auto, Sound-Active, RDM)
- Selectable DMX Channels (13/29/113 for flexible programming)
- Long LED Lifespan (>60,000 hours)
- Compact & Lightweight (10.5kg, easy to rig)
Specifications:
Light Source
Beam LEDs: 10 × 25W RGBW 4-in-1 (high-intensity beams)
Wash LEDs: 160 × 0.3W RGBYA (Red, Green, Blue, Yellow, Amber)
Strobe LEDs: 96 × 1W White (fast-response strobe)
LED Lifespan: >60,000 hours
Power
Input Voltage: AC 100-240V, 50/60Hz
Rated Power: 350W
Power Connector: Blue/White terminal block
Control
Control Modes: DMX512, Master/Slave, Auto, Sound-Active, RDM
DMX Channels: 13/29/113 (selectable)
DMX Connector: 3-pin XLR (In/Out)
Physical
Tilt movement: 180°
Display: LCD Menu Display+4 buttons
Housing :Cast aluminum
Color :Black
Dimmer :0-100% linear dimmer
Strobe :0-20HZ
Dimensions (L×W×H): 590 × 210 × 255mm (Side height: 305mm)
Net Weight: 10.5kg
Gross Weight: ~11kg
Packing: 1in1 carton or 4in1 flight case
