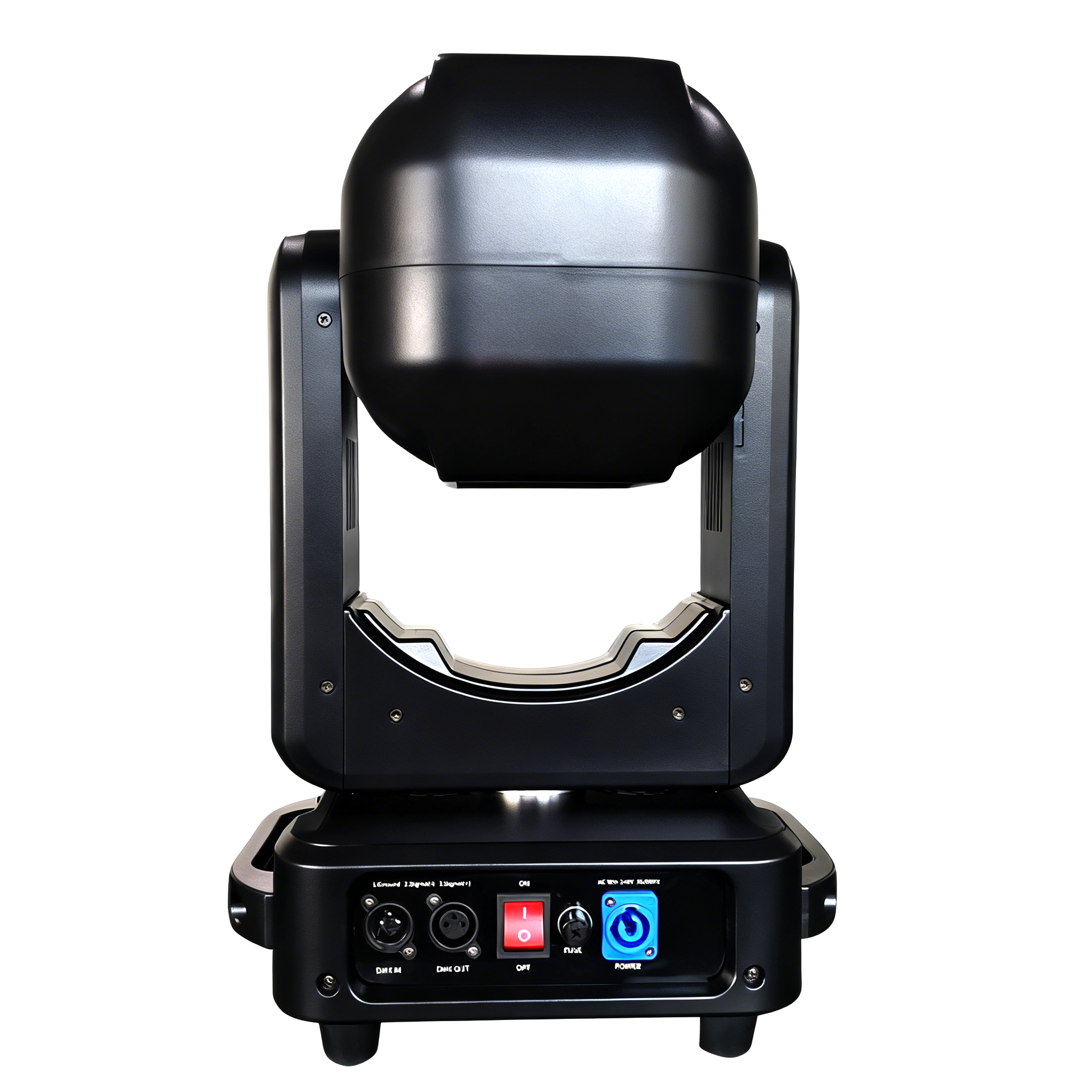

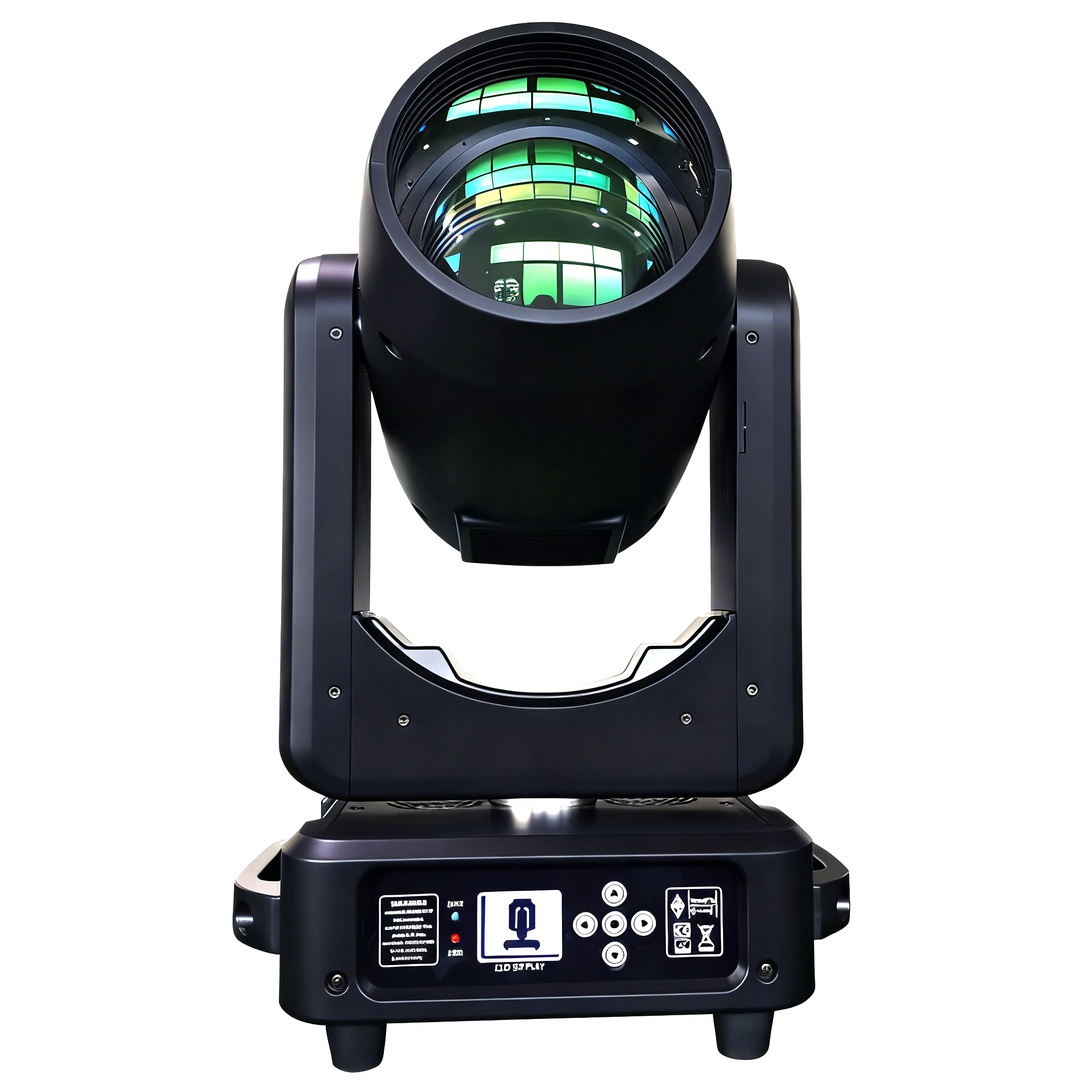

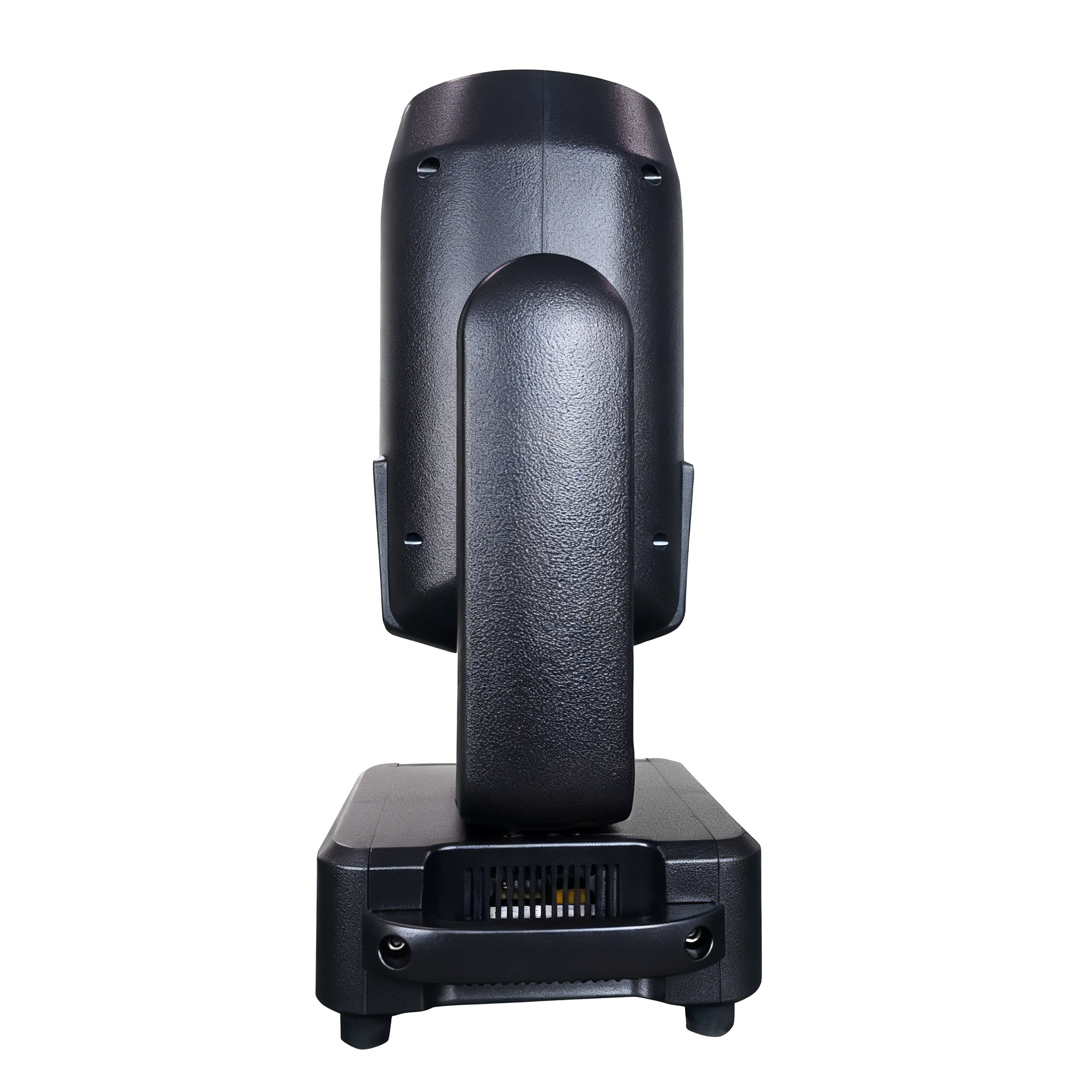

10R Beam 280 , installed 1pc of OSRAM SIRIUS HRI 280W Lamp and 3°high resolution and precise optics delivers high brightness beam effect. Pan/Tilt rotation chooses strong motors which can respond speedily and smoothly.Combined with a full complement of professional characteristics including a static gobo wheel, color wheel, two prism system (prism 1 is 8 facet prism , prism 2 is 8+16+24 facet prism), linear electronic frost, motorized linear focus, variable speed shutter/strobe, 0-100% linear dimmer.
In addition, the unique folded hanging clamp system makes this product more practical and convenient.The 1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy. It is nice choice for mobile applications or for fixed installations at outdoor show,live concert, TV show, wedding,nightclub,party and other big or small evets .
Key points:
- high power OSRAM SIRIUS HRI 280W Lamp
- 3°tight beam lens
- Fast and smooth movement ,16bit pan/tilt fine
- Excellent color mixing effect and rainbow effect
- DMX channel mode:16CH
- 13 colors HQ color wheel installed which make colorful beam effect
- High efficiency, low power consumption, long lifetime
- Low noise and efficient FAN cooling system
- Scan position memory, auto reposition after unexpected movement
- Pre-programmed strobe ,pulse strobe、oblique ascension strobe、oblique fall strobe、random strobe、strobe break effect
- Built-in programs with macro effects
- Linear electronic focus
- Linear electronic frost
- Over temperature protection management (output decreased when over heat)
- Display screen can be 180° Reversibleto fit the installation in different place
- Indoor operation temperature：-20°C～+40°C
- DMX512, master-slave and sound activated controllable or auto operation
- Auto-switching power supply that can accommodate a wide range of input voltages
Specification :
LIGHT SOURCE
Lamp : 280W Lamp
Ballast of lamp :Osram
Lamp brand :Osram
Life Span: 2000Hrs
Color Temperature: 8500K
OPTICAL SYSTEM
Lens :High precision Lens
Beam Angle:3°
POWER
Power Supply: AC 90-260V, 50/60Hz
Power Consumption: 550W
PHOTOMETRIC DATA
Lumen: 67470 lux@2m
COLOR SYSTEM
Color Wheel : 14color+half-flitter .Variable direction rainbow effect with speed adjustable
GOBO SYSTEM
Gobo wheel: 14+white
PRISM SYSTEM
Prism 1 : 8-facet prism with indexable and rotating
Prism 1 :8+16+24-facet prism with indexable and rotating
CONTROL
Control Mode: DMX512, master-slave, sound activated or auto operation,
DMX Channels:16CH
RDM available (Remote Device Management)
PHYSICAL
Display: LCD Menu Display+4 buttons
Protect Rate: IP20
Housing : Moulded fire proof ABS PC +aluminum and steel metal plates
Color :Black or White
Pan :540°
Pan resolution :16bit
Tilt :270°
Tilt :resolution :16bit
PAN/TILT reversible and scan position memory, auto reposition after unexpected movement.
Dimmer: 0-100%
Strobe: Variable strobe effect
Cooling :Efficient low noise self adjusting fan cooling system
Focus: motorized focus
Frost: electronic frost
Hanging system :2*1/4 turn fastening Omega Clamps
DATA
Power :PowerCon connection in & out
DMX : 3pin or 5pin in & out
WEIGHT & DIMENSION
Weight: 17.5 kg
Dimension: 235*330*510mm
