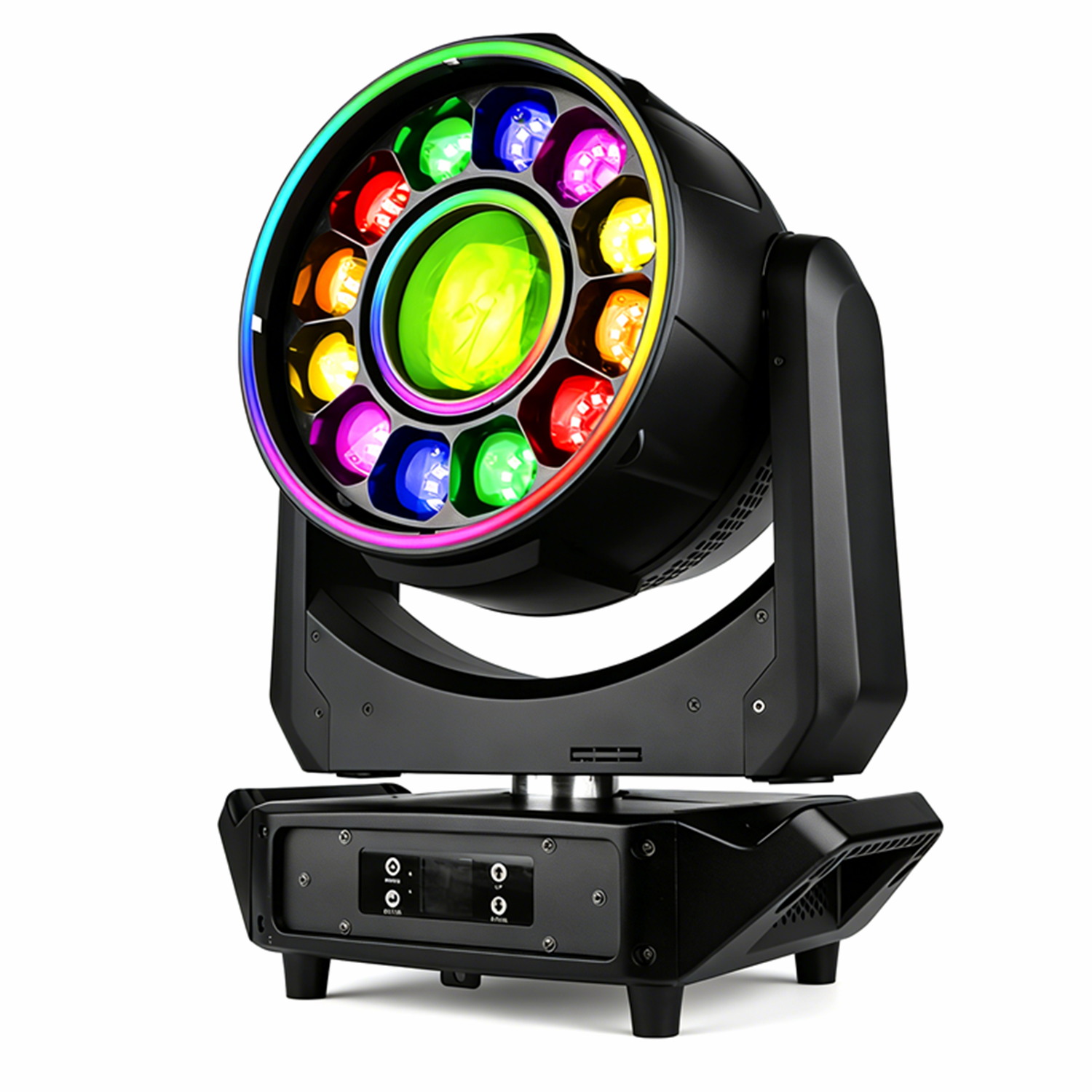

The BWASH 800 combines beam and wash features into one extraordinary luminaire for powerful effects and deep color washes. The center section is powered by a 200-Watt cool white LED and the surrounding wash section has 12, 40-Watt RGBW LEDs.
The center beam portion of BWASH 800 is equipped with a color wheel with 13 colors, a static gobo wheel with 9 patterns, 8-facet and 16-facet prisms, and a frost filter. The beam is a tight 3° beam angle and has motorized focus to sharpen images. The two prisms can be overlaid and are rotatable in either direction for amazing lighting effects.
BWASH 800’s wash section delivers a wide range of rich, deep colors and includes a zoom range from 4° to 51°, individual pixel control, CTO color temperature adjustment from 2500K to 8000K, and color macro effects, providing lighting designers with a wide range of creative options and looks.On the basis of zoom effect, BWASH 800 also adds a lens rotation function. When the beam is zoomed to the minimum, the lens rotation function is turned on at the same time, which is the super dazzling kaleidoscope effects.
Specification:
LIGHT SOURCE
Beam: 200W CW LED
Wash: 30 x 40W RGBW LED
LED brand: Osram Ostar
LED Average Life: 50,000 h
Color temperature：2500K-8000K
Total Lumen Output of Fixture :
Beam: 4,000 lumens
Wash: 19,500 lumens
POWER
Power Supply: AC110-240V 50/60 Hz
Power Consumption: 800W
EFFECT
Individual LED control
Wash/Beam/Graphic/Effects function
Bi-directional Rotating Front Lens
With“vortex”and “kaleidoscope” effects
Variable built-in dynamic effects
4 Liner dimming curves
Strobe: 1-25 hz, random and pulse flash
0-100% linear electronic dimmer
OPTICAL SYSTEM
Beam Angle :
200W LED: 3°
Zoom Range :4°-51°
CONTROL
Control Mode: DMX512, RDM, master-slave, sound activated or auto mode，Art-Net（Optional)
DMX Mode:34/82 channels
Pan/Tilt: 540/220°
Pan/Tilt Resolution: 16 bit
Dimmer Resolution: 16 bit
Colors
Linear CTO Color Correction: 2,500K-8,000K
1 Color Wheel: 13 colors, plus open
Static Gobos
1 Static Gobo Wheel:6 gobos and 3 effect gobos, plus open
Prism
2 Combinable Rotating and Indexable Prisms: 1 x 8-facet circular prism, 1 x 16-facet circular prism, rotatable in both directions
DATA

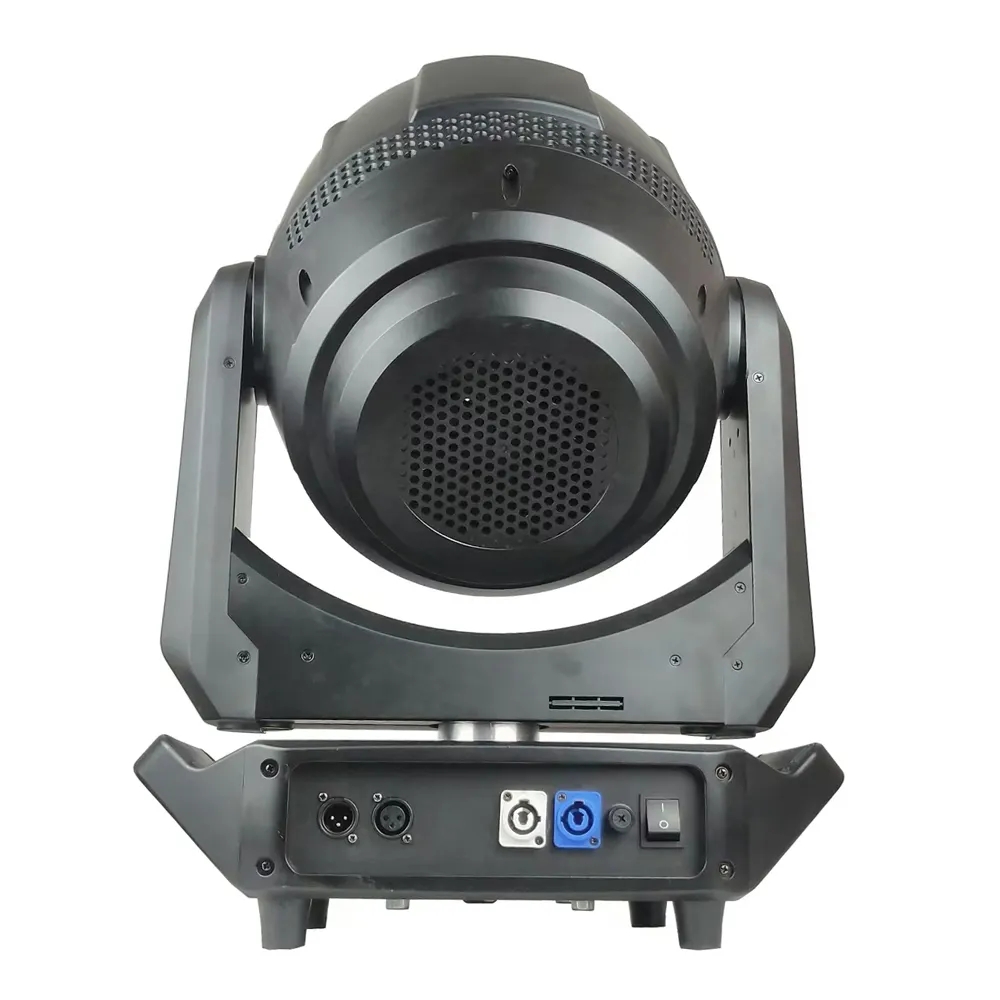

Power: PowerCon connection in & out
DMX: 3pin or 5pin in & out
HANGING SYSTEM
With fast-lock omega clamps (1/4 turn) on the base
WEIGHT
Weight: 28kgs
Dimension: 45*34*59cm
