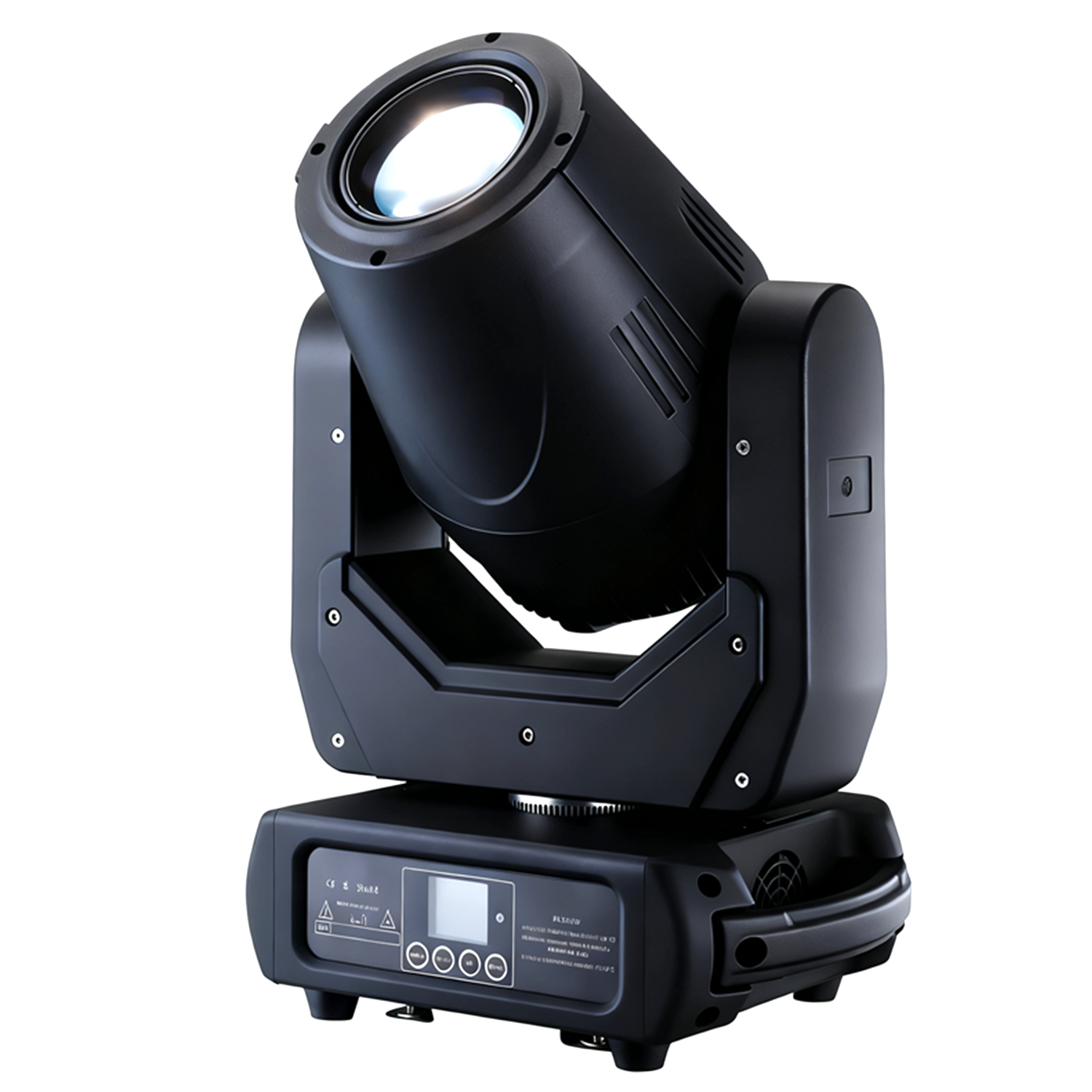

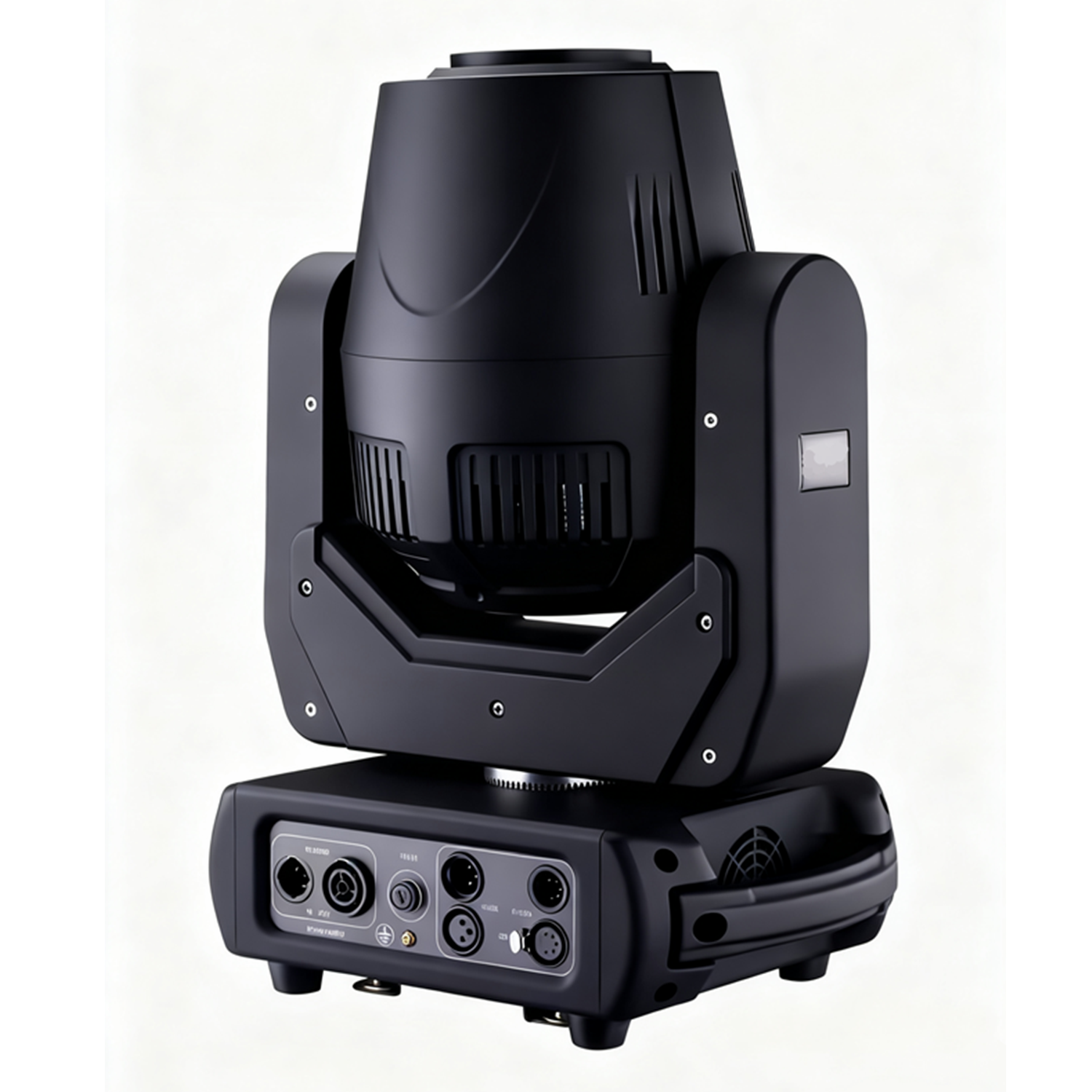

LED Beam 250 , installed 1pc of 250W white LED lamp and 6°beam angle ,output high power LED Beam .Pan/Tilt rotation chooses three-phase motor which can respond speedily and smoothly.It has a rotate Gobo wheel in 6 rotating, indexable and replaceable gobos, each gobo can work with individual color wheel to reach rainbow effect.
And a static Gobo wheel in 6gobos . It provides different kinds of variable effect by 8-facet rotating prism and 16 facet rotating prism.
The 1/4 turn fastening omega clamps, available for vertical and horizontal plug-in, make installations fast and easy. In addition,this fixture is equiped with proper LED refresh rate for flicker free operation for TV and FILM. It is nice choice for mobile applications or for fixed installations at TV studio event,small or large scare of concert ,show event etc.
Key points:
- 250W High Output White LED
- 50,000 hours lifespan and low power consumption
- 6°beam angle ,output high power LED Beam
- 13 colors HQ color wheel installed which make colorful beam effect
- Extremely quiet different working state
- High efficiency, low power consumption, long lifetime
- Low noise and efficient FAN cooling system
- Scan position memory, auto reposition after unexpected movement
- Pre-programmed strobe ,pulse strobe、oblique ascension strobe、oblique fall strobe、random strobe、strobe break effect
- Built-in programs with macro effects
- Two DMX models :17 CH
- DMX 512, master-slave and sound activated controllable or auto operation
- Colorful LCD display
- Efficient low noise fan cooling system
- POWERCON IN/OUT
- Auto-switching power supply that can accommodate a wide range of input voltages
Specification :
LIGHT SOURCE
LED : 250W White LED engine
LED brand :Lumileds
Life Span: 50000Hrs
OPTICAL SYSTEM
Lens :High precision Lens
Beam Angle:6°
POWER
Power Supply: AC 90-260V, 50/60Hz
Power Consumption: 315W
PHOTOMETRIC DATA
Lumen: 18550 lux@2m
COLOR SYSTEM
Color Wheel : 7color+half-flitter .Variable direction rainbow effect with speed adjustable
GOBO SYSTEM
Rotate Gobo wheel: 6 rotating, indexable and replaceable, each gobo can work with individual color wheel to reach rainbow effect.
Static Gobo wheel:12gobos + open
PRISM SYSTEM
Prism 1 : 8-facet prism with indexable and rotating
CONTROL
Control Mode: DMX512, master-slave, sound activated or auto operation,
DMX Channels:17CHS
PHYSICAL
Display: LCD Menu Display+4 buttons
Protect Rate: IP20
Housing : Flame-retardant thermoplastic
Color :Black
Pan :540°
Pan resolution :16bit
Tilt :270°
Tilt :resolution :16bit
PAN/TILT reversible and scan position memory, auto reposition after unexpected movement.
Dimmer: 0-100%
Strobe: Variable strobe effect
Focus: motorized focus
Frost: electronic frost
DATA

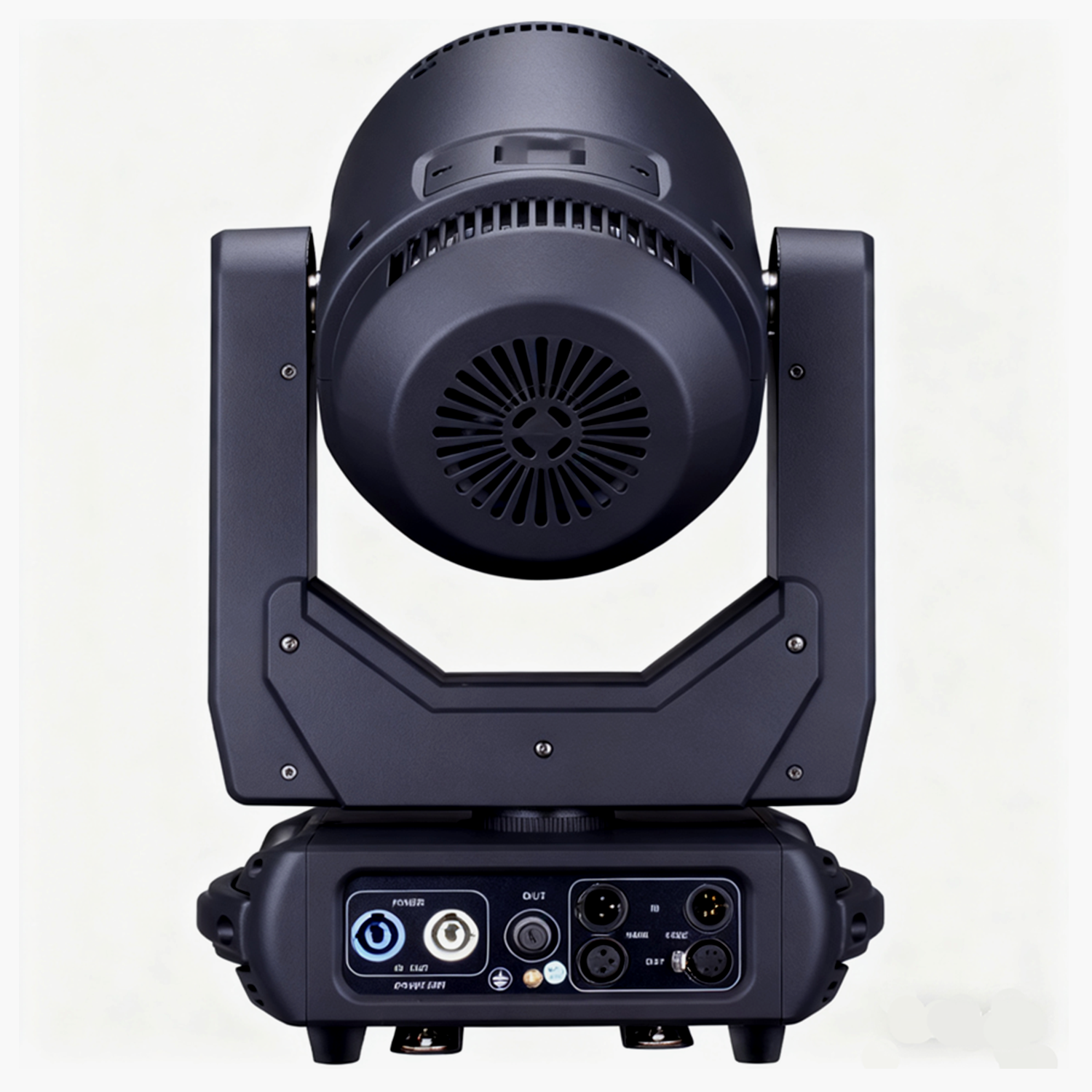

Power :PowerCon connection in & out
DMX : 3pin or 5pin in & out
WEIGHT & DIMENSION
Weight: 12.5 kg
Dimension: 33*22*48CM
